NRS Healthcare F20421 User Instructions

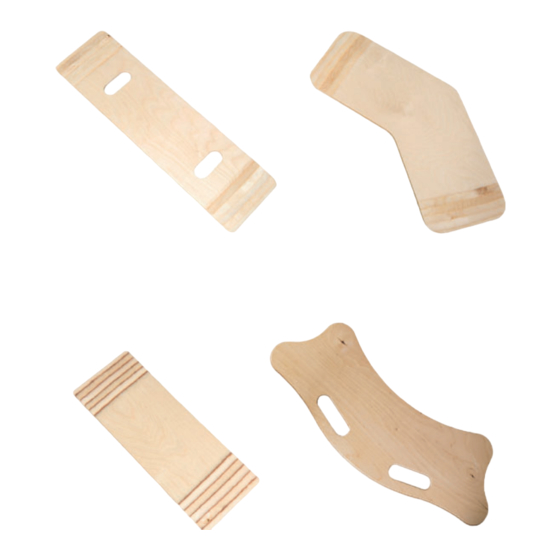

F20421 Short Transfer Board (600mm)
F20998 Curved Transfer Board
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in
a safe place for future reference.
1.

INTENDED USE

These Transfer Boards are designed to assist users transferring between two seated surfaces of similar
height eg. wheelchair to bed.
2.

MATERIAL SPECIFICATION

Birch Plywood with clear lacquer fi nish.
3.

SAFETY

WARNING: The maximum user weight must not be
more than 190Kg (30st).
DO NOT: Attempt to transfer across distances
greater than the board allows. Ensure both ends of
the board suffi ciently overlap the transfer surfaces.
NRS Healthcare recommend a minimum of 150mm.
DO NOT: Attempt to use multiple boards for a single
transfer.
Transfer surfaces should be as level as possible,
avoid slopes.
USER INSTRUCTIONS
WOODEN TRANSFER BOARD RANGE
F20433 Long Transfer Board (760mm)
M01175 Lightweight Curved Board
Maximum User Weight
4.

UNPACKING

Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
5.

IN USE

Position the transfer surfaces next to each other, at
right angles as close as possible.
Figure 1: M01175 in use example
Place the transfer board over the gap between
the two surfaces (refer to fi gure 1). Ensure it is
suffi ciently supported on both sides, a minimum of
150mm overlap.
The user can now use the board to manoeuvre from
one surface to the other.
Note: Take care to ensure fi ngers do not become
trapped under the board.
Where possible the user should push down with
their hands during transfer to lift themselves slightly
to avoid rubbing on the board. This is particularly
important where there is a loss of sensation.
Assistance from a carer may be required in cases of
severe limitation.
1
30st
190kg
