10
en | Exploded View
3
Exploded View

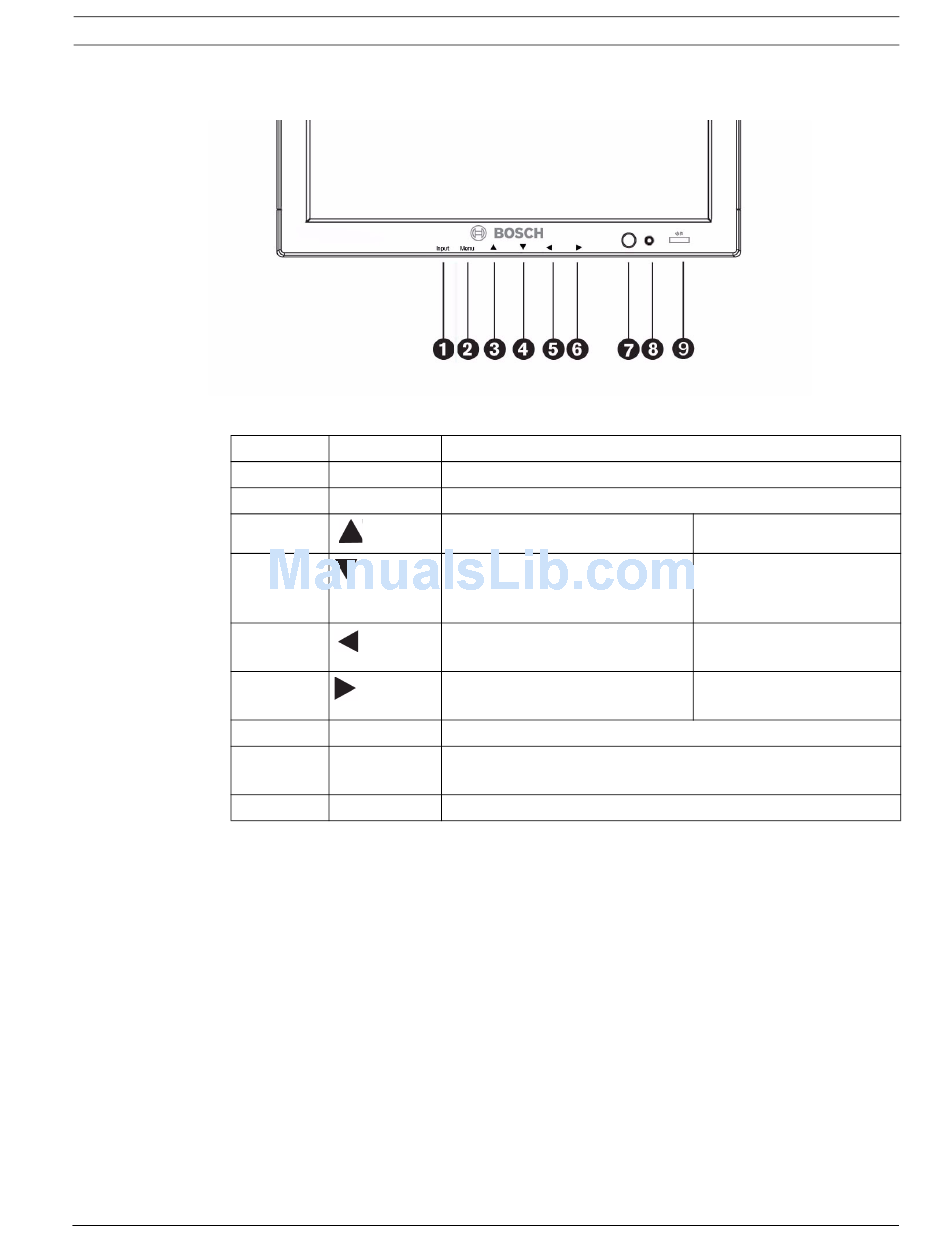

Fig. 3.1 Front Panel UML -202-90
Reference # Button
1
2
3
4
5
6
7
8
9
F01U076723 | 1.0 | 2007.09
Description
Input Button
Selects the signal to be displayed
Menu Button
Selects the on-screen display (OSD)
Adjusts the value when in the OSD Scrolls up in the OSD
Adjusts the value when in the OSD
or auto adjusts when in PC mode
Decreases the value when in the
OSD
Increases the value when in the
OSD
IR Sensor
Remote control sensor
LED Indicator Power On (green)
Power Off, Standby (red)
Power Button Display power (On/Off)
Instruction Manual
UML -202-90
Scrolls down in the OSD
Scrolls left in the OSD
Scrolls right in the OSD
Bosch Security Systems, Inc.
