24 en | Navigating the Monitor
Size (Video Mode)
NR (Video Mode)
PC (PC Mode)
7.6

PIP Menu

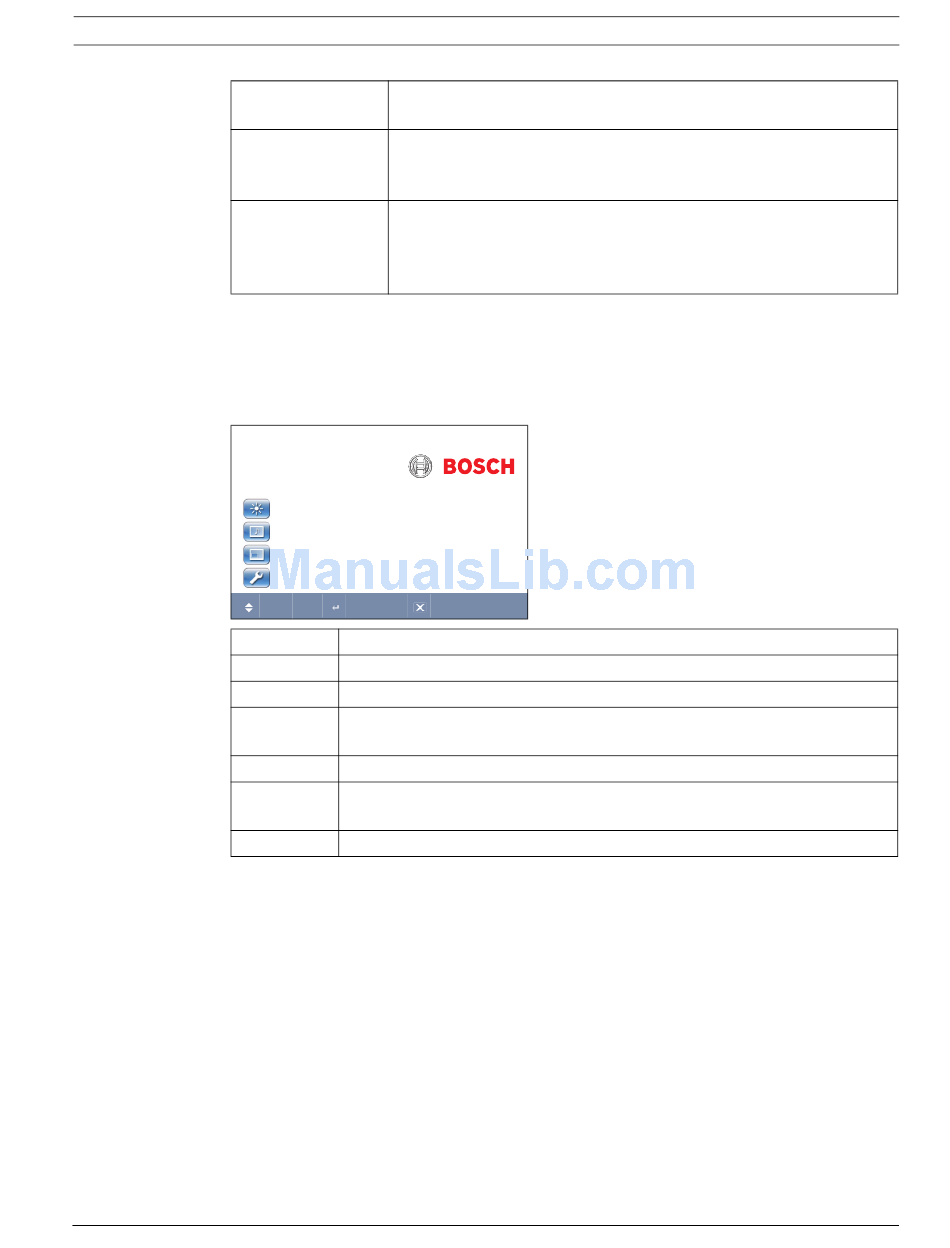

To access the PIP menu, press the Menu button on the front panel of the monitor, then press
the left and right arrows to select the PIP icon. Press the up and down arrows to select the
PIP submenu.
PIP
Submenu
PIP
Input Source
Size
Position
Swap
Sound Select Main and Sub (only available when PIP is enabled)
F01U076723 | 1.0 | 2007.09
Selects the Aspect Ratio Control mode. Choices are: 4:3, Panorama,
Zoom1, Zoom2, Wide.
Turns Noise Reduction on or off. Turning this feature OFF reduces the
video quality slightly, but improves the monitors response time to
MOTION.
Selects between Auto or manual adjustment of the desktop screen.
Auto Adjust: Auto synchronizes screen to graphics adaptor.
Manual choices are: Phase (range 0-100), H-Position (range 0-100), V-
Position (range 0-100), Frequency (range 0-100).
PIP On
Input Source AV1
Size
Position
Swap
Sound Select Main
:Move :Input :Menu
Definition
On and Off
AV1, AV2, S-video
Enables 3 screen sizes: full screen side by side, 4:3 side by side, and 4:3 cor-
ner (177 mm [3.03 in.] diagonal).
Enables 4 positions: bottom right, top right, bottom left, top left.
Alternates between the main and sub picture for the PIP mode. Continuously
press to change selection.
Instruction Manual
UML -202-90
Bosch Security Systems, Inc.
