Bosch UML-262-90 User Manual

Full hd lcd monitors.
Hide thumbs

Advertisement

Full HD LCD Monitors
UML-262-90 | UML-422-90
en
User's Manual

Advertisement

   Related Manuals for Bosch UML-262-90

   Summary of Contents for Bosch UML-262-90

  • Page 1

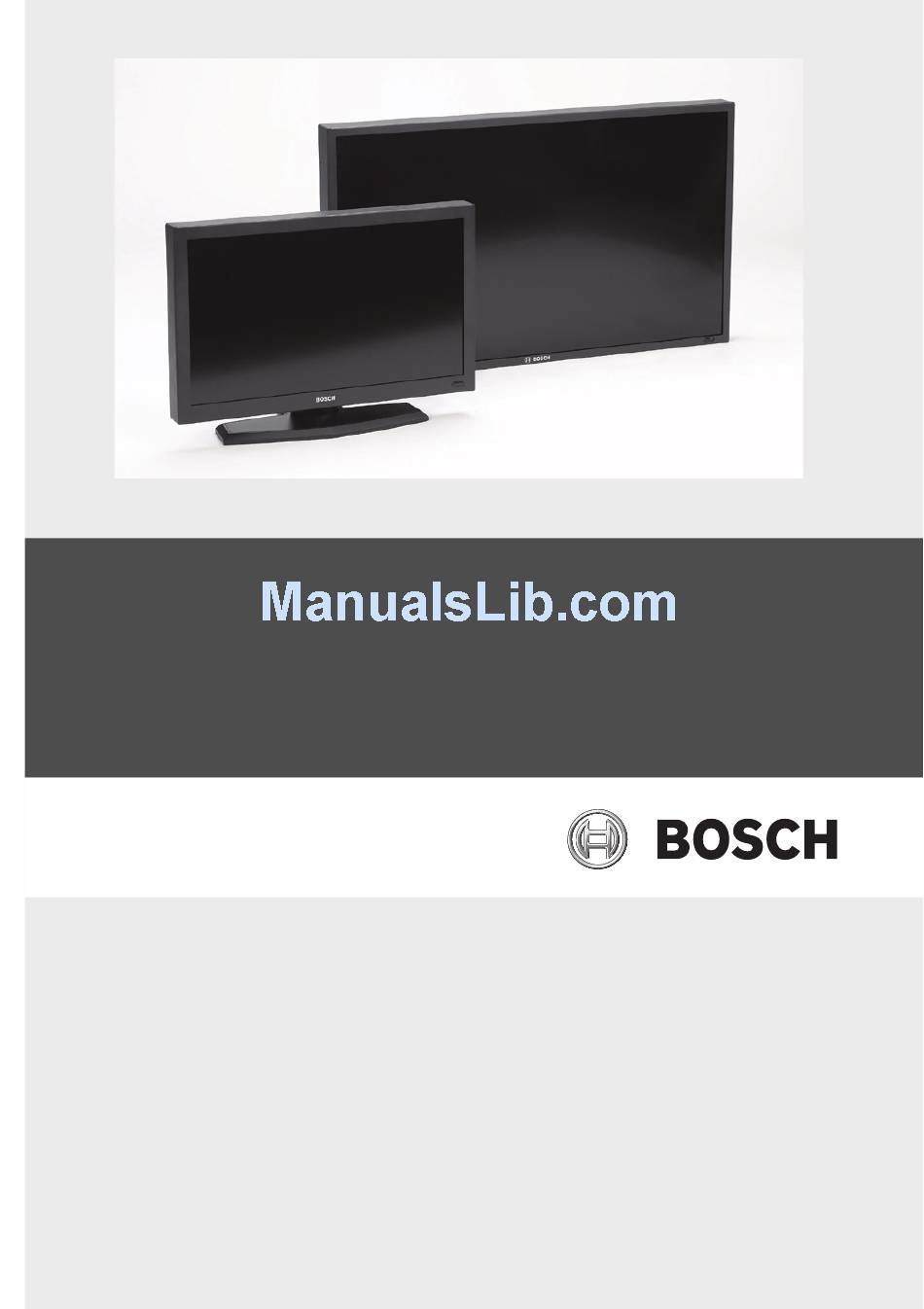

    Full HD LCD Monitors UML-262-90 | UML-422-90 User’s Manual...

  • Page 3: Table Of Contents

    Important safety instructions Safety precautions Important notices Customer Support and Service Unpacking Parts List Monitor Panels UML-262-90 Front Control Panel UML-262-90 Bottom Panel UML-422-90 Front Panel UML-422-90 Rear Control Panel UML-422-90 Bottom Panel Remote Control Remote Control Battery Installation Description...

  • Page 4

    Navigating the Front Panel Navigating the Monitor On-screen Display (OSD) On-screen Display Menus Custom Menu Picture/Sound Menu PIP Menu Setup Menu Power Management Power Consumption LED Indicator Troubleshooting Maintenance Technical Specifications F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 5: Safety

    Lightning - For added protection during a lightning storm, or when leaving this unit unattended and unused for long periods, unplug the unit from the wall outlet and Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 6

    12. Servicing - Do not attempt to service this unit yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 7

    17. Attachments, changes or modifications - Only use attachments/accessories specified by the manufacturer. Any change or modification of the equipment, not expressly approved by Bosch, could void the warranty or, in the case of an authorization agreement, authority to operate the equipment.

  • Page 8: Safety Precautions

    If it is needed to open the housing for servicing and/or other activities, use this all-pole switch as the main disconnect device for switching off the voltage to the unit. F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 9

    Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic...

  • Page 10

    Power resupply - If the unit is forced to power down due to exceeding the specified operating temperatures, disconnect the power cord, wait for at least 30 seconds, and then reconnect the power cord. F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 11

    CCTV system. Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.

  • Page 12

    The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 13

    (Comment identifier et résoudre les problèmes d’interférences de radio et de télévision). Cette brochure est disponible auprès du U.S. Government Printing Office, Washington, DC 20402, États-Unis, sous la référence n° 004-000-00345-4. Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 14

    CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING-RELATED FUNCTIONS OF THIS PRODUCT. Copyright This manual is the intellectual property of Bosch Security Systems and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.

  • Page 15: Customer Support And Service

    Customer Support and Service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. Service Centers...

  • Page 16

    Fax: 86 (0) 756 7631710 E-mail: customer.service@cn.bosch.com Warranty and more information For additional information and warranty queries, please contact your Bosch Security Systems representative or visit our website at www.boschsecurity.com. F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 17: Unpacking

    Verify that all the parts listed in the Parts List below are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. The original packing carton is the safest container in which to transport the unit and must be used if returning the unit for service.

  • Page 18: Monitor Panels

    IR Sensor and Receives command signals from the remote control. LED Indicator Indicates the operating status of the monitor: – Power On (green) – Power Off, Standby (red) F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 19: Uml-262-90 Bottom Panel

    Description IR Sensor and Receives command signals from the remote control. LED Indicator Indicates the operating status of the monitor: – Power On (green) – Power Off, Standby (red) Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 20: Uml-422-90 Rear Control Panel

    Serves as the Enter function for OSD menus. Increases audio volume. Power Display power (On/Off) LED Indicator Indicates the operating status of the monitor: – Power On (green) – Power Off, Standby (red) F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 21: Uml-422-90 Bottom Panel

    Video 1 (AV1) Out DVI-2 In Video 2 (AV2) Out DVI-1 In Video 2 (AV2) In RS-232 In (for firmware updates) Trigger Input VGA in Audio In (Left/Right) S-Video In Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 22: Remote Control

    | Monitor Panels Full HD LCD Monitors Remote Control Figure 3.6 Remote Control Detail F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 23

    Selects DVI2 mode. Selects DVI1 mode. S-Video Selects S-Video mode. MENU Displays the OSD Main menu. Press to return to the Main menu from anywhere in the OSD menus. (no function) Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 24: Remote Control Battery Installation

    Slide the battery cover back into place. Figure 3.7 Remote Control Battery Placement Note: Replace batteries when required or at least once a year. Dispose of used batteries properly. F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 25: Description

    Full HD LCD Monitors Description | en Description The Bosch High Performance Family of LCD monitors display PAL or NTSC standard color pictures in CCTV systems. The monitors include: two (2) looping Composite Video BNC connector inputs, one (1) RCA audio input (left/right), and one (1) Y/C (S-Video) input using a 4-pin mini-DIN.

  • Page 26: Power

    Power Model No. Rated Voltage Voltage Power at Rated Sync Format Range Voltage UML-262-90 120/230 VAC 100 to 240 V < 70 W NTSC/PAL 50/60 Hz UML-422-90 120/230 VAC 100 to 240 V < 210 W NTSC/PAL 50/60 Hz F.01U.172.600 | 1.0 | 2010.10 User’s Manual...

  • Page 27: Installing The Monitor

    To prevent overheating, ensure that the ventilation openings on the rear of the monitor are not covered. Mounting the Monitor The UML-262-90 and the UML-422-90 are designed for use on a desktop or mounted to a wall or rack. 5.2.1...

  • Page 28

    Figure 5.1 Adjusting the Viewing Angle (UML -262-90) UML-422-90 The desktop stands (item 1, below) can be installed on the rear panel of the monitor for a desktop application. Figure 5.2 Installing Desktop Stands (UML -422-90) F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 29: Wall Mount Installation

    This monitor can be wall-mounted using the mounting holes and a suitable wall mount or swivel/tilt mount. Refer to the figures below for the dimensions of the mounting holes on a UML-262-90 and a UML-422-90 monitor. CAUTION! Use a UL-listed mounting system that is rated to support the following weight of the specific monitor (without stand): –...

  • Page 30: Connecting The Composite Video Signal To The Monitor

    Figure 5.11). Note: To select between AV1 and AV2, press the Enter or Input button; then press the Up or Down arrow key on the front of the monitor. F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 31: Connecting The Y/c (s-video) Signal To The Monitor

    There is one (1) set of stereo audio connectors for audio input, located on the rear panel. This audio input is not associated with any input terminals on the rear panel, and can be freely connected to any audio input. Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 32: Connecting The Pc Signal To The Monitor

    Red Video Red Ground Ground Green Video Green Ground SDA (for DDC) Blue Video Blue Ground H-Sync or H+V Sync Ground V-Sync Ground Signal Cable Detect SCL (for DDC) F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 33: Connecting An Alarm Trigger

    The monitor, then, switches the input to display the video from the Dinion camera and sounds a buzzer. Route the coax cable from the Dinion Video output to the AV1 input of the UML monitor. Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 34

    Trigger Input Buzzer Trigger Time Trigger Option High Move Enter Enter Exit Press the Menu button three (3) times to exit the menu and to return to the video display. F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 35: Single / Multiple Monitor Configuration

    Full HD LCD Monitors Installing the Monitor | en Single / Multiple Monitor Configuration Figure 5.10 Single Monitor Configuration Description Description Video Camera 3 AV1 Out AV1 In Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 36

    | Installing the Monitor Full HD LCD Monitors Figure 5.11 Multiple Monitor Configuration Ref Description Video Camera AV1 In AV1 Out F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 37: Navigating The Monitor

    Navigating the Monitor Navigating the Front Panel Use the front panel to make any necessary OSD adjustments to the UML-262-90 and the UML-422-90. See the figure below for an explanation of the front panel. Figure 6.1 UML -262-90 Control Panel Buttons Figure 6.2 UML -422-90 Control Panel Buttons...

  • Page 38: Navigating The Monitor On-screen Display (osd)

    Full HD LCD Monitors Navigating the Monitor On-screen Display (OSD) The UML-262-90 and the UML-422-90 have two (2) modes: Video and PC. The LCD is programmed through the on-screen display (OSD) menus and submenus where an operator can select operating parameters. To access the OSD menus, press the Menu button on the control panel or on the remote control.

  • Page 39: On-screen Display Menus

    Enables user to Reset the factory default settings and to adjust the Language, OSD Tone, Blue Screen, Key Lock, Trigger, Auto Switch, Display Wall (UML-422-90 only), and the Image Retention settings. Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 40: Custom Menu

    Contrast Color Tint Sharpness Backlight Move Enter Enter Exit Table 6.1 Custom Menu (Video Mode) Custom Brightness Contrast Backlight Move Enter Enter Exit Table 6.2 Custom Menu (PC Mode) F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 41: Picture/sound Menu

    Menu button again to exit the OSD. Picture/Sound Picture Mode Custom Color Tone 6500°K Audio Source Audio Mute Volume Size Full Overscan 3D Comb Move Enter Enter Exit Table 6.3 Picture/Sound Menu (Video Mode) Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 42

    Selects between Auto or Manual adjustment of the desktop screen. Auto Adjust: Auto synchronizes screen to graphics adaptor. Manual choices are: Phase (range 0-32), H-Position (range 0-100), V-Position (range 0-100), and Frequency (range 0-32). F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 43

    Turns Noise Reduction On or Off. Turning this feature OFF reduces the Mode) video quality slightly, but improves the monitor’s response time to MOTION. 3D Comb Enables or disables the 3D comb filter. (Video Mode) Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 44: Pip Menu

    Adjusts the position of the sub picture on the main picture. Press the arrow keys to make adjustments. PIP Swap Alternates between the main and sub pictures for the PIP mode. Press continually to change the selection. F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 45: Setup Menu

    Up and Down Arrow buttons to select a submenu. When finished, press the Menu button to save any changes, then press the Menu button again to exit the OSD. Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 46

    Trigger Input function) is displayed. Once the time expires, the monitor automatically switches back to the last viewed input. Trigger Option: Sets the trigger signal type to N/C (normally closed), N/O (normally open), High (2~5V) or Low (0~0.6V). F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 47

    To disable the Key Lock feature using the control panel buttons, press and hold both the Input and the Menu buttons until the monitor displays the Key Unlocked message. Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 48: Power Management

    The power management feature of the monitor is comprised of these stages: Mode LED Color Monitor Operation Green Normal operation UNSUPPORTED MODE Green Normal operation but the screen displays an error message. POWER OFF Not operational F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 49: Troubleshooting

    1024 x 768; 60/75 Hz – 1280 x 768; 60 Hz – 1280 x 960; 60 Hz – 1280 x 1024; 60/75 Hz – 1366 x 768; 60 Hz Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 50: Maintenance

    Ketone type materials – Ethyl alcohol – Ethyl acid – Toluene – Methyl chloride – Ammonia Use of these materials may permanently damage the polarizer due to a chemical reaction. F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 51: Technical Specifications

    (43.9 x 27.8 x 10.8 in.) Weight 14 kg (30.86 lb) 25 kg (55.12 lb) Electric Ratings 24 VDC, 5 A (monitor) 120/230 VAC, 50/60 Hz 120/230 VAC, 50/60 Hz (power adapter) Bosch Security Systems, Inc. User’s Manual F.01U.172.600 | 1.0 | 2010.10...

  • Page 52

    | Technical Specifications Full HD LCD Monitors F.01U.172.600 | 1.0 | 2010.10 User’s Manual Bosch Security Systems, Inc.

  • Page 54

    Bosch Security Systems, Inc. www.boschsecurity.com © Bosch Security Systems, Inc., 2010...
