Navigating the Monitor

7.1

Navigating the Front Panel

Use the front panel to make any necessary OSD adjustments to the UML-202-90. See the fig-
ure below for an explanation of the front panel.

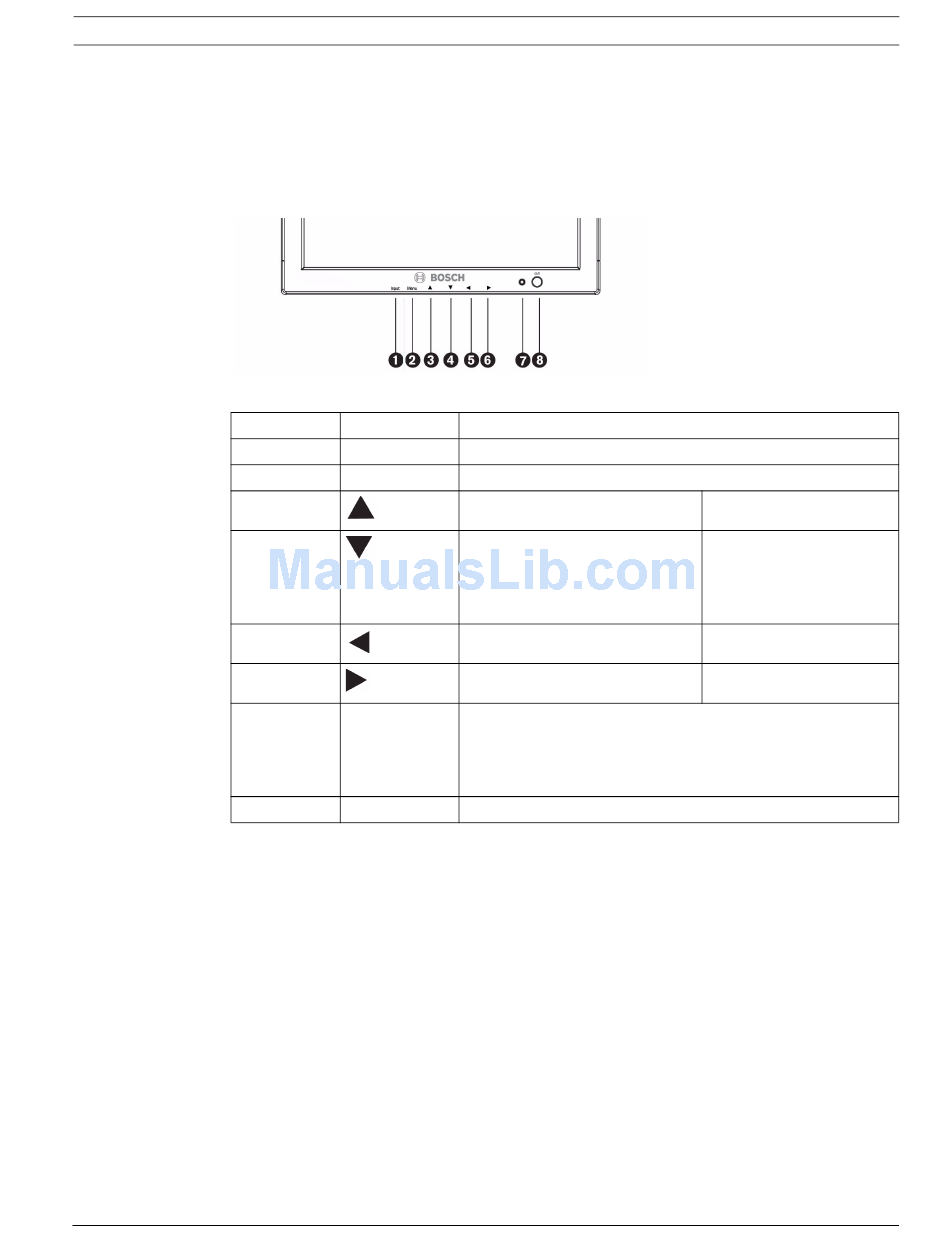

Fig. 7.1 Front Panel Buttons
Reference
1
2
3
4
5
6
7
8
F01U076723 | 1.0 | 2007.09
Button Description
Input Button Selects the signal to be displayed
Menu Button Selects the on-screen display (OSD)
Performs an Autoset when con-
nected to the VGA input, which
automatically adjusts the display
to match the graphics adapter.
Decreases the value
Increases the value
LED Indicator Power On (green)
Standby, Suspend, Active Off (flashing red)
Unsupported mode (green)
Power Off (red)
Power Button Display power (On/Off)
Instruction Manual
UML -202-90
Scrolls up in the OSD
Scrolls down in the OSD
Scrolls left in the OSD
Scrolls right in the OSD
