CCTV | UML Series 17-, 19-, 20-inch High-performance LCD Flat Panel Monitors

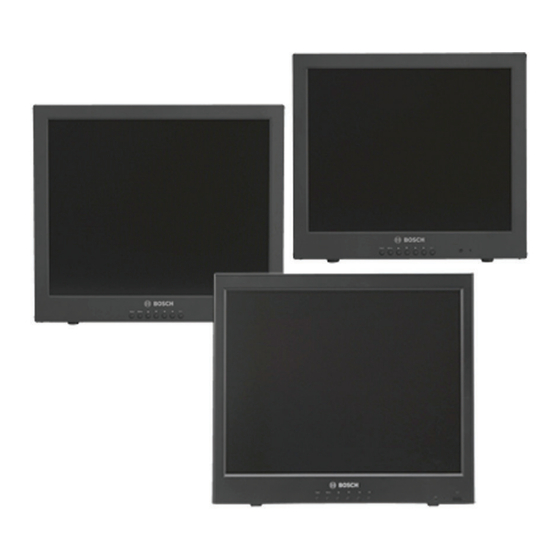

UML Series 17-, 19-, 20-inch High-
performance LCD Flat Panel Monitors
The Bosch family of high-performance LCD monitors are
high-resolution (SXGA / UXGA), high-performance liquid
crystal display (LCD) video display monitors. Available in
an ergonomic and aesthetically pleasing design, these
state-of-the- art monitors include a color thin film
transistor (TFT) active matrix LCD panel. Designed for the
professional CCTV security marketplace, the Bosch High-
performance LCD monitors include two looping
composite video inputs, two looping audio inputs and one
looping Y/C input.
▶ High-resolution–500 TVL, 1600 x 1200 (UML-202-90)
or 1280 x 1024 (UML-192-90 and UML-172-90)–image
▶ Picture-in-Picture or split screen function for viewing
video on the PC screen
▶ Analog RGB, digital DVI, and digital HDMI inputs
▶ Two (2) composite BNC inputs and loop-through
outputs
▶ Y/C (S-video) and loop-through video and audio
inputs
▶ Long-life fluorescent backlight maintains optimal
screen brightness (300 cd/m
life
▶ 3-D comb filter and de-interlace circuitry for high
quality video
▶ Trigger and Auto Switching features allow the
monitors to change input sources
▶ Easy to use controls with remote and on-screen menu
display
▶ Front panel control lockout
Functions
Flexible interface
These monitors include an analog RGB mode, a Digital DVI
input, and an HDMI (high definition multimedia) input to
accommodate the increasing use of PCs and digital video
devices in security applications. To enhance the multi-
input capability, the monitor includes a "picture-in-
picture" function. This also enables any of the composite
video or Y/C input to be inserted into the RGB/DVI/HDMI
input display.
Features designed for the professional
A security officer can make standard adjustments to
monitor display parameters with user-friendly choices
displayed using on-screen menus (available in several
languages) and front panel controls.
For additional security, the monitor includes a front panel
lockout feature that disables the front panel control
buttons. Long-life fluorescent backlights maintain the
monitor's brightness level over time, because the LCD
monitor design avoids the brightness degradation
experienced with aging CRT-type monitors. This energy-
2
) throughout monitor
www.boschsecurity.com

Advertisement

loading

Summary of Contents for Bosch UML-172-90

  • Page 1 UML Series 17-, 19-, 20-inch High- performance LCD Flat Panel Monitors ▶ High-resolution–500 TVL, 1600 x 1200 (UML-202-90) or 1280 x 1024 (UML-192-90 and UML-172-90)–image ▶ Picture-in-Picture or split screen function for viewing video on the PC screen ▶ Analog RGB, digital DVI, and digital HDMI inputs ▶...
  • Page 2 300 cd/m2, hard-coating (3H), non-glare treatment power supply voltages from 90 to 256 VAC. Compact Contrast Ratio 1000:1 800:1 800:1 styling makes the Bosch High Performance line the color Viewing Angle 160°/160° 160°/160° 178°/178° monitors of choice for large-screen, space-constrained applications.
  • Page 3 Video 2 Composite video: two (2) BNC (1 in, 1 out) Parts Included Y/C (S-video) Two (2) mini-DIN, 4-pin (1 in, 1 out) One (1) Bosch High Performance Color LCD Flat Panel Component Y, Pb, Pr Monitor Audio PC: one (1) 1/8 in. mini phono plug...
  • Page 4: Ordering Information

    Fax: +1 585 223 9180 Fax: +31 40 2577 330 Fax: +65 6571 2698 security.sales@us.bosch.com emea.securitysystems@bosch.com apr.securitysystems@bosch.com www.boschsecurity.us www.boschsecurity.com www.boschsecurity.com © Bosch Security Systems Inc. 10 | Data subject to change without notice T4562196491 | Cur: en-US, V11, 9 Jul 2010...
