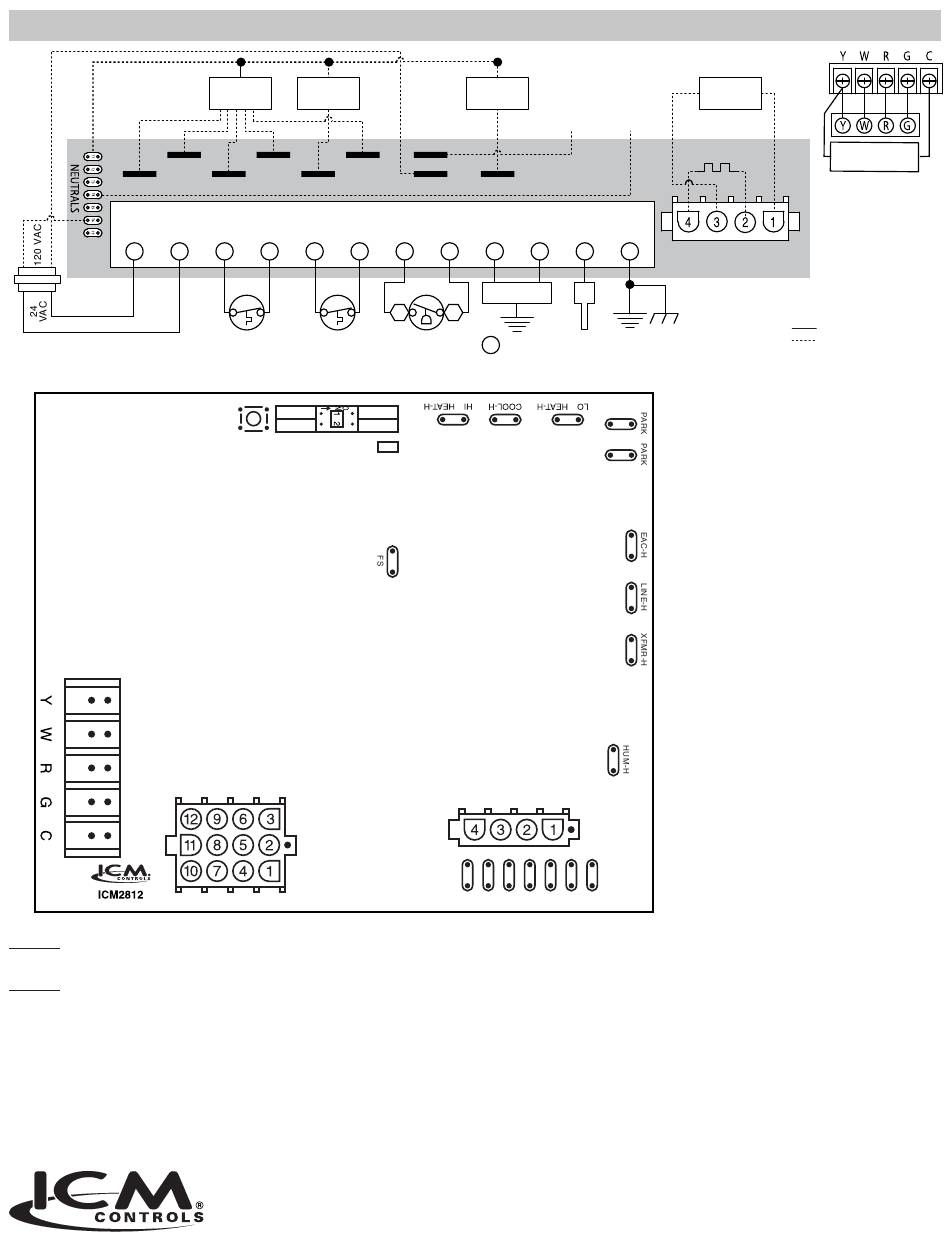

Wiring Diagram - ICM Controls ICM2812ж ICM2812-KIT Installation, Operation & Application Manual

LO HEAT-H
HI HEAT-H
24 24
VAC COM
3 6
Note 1: For American Standard/Trane, York PCLU and York P3UR furnaces: Install the black wire labeled "10" from pin 5 to pin 11 of the
12-pin harness which is connected to the furnace.
Note 2: There are some Rheem/RUUD furnace models which performed flame sense differently. Please read the information below before
testing the furnace!
1. Rheem/RUUD furnaces without a separate flame sensor will require the purchase of a Rheem flame sensor kit (62-24044-71) to be wired to
pin 7 of the 9-pin harness which is connected to the furnace.
2. Rheem/RUUD furnaces with a separate flame sensor which is NOT routed through the 9-pin harness will require removal of the flame
sensor wire from the existing connection and rewiring it to pin 7 of the 9-pin harness which is connected to the furnace.
3. Rheem/RUUD furnaces which have a separate flame sensor already routed to pin 7 of the 9-pin harness will not require this modification.
Connect the other end of the furnace harness into the ICM2812 harness labeled "2", connect the other end of this harness to the ICM2812
circuit board and connect the orange wire to the "FS" (flame sensor) terminal.
Circulator Electronic
Blower Air Cleaner
PARK PARK
COOL-H EAC-H
LIM LIM RO RO
IN OUT IN OUT
7 1 11 5
Limit Rollout
Switches Switches
(N.C.) (N.C.)
FAULT
100 sec 150 sec
2 STG 1 STG
RECALL
7313 William Barry Blvd., North Syracuse, NY 13212
(Toll Free) 800-365-5525 (Phone) 315-233-5266 (Fax) 315-233-5276

Wiring Diagram

Humidifier
120 VAC
Hot
LINE-H
XFMR-H HUM-H
PS PS MV MV
IN OUT LO HI
10 4 2 12
Gas Valve
C NO
Pressure Gas Flame
9
Switches Valve Sensor
(N.O.) Common Probe
LED1
LINE NEUTRALS
www.icmcontrols.com
Inducer
120 VAC
Neutral
Ignitor
FS GND
8
12-Pin Connections
1 = Limit switch Out
2 = Low gas valve
3 = 24 VAC hot (R)
4 = Pressure switch Out
5 = Rollout switch Out
6 = 24 VAC common (C)
7 = Limit switch In
8 = Earth ground
9 = Gas valve common
10 = Pressure switch In
11 = Rollout switch In
12 = High gas valve
4-Pin Connections
1 = Inducer blower
2 = Hot Surface Ignitor (HSI)
3 = Inducer blower neutral
4 = Hot Surface Ignitor (HSI) neutral
Compressor
Contactor
Legend:
Low voltage (24 VAC)
High voltage (120 VAC)
N.C. = Normally closed switch
N.O. = Normally open switch
LIAF268
