IKONIX LVB-2 Instruction Sheet page 8

The LVB-2 load box consists of resistors designed to induce a
• The Check Point knob position determines which
resistor is set in the LVB-2
• Each check point has a PASS and FAIL condition.
• For a list of all PASS and FAIL condition test settings,
refer to the LVB-2 Technical Specifications table.
• There is no PASS condition for the 7.5kΩ check point.
• There is no FAIL condition for the 6.37MΩ check point

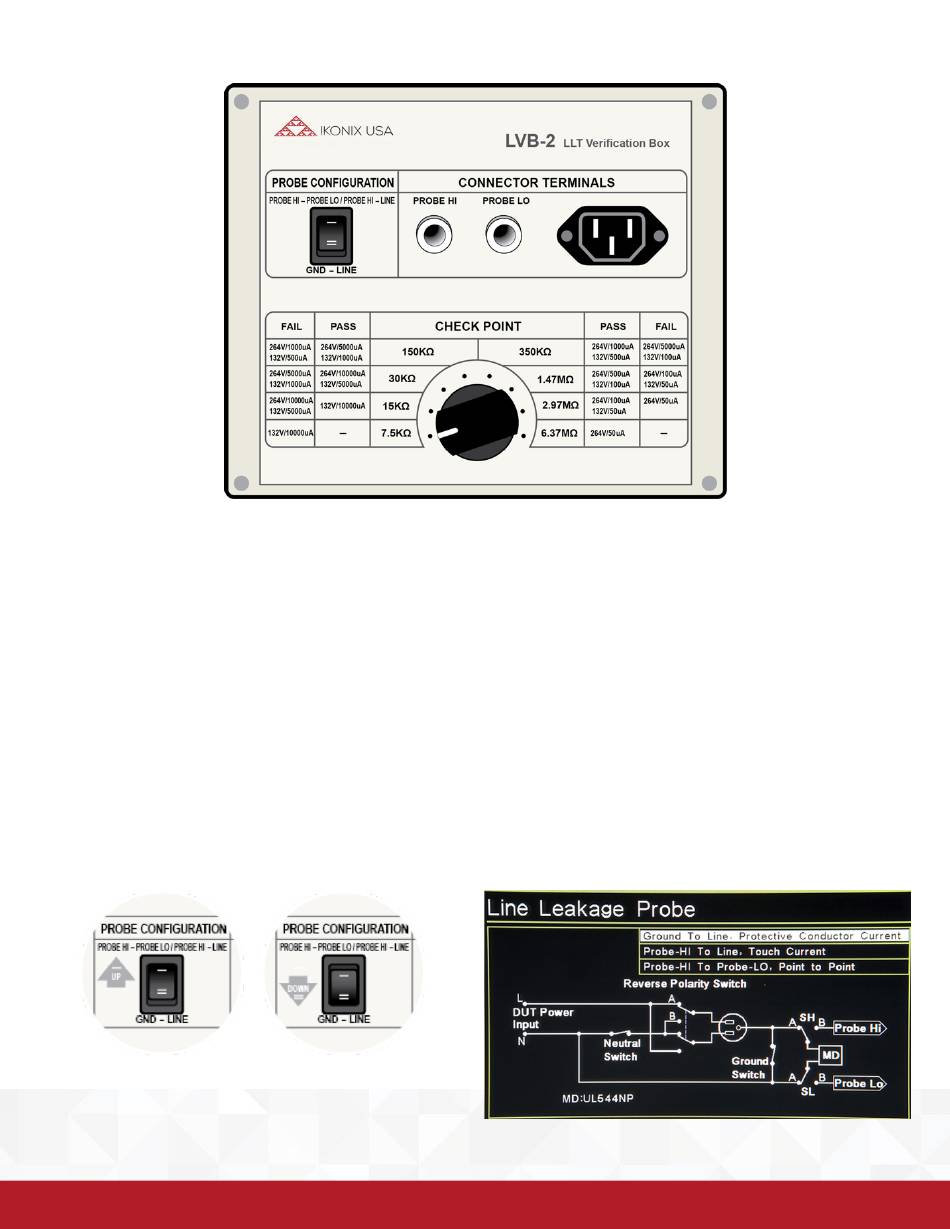

The Probe Configuration switch can be set to two different positions depending on the verification type.
Figure 2 shows the two different settings of the switch. This setting should match with the Probe Configuration setting on the Leakage
Current test instrument.
An example of the Probe Configuration setting on the instrument is shown in Figure 3 along with the corresponding leakage test type.
On the test instrument the Probe Configuration is programmed depending on the type of leakage test needed to be performed.
Figure 2 – Probe Configuration Switch Positions
© Ikonix USA
PASS or FAIL condition:
Figure 3 - Instrument Probe Configuration Setup
