Bogen VRS1 Installation Instructions

VANDAL-RESISTANT SPEAKER
with CALL-BUTTON
Model VRS1
DESCRIPTION
The Bogen VRS1 is a wall-mountable, vandal-resistant speaker with call-button designed for use with Bogen Multicom,
Quantum, and Multi-Graphic communication systems. It consists of an 8-ohm loudspeaker, 25V transformer (tap fixed at
1/2 watt), and call-in switch mounted to a heavy-gauge stainless steel plate. The call-in switch can be wired to provide
either momentary or latching operation. The plate may be mounted to a 2-1/2" deep Gang Box (4-1/2" W x 6-13/16" H),
such as Steel City (H2BD-3/4 &1), with one-way security screws.
INSTALLATION
A shielded-pair plus one-conductor cable is required, such as in West Penn #358 or Belden #8724. The unshielded
conductor should be used for the "A" Terminal (Red) connection, the shield conductor for the "G" Terminal (Blue)
connection, and the "S" Terminal (Black & Yellow) connections should use the two shielded conductors. Refer to the
appropriate system installation instructions to terminate the cable at the system control center.
VRS1 Wire Color

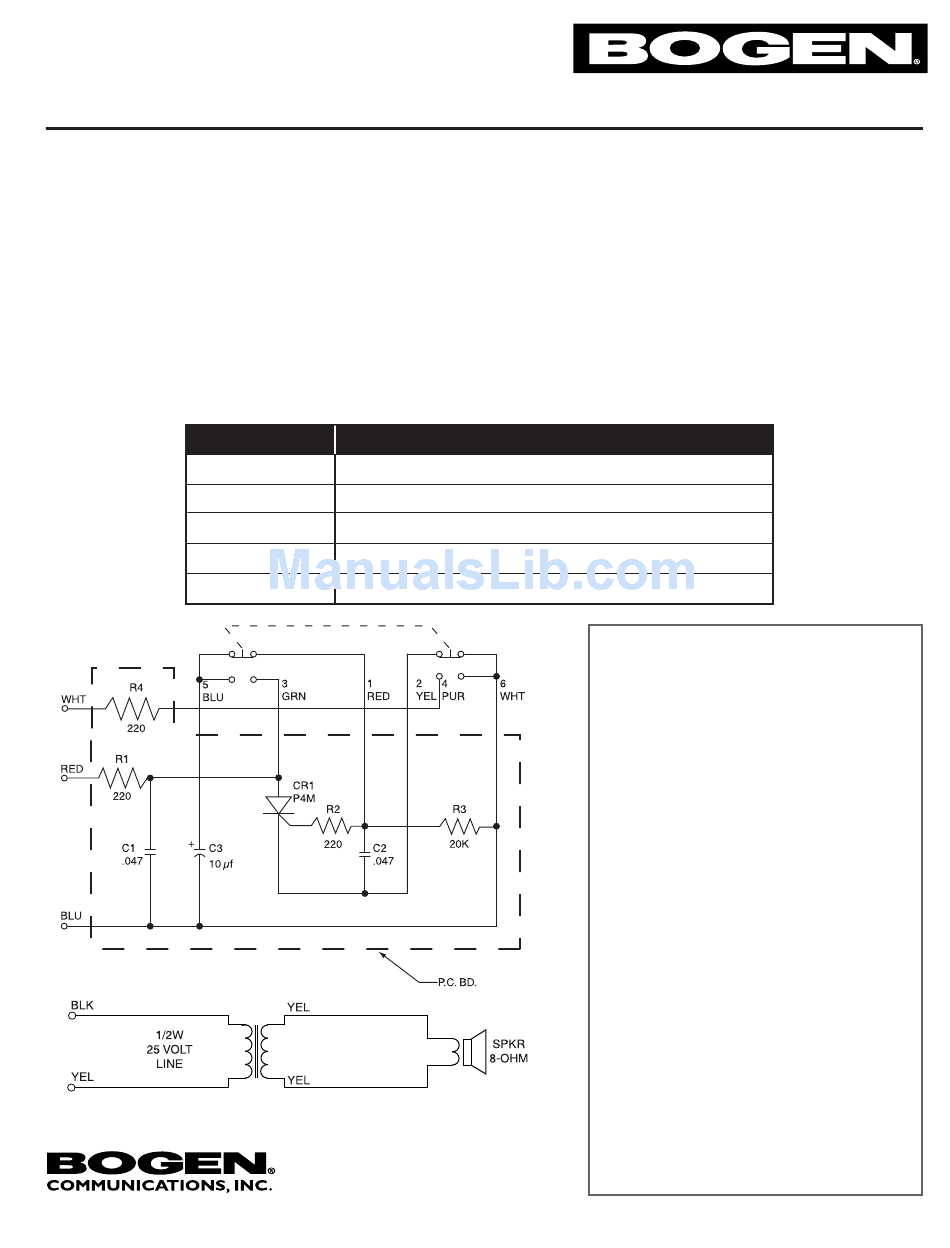

VRS1 Schematic Diagram
50 Spring Street, Ramsey, NJ 07446, U.S.A.
Tel. 201-934-8500 • Fax: 201-934-9832
www.bogen.com
Conductor
Multicom/Quantum Station Port "A" Terminal (Momentary Contact)
White
Multi-Graphic Station Port "A" Terminal (Latching Contact)
Red
Blue All Systems Station Port "G" Terminal
Black All Systems Station Port "S" Terminal
Yellow All Systems Station Port "S" Terminal
B74-6377-01
LIMITED WARRANTY
Bogen's Vandal-Resistant Speakers are warranted to be free from
defects in material or workmanship for two (2) years from the date of
sale to the original purchaser. Any part of the product covered by this
warranty that, with normal installation and use, becomes defective
will be repaired or replaced by Bogen, at our option, provided the
product is shipped insured and prepaid to: Bogen Factory Service
Department, 50 Spring Street, Ramsey, NJ 07446, USA. The prod-
uct will be returned to you freight prepaid. This warranty does not
extend to any of our products that have been subjected to abuse,
misuse, improper storage, neglect, accident, improper installation or
have been modified or repaired or altered in any manner whatsoever,
or where the serial number or date code has been removed or
defaced.
THE FOREGOING LIMITED WARRANTY IS BOGEN'S SOLE AND
EXCLUSIVE WARRANTY AND THE PURCHASER'S SOLE AND
EXCLUSIVE REMEDY. BOGEN MAKES NO OTHER WAR-
RANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, AND
ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY
DISCLAIMED AND EXCLUDED TO THE MAXIMUM EXTENT
ALLOWABLE BY LAW. Bogen's liability arising out of the manufac-
ture, sale or supplying of products or their use or disposition,
whether based upon warranty, contract, tort or otherwise, shall be
limited to the price of the product. In no event shall Bogen be liable
for special, incidental or consequential damages (including, but not
limited to, loss of profits, loss of data or loss of use damages) arising
out of the manufacture, sale or supplying of products, even if Bogen
has been advised of the possibility of such damages or losses.
Some States do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may
not apply to you. This warranty gives you specific legal rights, and
you may also have other rights which vary from State to State.
Products that are out of warranty will also be repaired by the Bogen
Factory Service Department -- same address as above or call
201-934-8500. The parts and labor involved in these repairs are war-
ranted for 90 days when repaired by the Bogen Factory Service
Department. All shipping charges in addition to parts and labor
charges will be at the owner's expense. All returns require a Return
Authorization number.
Specifications subject to changes without notice.
08/10/2004
54-5921-01D 0807
