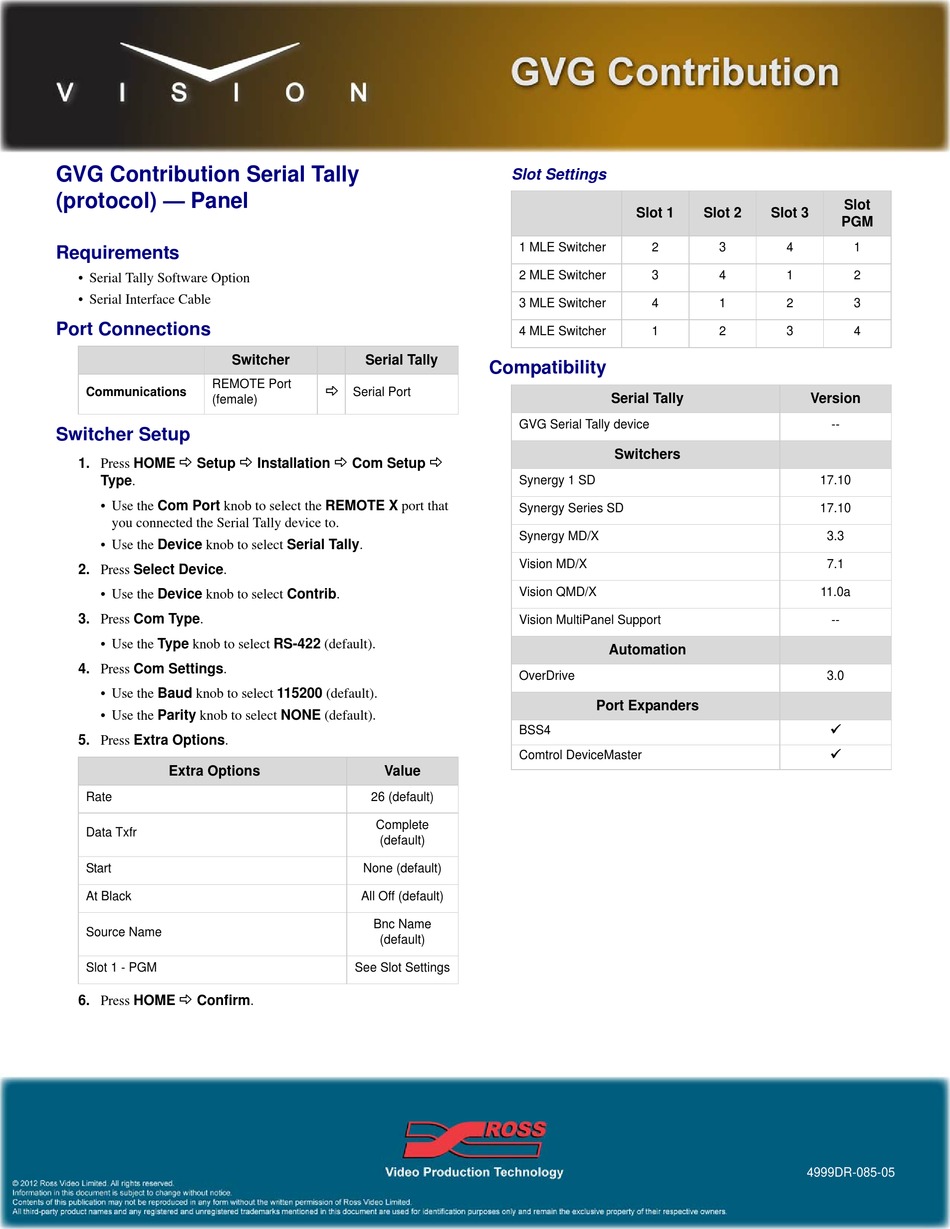

Ross Synergy SD Series Manual

GVG Contribution Serial Tally
(protocol) — Panel
Requirements
• Serial Tally Software Option
• Serial Interface Cable
Port Connections
Switcher
REMOTE Port
Communications
(female)
Switcher Setup

1. Press HOME Setup
Type.
• Use the Com Port knob to select the REMOTE X port that
you connected the Serial Tally device to.
• Use the Device knob to select Serial Tally.
2. Press Select Device.
• Use the Device knob to select Contrib.
3. Press Com Type.
• Use the Type knob to select RS-422 (default).
4. Press Com Settings.
• Use the Baud knob to select 115200 (default).
• Use the Parity knob to select NONE (default).
5. Press Extra Options.
Extra Options
Rate
Data Txfr
Start
At Black
Source Name
Slot 1 - PGM

6. Press HOME Confirm.
Serial Tally

Serial Port
 
Installation Com Setup
Value
26 (default)
Complete
(default)
None (default)
All Off (default)
Bnc Name
(default)
See Slot Settings
Slot Settings
1 MLE Switcher
2 MLE Switcher
3 MLE Switcher
4 MLE Switcher
Compatibility
GVG Serial Tally device

Synergy 1 SD
Synergy Series SD
Synergy MD/X
Vision MD/X
Vision QMD/X
Vision MultiPanel Support
Automation
OverDrive
Port Expanders
BSS4
Comtrol DeviceMaster
Slot 1 Slot 2 Slot 3
2 3 4
3 4 1
4 1 2
1 2 3
Serial Tally
Switchers
Slot
PGM
1
2
3
4
Version
--
17.10
17.10
3.3
7.1
11.0a
--
3.0


4999DR-085-05
