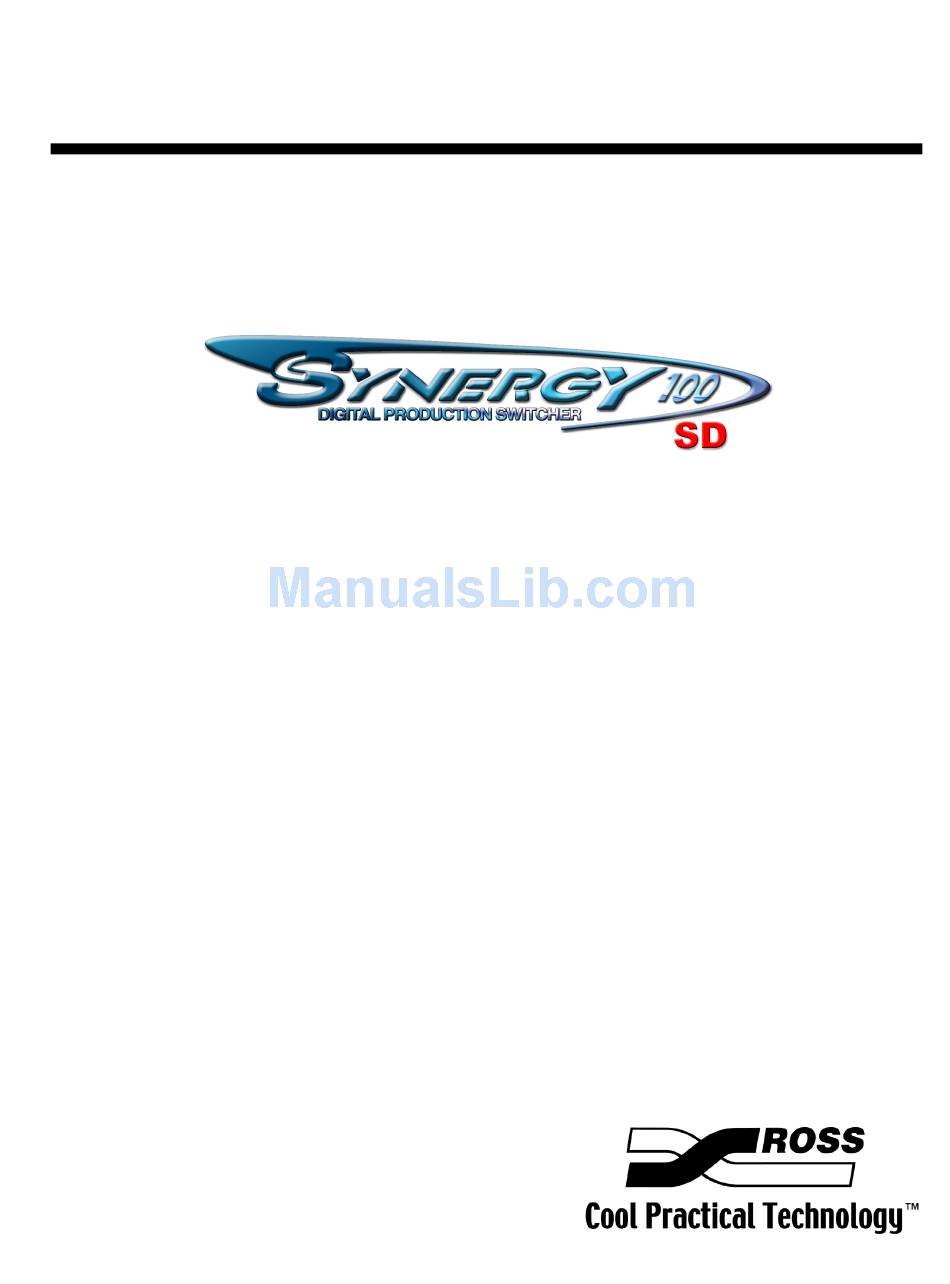

Page 1: Installation Guide
Ross Video Limited Installation Guide Software Issue: 16.10-S100...
Page 2 The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
Page 3: Important Safety Instructions
Important Regulatory and Safety Notices to Service Personnel Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements.
Page 4 8) Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
Page 5 Notice Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A” digital apparatus complies with Canadian ICES-003.
Page 6 EUROPE This equipment is in compliance with the essential requirements and other relevant provisions of CE Directive 93/68/EEC. INTERNATIONAL This equipment has been tested to CISPR 22:1997 along with amendments A1:2000 and A2:2002, and found to comply with the limits for a Class A Digital device. Notice This is a Class A product.
Page 7 Software upgrades for switchers may occur from time to time, and are determined by Ross Video. The upgrades are posted on the Ross Video website, and are free of charge for the life of the switcher. This warranty is void if products are subjected to misuse, neglect, accident, improper installation or application, or unauthorized modification.
Page 8: Environmental Information
The crossed-out wheeled bin symbol invites you to use these systems. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performances of our products.
Page 9 Company Address Ross Video Limited Ross Video Incorporated 8 John Street P.O. Box 880 Iroquois, Ontario, K0E 1K0 Ogdensburg, New York Canada USA 13669-0880 (+1) 613 • 652 • 4886 General Business Office: (+1) 613 • 652 • 4425 Fax: (+1) 613 •...
Page 11: Table Of Contents
Frame Jumpers and Switches ................2-20 System Reset Notes .....................2-23 Software Upgrade ......................2-24 System Backup ....................2-24 Software Upgrade ....................2-25 Restoring Registers ....................2-27 Options Menu ........................2-28 Menu Access .......................2-28 Options Menu ......................2-28 Installing Software Options .................2-30 Synergy 100 Installation Guide (v16.10-S100) Contents • i...
Page 12 Setting Up Panel Buttons ..................6-8 Checking Inputs ....................... 6-10 Checking Keys ......................... 6-11 Communication Setup In This Chapter ........................7-1 Communication Menu Trees ....................7-2 Editor Communication Setup ....................7-6 Editor Setup ......................7-6 ii • Contents Synergy 100 Installation Guide (v16.10-S100)
Page 13 About the Synergy File Storage System ................9-3 Notes on Using a USB Key ...................9-4 Saving Configurations ......................9-6 Recalling Configurations ....................9-10 Restoring Factory Default Settings ..................9-13 Recall Factory Procedure ..................9-13 When Configuration is Complete ..................9-15 Synergy 100 Installation Guide (v16.10-S100) Contents • iii...
Page 14 Diagnostics Overview ....................... 12-2 Potentiometer Test ....................12-2 Fader Test ......................12-3 Positioner Test ..................... 12-3 Button Test ......................12-3 Lamp Test ......................12-4 Communication Port Monitoring ..................12-5 Switcher Calibration ......................12-8 iv • Contents Synergy 100 Installation Guide (v16.10-S100)
Page 15 Appendix D. Installation Worksheets In This Appendix .......................13-1 Input Worksheet .........................13-2 Output Worksheet ......................13-3 Standard Frame GPI Input Worksheet ................13-4 Glossary of Terms Index Synergy 100 Installation Guide (v16.10-S100) Contents • v...
Page 16 • Contents Synergy 100 Installation Guide (v16.10-S100)
Page 17: Introduction
Introduction A Word of Thanks Congratulations on choosing the Ross Synergy 100 SD digital video production switcher. You have purchased the power and versatility of an advanced Multi-Level Effects (MLE) digital switcher that is ready to take on all creative challenges in today’s competitive broadcast environment. You will be pleased at how easily your Synergy 100 switcher fits into your working environment.
Page 18: About This Guide
If, at any time, you have a question pertaining to the installation of your Ross Synergy 100 switcher, please contact us at the numbers listed in the front of this guide. Our technical staff are always available for consultation, training or service.
Page 19: Documentation Conventions
Control Panel buttons are indicated in bold-faced upper case letters, using a sans-serif font. For example: Press WIPE to … • Menu names on the preview overlay are indicated in bold-faced text. For example: The Inputs Menu allows you to… Synergy 100 Installation Guide (v16.10-S100) Introduction • 1–3...
Page 20: Documentation Terms
Either type of storage device can be used to save and recall configurations, setups and certain files to the Synergy switcher. • “System” refers to the entire Synergy 100 system, consisting of its electronics frame and control panel. • “Video system” refers to the mix of interconnected digital equipment (including the edit controller, VTRs, DVEs, etc.) in which the Synergy 100 system is included.
Page 21: Abbreviations
Downstream Keyer Digital Video Effects Digital Video Recorder Identification Multi-level Effects Preset Bus Preset Pattern PST PATT Preview Rack Unit Technical Director Video Cassette Recorder VDCP Video Disk Communications Protocol Video Tape Recorder Synergy 100 Installation Guide (v16.10-S100) Introduction • 1–5...
Page 22: Product Overview
Product Overview Ross Video developed the Synergy series for live news, live sports and live production. Because the switcher is the center of the action, it must be powerful and versatile, yet easy to operate. This operational simplicity frees operators to concentrate on the content — instead of the equipment.
Page 23 Growth Path. The Synergy 1 frame provides a versatile growth path, regardless of your entry point within the system. If you start with a GVG 100, GVG 110, Ross RVS-210A or 210D, Ross RVS-216A or 216D control panel, or a Synergy 100 control panel, you can move up to the Synergy 1 control panel and benefit from a full range of advanced features.
Page 24: Standard Features
• Serial Digital Inputs Sixteen serial digital inputs are standard on the Synergy 100. Any input can be assigned to any button on the Program/Preset bus, thus simplifying installation and your ability to customize the panel layout. Inputs can be used for either video or alpha channels.
Page 25: Chroma Keying
Pattern Generators The Synergy 100 includes (as standard) both primary and secondary pattern generators that are used for wipe transitions and preset patterns. The primary generator is equipped with extensive classic, rotary, and matrix wipes. The secondary generator provides classic patterns.
Page 26 System Control group. Matte Generators The Synergy 100 switcher has five simple color generators. These color generators allow you to adjust the hue, color saturation, and luminance of the BKGD, wipe pattern borders, Effects key fill, or the Downstream key border and matte fill.
Page 27: System Options
Digital Reference The Synergy 100 switcher requires a digital reference signal connected to the 601 REF IN BNC. Internal black is regenerated from this digital reference. If only an analog reference is available, an external A-D converter is required.
Page 28: Clean Feed
Note that the Clean Feed option comprises software plus a hardware “serializer” module that installs on the Frame Processor Board. Please call Ross Video Technical Support for more details. Squeeze & Tease One Squeeze & Tease option puts the power of a simple 2-D (two dimensional) or 3D (three dimensional), 2 channel, WARP DVE into both Effects keyers.
Page 29 Frame Processor Board. Editor Interface The Editor Interface Option allows the Synergy 100 to interface with all popular editing systems. The option itself comprises software plus security codes and once installed, the switcher can be controlled using an RS-232 or RS-422 interface and industry standard editor protocol. The editor can be used to read and write switcher functions including video input selection, pushbutton enable and disable, control settings, and memory registers.
Page 30 All switcher inputs and outputs are 10-bit SDI, including the system reference. Signal sources of other video formats must be converted to serial digital. Ross Video chose to do this conversion externally to ensure that the very latest conversion technology and most competitive pricing is available to our customers.
Page 31 Please visit our website at http://www.rossvideo.com or contact your Ross Video representative to obtain a current Ross Video Product Catalog for detailed information on our complete line of converters. Spare Parts Kit A Spare Parts Kit is available which provides switcher parts according to the following criteria: •...
Page 32: A Word About Technical Support
A Word about Technical Support At Ross, we take pride in the quality of our products, but if problems occur, help is as close as the nearest telephone. Our 24 Hour Hot Line service ensures you have access to technical expertise around the clock.
Page 33: Product Comparison Charts
(*7) DSK can only perform Mix (dissolve) and Cut transitions. (*8) Variable via Chroma Key button hold down. (*9) Fixed settings. (*10)Bank selectable via the Auto Trans (System Control) display. (*11)Centre mark and safe title only. Synergy 100 Installation Guide (v16.10-S100) Introduction • 1–17...
Page 34: Options Comparison Chart
(*2) Panel tallies are standard. See table below. (*3) In the control panel only. (*4) Floating Border Generator option for the Synergy 100. Tally Comparison Chart The following chart details the optional tally combinations that are available with each Synergy 1 switcher configuration.
Page 35: Installation
Installation In This Chapter This chapter provides instructions for installing your Synergy 100 SD switcher hardware. The following topics are discussed: • Static Discharge • Getting Started • Equipment Overview • Installation at a Glance • Hardware Installation • Installing the Control Panel •...
Page 36: Static Discharge
Touch the frame to dissipate static charge before removing boards from the frame and exercise proper grounding precautions when working on circuit boards. 2–2 • Installation Synergy 100 Installation Guide (v16.10-S100)
Page 37: Getting Started
• A Word About Serial Numbers Unpacking A complete Synergy 100 system is typically shipped in three boxes as outlined below. Your shipping configuration may vary. • Box 1 contains the Synergy 100 control panel, including its power supply, manuals, and installation kit.
Page 38: Equipment Overview
• Frame, Front View • Frame, Rear Connector Panel View Control Panel, Top View The following figure illustrates a top view of the Synergy 100 control panel. Full details are provided in the Synergy 100 Operation Guide. YSTEM ONTROL FFECTS...
Page 39 ATTES OWNSTREAM EYER RANSITION ONTROL Synergy 100 Control Panel — USB Port Important Accessory Identification: This control panel must be used with the Synergy 1 Rack Frame. In addition, the power supply used must be the Globtek Inc. Power Adaptor, Model GT-21097-4812.
Page 40: Control Panel, Rear Connector Panel
Synergy Connector One 8-pin shielded Telco connector labeled SYNERGY is provided for those users who wish to use a Telco control cable (supplied) to connect their Synergy 100 panel to the frame. Important The cable for connecting the Synergy 100 Control Panel to the Synergy 1 Frame is not wired as a standard CAT5 ethernet cable.
Page 41: Frame, Front View
The FAN FAIL LED, when lit, indicates that the fan is drawing too much current or has stopped turning. Power Fail LED The POWER FAIL LED, when lit, indicates that the power supply has failed or is not connected properly. Synergy 100 Installation Guide (v16.10-S100) Installation • 2–7...
Page 42: Frame, Rear Connector Panel View
7) GVG 100/110 Panel Connector 12) Peripheral 1 Connectors 3) Power Supply LEDs 8) GPI I/O Connector 13) Peripheral 2 Connectors 4) Synergy 100 Panel Connector 9) Tally Connectors 14) Output Section 5) Aux Panel Connector 10) Editor Connector 15) Input Section The following are descriptions of each rear panel connector.
Page 43 10. Editor Connector One 9-pin “D” RS-422 connector labeled EDITOR is provided for connection to a external edit controller. The connection allows the Synergy 100 to be controlled by the editor using RS-422 commands. • The port can be configured as RS-422 or RS-232 through the menu system.
Page 44: Installation At A Glance
One optional clean feed output (CLEAN). • One digital reference input (601 REF IN). If DAs are required to provide additional outputs for a particular signal, contact Ross Video or your Ross Video dealer for details. 15. Input Section Sixteen BNCs are provided for the digital inputs of the switcher.
Page 45 Important The cable for connecting the Synergy 100 Control Panel to the Synergy 1 Frame is not wired as a standard CAT5 ethernet cable. If you need a cable of a specific length, contact your Ross Video Representative for ordering information.
Page 46: Hardware Installation
Hardware Installation This section describes procedures for installing the following main components of the Synergy 100 switcher system: • Control panel • Optional Sliding Shelf • Remote Aux panels • Electronics frame This equipment is intended to be installed and serviced by qualified personnel only. All cautionary rules regarding static discharge apply.
Page 47 Note The Synergy 100 control panel can simply be set on the desktop. Normally, fasteners are not required to hold the control panel in place. However, if your installation requires it (particularly for remote trucks), you can attach the tub to the desk using the optional mounting bracket assembly.
Page 48 Install control panel power. 12V__ --- -- Rear Panel Power Connector Connect the Model GT-21097-4812 power supply (supplied by Ross Video) to the DC connector. Warning The control panel’s power supply is not intended to be field serviced — it is serviced by replacement only. In case of power supply failures, please contact your dealer or Ross Video.
Page 49 Install the nuts over the screws and tighten. From the front of the rack frame, set the Synergy 100 control panel on top of the shelf, with the four holes on the bottom of the control panel lining up with the four holes on the shelf.
Page 50: Installing Optional Remote Aux Bus Panels
20 possible sources on the panel, to a predetermined specific Aux Bus. Dedicated Remote Aux Bus panels are ordered to control a specific Aux Bus and are preset at the factory. Contact your Ross Video representative for ordering information. SHIFT...
Page 51 One AC Adapter (90 - 264 VAC) is provided with each remote Aux panel as a source of +5 VDC. Please note: • 90 - 264 VAC adapter, p/n 103-012 Refer to the section “Remote Aux Panel Cabling” on page 3-3 for connection details. Synergy 100 Installation Guide (v16.10-S100) Installation • 2–17...
Page 52: Installing The Electronics Frame
Failure to do so will result in damage to the board, the frame, or both! Double check your work! In order to provide adequate ventilation, the top and front panel covers must be in place during operation. 2–18 • Installation Synergy 100 Installation Guide (v16.10-S100)
Page 53: Connecting Frame Power
Connect the socket end of the Power connector to the DC power port at the rear of the Synergy frame. Position the stress relief clip over the connector. Connect the POWER connector to an AC outlet. This completes the procedure to install frame power. Synergy 100 Installation Guide (v16.10-S100) Installation • 2–19...
Page 54: Jumpers And Switches
DIP SW4 RESET DIP SW1 Frame Jumpers and Switches 1) Reset Switch 3) DIP Switch 3 5) DIP Switch 4 2) DIP Switch 1, Reserved 4) DIP Switch 2 6) Watch Dog Jumper 2–20 • Installation Synergy 100 Installation Guide (v16.10-S100)
Page 55 Squeeze & Tease 3D software from a storage device: Up: Software can be upgraded from a storage device, such as a floppy disk or USB key. Refer to Chapter 2 “Installation and Setup” in your Synergy 100 Squeeze & Tease 3D/WARP Owner’s Guide for instructions.
Page 56 “Installation Warning” alerts you that settings are about to be changed: WARNING! You are about to change the switcher's installation settings. 0. Confirm 1. Cancel Down Accept Installation Change Confirmation Menu 2–22 • Installation Synergy 100 Installation Guide (v16.10-S100)
Page 57: System Reset Notes
Resetting the frame changes the current video state. Simply turning the frame off, or loosing power to the control panel, will not reset the video state, because a frame reset has not been initiated. Synergy 100 Installation Guide (v16.10-S100) Installation • 2–23...
Page 58: Software Upgrade
• Insert a USB key into the USB port of the Synergy 100 Switcher. You must wait 5 seconds after inserting the USB key into the USB port before you can save setup configurations to it.
Page 59: Software Upgrade
This section outlines how to initiate the software upgrade using either floppy disks or a USB key. Note If you have received a Synergy 100 system with version 16 software already loaded on it, you will not be able to load pre-version 16 software onto it regardless of whether you have a USB port or floppy disk drive.
Page 60 If you have saved your setups to a USB key, press SEL under the “Cont” prompt and continue with the upgrade. Insert the USB key containing the Synergy 100 software into the USB port of the Synergy 100 switcher. You must wait 5 seconds after inserting the USB key into the USB port before you can proceed to the next step.
Page 61: Restoring Registers
Notes on Upgrading Software with a USB Key Please note: • Synergy 100 systems released before version 16 are able to load version 16 or later software, and revert back to earlier versions. • If you have received a Synergy 100 system with version 16 software already loaded on it, you will not be able to load pre-version 16 software onto it regardless of whether you have a USB port or floppy disk drive.
Page 62: Options Menu
Options Menu • Installing Software Options Important Serial numbers allow Ross Video to properly track which options have been purchased by each customer. Serial numbers are installed in flash memory at the factory. Menu Access All menus are accessed in the Preview Overlay mode. Refer to the section “Menu System Basics”...
Page 63 Options 5 and 6 are indicated in grey to the right of the option. The version numbers of the Synergy 100 control panel and Synergy 1 frame processor boards, Options 5 and 6, are indicated in grey to the right of the option.
Page 64: Installing Software Options
This completes the procedure to verify options. Installing Software Options There are three software options that are currently available with the Synergy 100 panel – Editor control, Audio Mixer control, and Serial Tally interface. On the Software Options Menu, the headings for these options will indicate if the option is installed, with either an On or an Off displayed in grey.
Page 65 Press SEL when you are finished. The greyed Off indicator for that option will change to On. 10. Press the MENU button to exit the menus. This completes the procedure for installing a new software option. Synergy 100 Installation Guide (v16.10-S100) Installation • 2–31...
Page 66 2–32 • Installation Synergy 100 Installation Guide (v16.10-S100)
Page 67: Preliminary Cabling And Check
Reference Signal Connection • Monitor Connection • Power Up • Resetting the System • Full Reset • Software Reset • Preliminary Functional Check • Basic Troubleshooting • Switcher Timeout Synergy 100 Installation Guide (v16.10-S100) Preliminary Cabling and Check • 3–1...
Page 68: Cabling
(2) this device must accept any interference received, 50/60 Hz including interference that may cause undesired operation. 2.7A 180W POWER SYNERGY PANEL PANEL -12 +5 +10 +15 Frame to Control Panel Interconnection 3–2 • Preliminary Cabling and Check Synergy 100 Installation Guide (v16.10-S100)
Page 69: Remote Aux Panel Cabling
Always install cables so that they will not be subjected to physical abuse. • The Synergy 100 panel can also be connected to the frame via an existing GVG 100/110 control cable or an existing RVS 210/216 control cable. Refer to the section “Hardware Installation”...
Page 70: Reference Signal Connection
Serial Digital to NTSC Serial Digital to PAL Serial Digital to Analog Component For information on Ross Video’s full line of conversion equipment, contact your sales representative or Ross Video Limited. 3–4 • Preliminary Cabling and Check Synergy 100 Installation Guide (v16.10-S100)
Page 71: Power Up
If any of the rear panel power supply LEDs are not lit, turn the unit off and check all power connections. • Turn the unit back on and recheck all LEDs. If a problem still exists, contact Ross Video Technical Support. This completes the procedure to power up the system.
Page 72: Resetting The System
Resetting the System If required, the Synergy 100 SD switcher can be reset manually from the frame. A Full Reset affects hardware and software simultaneously. Full Reset This function performs both a hardware and a software reset simultaneously. Switcher memory registers, personality registers, and installation registers are not affected by the reset, but all other switcher parameters (for example, the current state of the panel) are reset.
Page 73: Preliminary Functional Check
• Fade to black All Ross Video products undergo thorough quality control and testing prior to shipment. The following preliminary check ensures that no damage has occurred during transit and that all boards are correctly installed. Once the preliminary check is complete, the remaining installation procedures can be performed.
Page 74: Basic Troubleshooting
If you have the USB Removable Media Drive option installed, you may receive the error message, “USB UPGD FAIL” after restoring power to the control panel. Contact Ross Video Technical Support for more information on correcting this error. For other switcher problems, please contact Ross Video Technical Support.
Page 75: Preliminary Video Installation
Input Connection • Input Verification • Pushbutton Inserts • Control Panel Pushbutton Inserts • Aux Bus Panel Pushbutton Inserts • Output Connection • Connecting and Verifying Outputs • Output Verification Synergy 100 Installation Guide (v16.10-S100) Preliminary Video Installation • 4–1...
Page 76: Input Worksheet
If you elect to use analog black as your reference (based on your facility’s requirements), you must use an external A-D converter. For information on Ross Video’s full line of conversion equipment, contact your sales representative or Ross Video Limited.
Page 77 Shaped Audio Audio Panel Tally Input # Type Chan1 Chan2 Button Number sample 1 Other — Chan 1 Group 2 sample 2 Alpha — Group 1 NONE 10 (Shifted) — Synergy 100 Installation Guide (v16.10-S100) Preliminary Video Installation • 4–3...
Page 78: Connecting And Verifying Inputs
Synergy 1 Frame, Rear – Input Section Use cabling techniques in accordance with good engineering practice. Note The Synergy 100 switcher passes all embedded audio and ancillary data signals, including “closed captioning” that is present on the background video. Input Verification For verification of your inputs, ensure that a monitor is connected to the PGM 1 or PGM 2 BNC output.
Page 79: Pushbutton Inserts
Standard films with common input designations are provided to all customers. If a designation that you require has not been included on a certain film and it is a type likely to be needed by other switcher users, Ross Video would be pleased to consider adding it to the standard film. Note Ross Video will make custom inserts for your facility at a very reasonable price.
Page 80: Aux Bus Panel Pushbutton Inserts
Replace the paper background, then replace the lens cap on the switch and button assembly. Press down firmly to re-seat the cap. This completes the procedure to install all Aux Bus pushbutton inserts. 4–6 • Preliminary Video Installation Synergy 100 Installation Guide (v16.10-S100)
Page 81: Output Connection
(Optional) Note If you require more outputs than are provided, consideration should be given to using a digital distribution amplifier. Contact Ross Video or your Ross Video dealer for full details. Synergy 100 Installation Guide (v16.10-S100) Preliminary Video Installation • 4–7...
Page 82: Connecting And Verifying Outputs
1, then switch between all subsequent inputs on the Aux panel. Output depends on clean feed point of origin. Refer to the section CLEAN “Setting Up Outputs” on page 8–4 for instructions. 4–8 • Preliminary Video Installation Synergy 100 Installation Guide (v16.10-S100)
Page 83: Using The Menu System
Using the Menu System In This Chapter This chapter introduces the menu system of the Synergy 100 SD Switcher. The following topics are discussed in this chapter: • Menu System Basics • Menu Information Synergy 100 Installation Guide (v16.10-S100) Using the Menu System • 5–1...
Page 84: Menu System Basics
Menu System Basics The menu system is accessed using the System Control group of the Synergy 100 control panel and displayed on the preview monitor as a Preview Overlay. The display is in fact a menu tree, with various branches that arrange switcher functions into concise categories.
Page 85 “MODE”) which identify the area of the panel that has control of the Effects Control, Mattes, or System Control functions. When you are in the menu system, MENU will appear in the displays in the Effects Control and System Control groups. Synergy 100 Installation Guide (v16.10-S100) Using the Menu System • 5–3...
Page 86: Menu Information
Menu Information Each menu comprises the following elements: Main Menu - Synergy 100 vX.XX-S100 0. Effects 5. Disk 1. Inputs 6. Personality 2. Outputs 7. Options 3. GPIs 8. S&T 3D 4. Communication 9. Default MENU Exit Previous Down Accept...
Page 87 Fan is not installed or not functioning properly, a Help message is displayed on the Main Menu, where it will remain until the fan is functioning correctly. Refer to the Squeeze & Tease 3D/WARP Owner’s Guide for details. Synergy 100 Installation Guide (v16.10-S100) Using the Menu System • 5–5...
Page 88 5–6 • Using the Menu System Synergy 100 Installation Guide (v16.10-S100)
Page 89: Bnc Configuration And Check
BNC Configuration Menu Setup Tree • Setting Up BNC Types • Setting Up Tallies • Setting Up Auto Keys • Setting Up Panel Buttons • Checking Inputs • Checking Keys Synergy 100 Installation Guide (v16.10-S100) BNC Configuration and Check • 6–1...
Page 90: Bnc Configuration Menu Setup Tree
BNC Configuration Menu Setup Tree The following figure illustrates the portion of the menu tree that is used to set up and configure your BNC inputs. Use this figure for reference during the following procedures. Main Menu - Synergy 100 vX.XX-S100 0. Effects 5.
Page 91: Setting Up Bnc Inputs
Press MENU to display the Main Menu on the Preview Overlay. • Press 1. Inputs to display the Inputs Menu. Inputs 0. Inputs 1. Panel 2. Tally 3. Audio MENU Exit Previous Down Accept Inputs Menu Synergy 100 Installation Guide (v16.10-S100) BNC Configuration and Check • 6–3...
Page 92 Press 1. Cancel to exit the menus safely, without making any changes. The system returns to the previously stored settings. This completes the procedure for setting up the BNC Types. 6–4 • BNC Configuration and Check Synergy 100 Installation Guide (v16.10-S100)
Page 93: Setting Up Tallies
Your associations on this menu affect the tally connectors (and associated relay electronics) on the control panel. The Synergy 100 panel comes with 16 standard panel tallies. If the Frame Tally option has been purchased, an additional 16 configurable tallies are available within the Synergy frame and can be assigned to any video input.
Page 94: Setting Up Auto Keys
Use the following procedure to set up your alpha inputs: Navigate to the Inputs Menu as follows: • Press MENU to display the Main Menu. Press 1. Inputs to display the Inputs Menu. • 6–6 • BNC Configuration and Check Synergy 100 Installation Guide (v16.10-S100)
Page 95 Yes (Shaped) — Use this option to have the switcher perform an additive key. Here, the fill video signal is precisely shaped (e.g., characters, in the case of Synergy 100 Installation Guide (v16.10-S100) BNC Configuration and Check • 6–7...
Page 96: Setting Up Panel Buttons
Press 1. Inputs to display the Inputs Menu. Inputs 0. Inputs 1. Panel 2. Tally 3. Audio MENU Exit Previous Down Accept Inputs Menu Press 1. Panel to display the Panel Menu. 6–8 • BNC Configuration and Check Synergy 100 Installation Guide (v16.10-S100)
Page 97 Press 1. Cancel to exit the menus safely, without making any changes. The system • returns to the previously stored settings. This completes the procedure for setting up your control panel buttons. Synergy 100 Installation Guide (v16.10-S100) BNC Configuration and Check • 6–9...
Page 98: Checking Inputs
If all installation changes are now complete, return the Installation Enable Jumper (DIP Switch 4, SW7 on the Frame CPU Board) to the Up position (toward the Rear of the board). 6–10 • BNC Configuration and Check Synergy 100 Installation Guide (v16.10-S100)
Page 99: Checking Keys
If the key alpha and fill sources are correct, but the key still does not appear correct visually, reassign the shaped designation and recheck the key’s visual appearance. This completes the procedure to check your keys. Synergy 100 Installation Guide (v16.10-S100) BNC Configuration and Check • 6–11...
Page 100 6–12 • BNC Configuration and Check Synergy 100 Installation Guide (v16.10-S100)
Page 101: Communication Setup
This chapter provides instructions for setting up communication parameters with external equipment, such as editors and audio mixers. The following topics are discussed: • Communication Menu Trees • Editor Communication Setup • Remote Audio Mixer Communication Setup • Serial Tally Protocol Setup Synergy 100 Installation Guide (v16.10-S100) Communication Setup • 7–1...
Page 102: Communication Menu Trees
Communication Menu Trees The figures below illustrates the portion of the Synergy menu tree that is used for communication setup procedures. Use these figures for reference throughout this chapter. Communication Main Menu - Synergy 100 vX.XX-S100 0. Port Editor 5. Protocol RS232 0.
Page 103 Main Menu - Synergy 100 vX.XX-S100 0. Effects 5. Disk 1. Inputs 6. Personality 7. Options 2. Outputs 3. GPIs 8. S&T 3D 4. Communication 9. Default MENU Exit Previous Down Accept Communication 0. Port Periph2 5. Protocol RS232 Audio 6.
Page 104 Main Menu - Synergy 100 vX.XX-S100 0. Effects 5. Disk 1. Inputs 6. Personality 2. Outputs 7. Options 3. GPIs 8. S&T 3D 4. Communication 9. Default MENU Exit Previous Down Accept Communication - Periph1 - RS232 5. Protocol RS232 0.
Page 105 Main Menu - Synergy 100 vX.XX-S100 0. Effects 5. Disk 1. Inputs 6. Personality 2. Outputs 7. Options 3. GPIs 8. S&T 3D 4. Communication 9. Default MENU Exit Previous Down Accept Communication 0. Port Periph2 5. Protocol RS232 Ser.Tally 1.
Page 106: Editor Communication Setup
The Editor Communication Setup procedure allows you to set up communication with an external edit controller. Once completed, the editor can control the Synergy 1 frame and Synergy 100 panel with a variety of standard and advanced edit control functions.
Page 107 Use the UP ARROW or DOWN ARROW (1 or 10) buttons to select the parity for editor. Refer to your editor documentation for the parity for your device. • Press the right SEL button to accept the new settings. Synergy 100 Installation Guide (v16.10-S100) Communication Setup • 7–7...
Page 108 Use the UP ARROW or DOWN ARROW (1 or 10) buttons to toggle between Yes and No as follows: Yes — Use this option to enable the Synergy 100 switcher to go into Active mode once a Break and address has been received. This is the default setting.
Page 109 Wipe Bttn — Use this option to have wipe patterns selected by the physical wipe button number the wipe is assigned to. Press the right SEL button to accept the new settings. • Synergy 100 Installation Guide (v16.10-S100) Communication Setup • 7–9...
Page 110 This completes the procedure for setting up the extra options for the GVG 100 editor protocol. Note Refer to Chapter 8, “Memory Functions and More” of the Synergy 100 Operator’s Manual for more information on using an editor. 7–10 • Communication Setup Synergy 100 Installation Guide (v16.10-S100)
Page 111: Remote Audio Mixer Communication Setup
5-pin, DIN port on the Remote Audio Mixer. You will need two of these cables. The following diagram and procedure describe the physical connections of a Yamaha 01V96 Audio Mixer to your Synergy 100 Switcher. The locations or names of ports may vary with your audio mixer. Synergy 100 Installation Guide (v16.10-S100)
Page 112 Use the following procedure to connect a single Remote Audio Mixer to your Synergy 100 Switcher: Connect and secure the 9-Pin end of the MIDIator Interface Cable to one of the Peripheral Ports on the back of the Synergy 1 frame.
Page 113: Setting Up Communication With A Remote Audio Mixer
Setting Up Communication with a Remote Audio Mixer In order to have the Synergy 100 Switcher communicate with the Remote Audio Mixer, the peripheral port on the frame that the Audio Mixer is connected to must be set up to communicate with the particular Remote Audio Mixer you have connected.
Page 114 Yamaha 01V, but can be used, if desired. • Press the right SEL button to accept the new settings. Press MENU to display the Installation Change Screen. 7–14 • Communication Setup Synergy 100 Installation Guide (v16.10-S100)
Page 115: Audio Mixer Interface Specifics
This completes the procedure for setting up communications with a Remote Audio Mixer. Next you must set up the Remote Audio Mixer to properly communicate with the Synergy 100 switcher. Audio Mixer Interface Specifics In order to complete the communications setup, you must configure the Remote Audio Mixer to accept commands and communicate with the switcher.
Page 116 Rx CH — Use the Parameter Dial to set this to 1. • Use the following table to set the indicated parameters. Yamaha 01V Setup OMNI ECHO Program Change Control Change Param Change Bulk Press ENTER to save your changes. 7–16 • Communication Setup Synergy 100 Installation Guide (v16.10-S100)
Page 117 Yamaha 01V96, as true RS-232 is only available on Peripheral Port 2. However, you can connect an audio board using RS-232 protocol to Peripheral Port 1 if the Protocol heading is set to RS-422, and an RS-422-to-RS-232 converter is used. Synergy 100 Installation Guide (v16.10-S100) Communication Setup • 7–17...
Page 118 In order to allow the Synergy 100 Switcher to communicate with the audio mixer, you must configure it as described in this section. Note For information on the Function Buttons and navigating the menu system on your Remote Audio Mixer, refer to the documentation that came with your Audio Mixer.
Page 119 Yamaha DM1000, as true RS-232 is only available on Peripheral Port 2. However, you can connect an audio board using RS-232 protocol to Peripheral Port 1 if the Protocol heading is set to RS-422, and an RS-422-to-RS-232 converter is used. Synergy 100 Installation Guide (v16.10-S100) Communication Setup • 7–19...
Page 120 In order to allow the Synergy 100 Switcher to communicate with the Audio Mixer, you must configure it as described in this section. Note For information on the Function Buttons and navigating the menu system on your Remote Audio Mixer, refer to the documentation that came with your Audio Mixer.
Page 121: Midiator Interface Cable Specifications
Channels and groups that are assigned to BNC inputs, follow the BNC inputs to air on a transition. Note You must have an audio mixer properly connected to the Synergy 100 Switcher to be able to assign audio channels to Input BNCs. Refer to the section “Remote Audio Mixer Communication Setup” on page 7–11 for more information.
Page 122 You can assign a second audio channel or group to the selected input BNC by assigning it to 6. Aud Chan2. This completes the procedure to assign audio channels or groups to an input BNC. 7–22 • Communication Setup Synergy 100 Installation Guide (v16.10-S100)
Page 123 MENU Exit Previous Down Accept Inputs Menu Press 3. Audio to display the Audio Menu. Audio 0. Channel Chan 1 1. Level 2. Groups MENU Exit Previous Down Accept Audio Menu Synergy 100 Installation Guide (v16.10-S100) Communication Setup • 7–23...
Page 124 Press 1. Cancel to exit the menus safely, without making any changes. The system returns to the previously stored settings. This completes the procedure to assign audio channels to an Audio Group. 7–24 • Communication Setup Synergy 100 Installation Guide (v16.10-S100)
Page 125: Setting Audio Levels
0% — Use this option to turn the audio level off. 100% — Use this option to turn the audio level to full volume. • Press the right SEL button to accept the new settings. Synergy 100 Installation Guide (v16.10-S100) Communication Setup • 7–25...
Page 126 If the Fader handle is used to perform a manual transition, the audio transition will progress at the same rate as the Transition Progress Bar. Refer to Chapter 5, “Transitions” in the Synergy 100 Operation Guide, for more information on performing transitions.
Page 127 Press 1. Cancel to exit the menus safely, without making any changes. The system • returns to the previously stored settings. This completes the procedure to setup the Audio Cut mode. Synergy 100 Installation Guide (v16.10-S100) Communication Setup • 7–27...
Page 128: Serial Tally Protocol Setup
• Look Ahead Serial Tally Extra Options Serial Tally Setup In order to connect a serial tally interface device to your Synergy 100 switcher, you must set up communication with the serial tally device. Note The Serial Tally Interface option must be installed in order to set up serial tally communications.
Page 129 Refer to the Installation Manual for your device to determine the correct setting. You can choose between the following: RS-232 — Use this option if the device uses the RS-232 communications protocol. Synergy 100 Installation Guide (v16.10-S100) Communication Setup • 7–29...
Page 130 26 is the recommended setting, but you can choose any value between 2 and 60, inclusive. • Press the right SEL button to accept the new settings. 7–30 • Communication Setup Synergy 100 Installation Guide (v16.10-S100)
Page 131 • Press the right SEL button to accept the new settings. Note When menu item 8. Option is set to At Black, menu item 9. Reserved changes to 9. At Black. Synergy 100 Installation Guide (v16.10-S100) Communication Setup • 7–31...
Page 132 This completes the procedures for setup of the Contribution Serial Tally Protocol option. If you require further information on the various options and their associated values, contact Ross Video Technical Support. Look Ahead Serial Tally Extra Options The Look Ahead Serial Tallies (L.A.S.T.) protocol enables you to inform external devices of a key...
Page 133 This completes the procedures for setup of the Look Ahead Serial Tally Protocol option. If you require further information on the various options and their associated values, contact Ross Video Technical Support. Synergy 100 Installation Guide (v16.10-S100)
Page 134 7–34 • Communication Setup Synergy 100 Installation Guide (v16.10-S100)
Page 135: Additional Installation Setups
Remote Aux Panel GPI Programming • Personality Setup • GPI Setup Menu Tree • Setting up Frame GPIs • Setting up Remote Aux Panel GPIs • Setting Up GPI Outputs Synergy 100 Installation Guide (v16.10-S100) Additional Installation Setups • 8–1...
Page 136: Before You Begin
Frame CPU Board) is in the Down position. This position allows all installation settings to be changed without restriction. Refer to the section “Frame Jumpers and Switches” on page 2-20 for details. 8–2 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 137: Additional Installation Setup Menu Tree
Additional Installation Setup Menu Tree The following figure illustrates the portion of the menu tree that is used for additional installation setup procedures. Use this figure for reference throughout this section. Main Menu - Synergy 100 vX.XX-S100 0. Effects 5. Disk 1.
Page 138: Setting Up Outputs
4:3. 16:9 — Setting the output aspect ratio to 16:9 automatically defines all of the inputs as 16:9. • Press the right SEL button to accept the new settings. 8–4 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 139: Reference Delay
The Synergy frame provides no adjustment for key timing. All key timing adjustments must be made at the source. Use the following procedure to adjust the reference delay of the Synergy 100 switcher: Navigate to the Outputs Menu as follows: •...
Page 140: Clean Feed Setup
• returns to the previously stored settings. This completes the procedure to adjust the reference delay of the Synergy 100 switcher. Clean Feed Setup The Clean Feed option in the Outputs Menu allows you to set the point from which the clean feed signal is derived.
Page 141: Ancillary Data Setup
Refer to the following figure for a visual description of vertical/horizontal blanking. Important Contact Ross Technical Support for additional assistance with the Ancillary Data Menu. Horizontal Blanking Line 0 (even)
Page 142 The Switching line (line 10 in 525 systems and line 6 in 625 systems) is always stripped and cannot be changed. If your Synergy 100 switcher is a 625 system (operating in PAL), included on the menu is a legend identifying the abbreviations used in the graphical display.
Page 143: Setting Up Remote Aux Panels
Aux Bus outputs. These buttons differ depending on the type of remote Aux Panel (assignable or dedicated). Using the Synergy 100 Assignable Remote Aux Panel, the Aux Assign buttons represent the 8 Synergy 100 Aux Bus outputs, respectively. Refer to the figure on page 8-9.
Page 144 Aux panel and the local control panel. Flashing — when a button’s light is flashing, the associated Aux Bus is in “follow” or “view only” mode. You can select the bus and follow what 8–10 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 145 This mode is set automatically to match that of the main Control Panel. The next procedure is to set up the desired group and offset for each Remote Aux Panel. Synergy 100 Installation Guide (v16.10-S100) Additional Installation Setups • 8–11...
Page 146: Remote Aux Panel Gpi Programming
With the GPI programming mode in effect, the first eight crosspoints on each panel allow you to set the selected panel’s group and offset, as indicated below. 8–12 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 147: Field Dominance
When programming for this panel is complete, press SEL in the System Control group on the Synergy 100 control panel to store all new settings and exit the programming mode. All Remote Aux Panels return to their normal operating mode and each panel’s new “group and offset”...
Page 148 Press 1. Cancel to exit the menus safely, without making any changes. The system • returns to the previously stored settings. This completes the procedure to set up the Field Dominance feature for the Synergy 100 switcher. 8–14 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 149: Personality Setup
Personality Setup The Personality Menu for the Synergy 100 provides users with the ability to enable transition previews, select which output you want your Overlay displayed on, set the switcher’s timeout interval, and customize the DSK operation and MENU button behavior of their switcher.
Page 150: Dsk Drop
Press 1. Cancel to exit the menus safely, without making any changes. The system • returns to the previously stored settings. This completes the procedure to set the DSK Drop feature. 8–16 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 151: Sleep Time
Previous Down Accept Personality Menu Set the length of time (in minutes) for the Synergy 100 to fall asleep as follows: Press 2. Sleep Time. • Operating The time will change color to indicate that it is active and can be changed.
Page 152: Menu Button Setup
It provides a quick and easy method of enabling the Editor without having to access the Effects Menu. Use the following procedure to program the MENU button on the Synergy 100 control panel: Navigate to the Personality Menu as follows: •...
Page 153: Auto Recall Setup
When the GPI Mode is Enabled, the GPI Outputs can be triggered from the Effects Control buttons. Refer to the section “Setting Up GPI Outputs” on page 8-34 for GPI configuration details. Synergy 100 Installation Guide (v16.10-S100) Additional Installation Setups • 8–19...
Page 154: Show Knob Values Mode Setup
Press 1. Cancel to exit the menus safely, without making any changes. The system returns to the previously stored settings. This completes the procedure to enable the Show Knob Values mode. 8–20 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 155: Gpi Setup Menu Tree
GPI Setup Menu Tree The following figure illustrates the portion of the menu tree that is used for GPI setup procedures. Use this figure for reference throughout these sections. Main Menu - Synergy 100 vX.XX-S100 0. Effects 5. Disk 1. Inputs 6.
Page 156: Standard Frame Gpi Input Worksheet
“Standard Frame GPI Input Worksheet” on page 13-4 to make extra copies. Standard Frame GPI Input Worksheet Standard Frame GPI Function Area Polarity Type Input # sample GPI Input #1 AutoTrans Edge sample GPI Input #2 High Level 8–22 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 157: Setting Up Frame Gpis
The Frame GPIs will not function unless they are enabled in the Effects Menu. Refer to the section, “Effects Functions” in Chapter 8 of the Synergy 100 Operation Guide. The Frame GPIs Setup Menu allows you to set up your 12 “standard” Frame GPI input ports.
Page 158 None — Use this option to perform no function when an incoming pulse is received from an external source. • Press the right SEL button to accept the new settings. 8–24 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 159 GPI. Refer to your source device’s Installation Manual for details on the specific type of GPI pulse that each device provides.You can choose between the following: Synergy 100 Installation Guide (v16.10-S100) Additional Installation Setups • 8–25...
Page 160: Standard Gpi Connections
Standard GPI Connector type: 25-pin “D” SUB Female • GPI In 1-12: TTL-compatible inputs • Run all GPI cables in accordance with good engineering practice and ensure that the cable will not be subjected to physical abuse. 8–26 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 161: Setting Up Remote Aux Panel Gpis
Each Aux Panel provides 8 GPI input ports. These GPIs are completely separate from and are available in addition to those already provided on the frame. The GPI capability is not available on first-generation remote panels from Ross Video. •...
Page 162 Panel #4, Offset 3, GPI 4 Panel #4, Offset 3, GPI 5 Panel #4, Offset 3, GPI 6 Panel #4, Offset 3, GPI 7 Panel #4, Offset 3, GPI 8 8–28 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 163 Panel #8, Offset 7, GPI 4 Panel #8, Offset 7, GPI 5 Panel #8, Offset 7, GPI 6 Panel #8, Offset 7, GPI 7 Panel #8, Offset 7, GPI 8 Synergy 100 Installation Guide (v16.10-S100) Additional Installation Setups • 8–29...
Page 164: Remote Aux Panel Gpi Connection
Use the following procedure to configure your remote Aux GPIs: Navigate to the GPIs Menu as follows: Press MENU to display the Main Menu. • • Press 3. GPIs to display the GPIs Menu. 8–30 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 165 Use the UP ARROW or DOWN ARROW (1 or 10) buttons to select the Aux Bus • output, between 3 and 10, that you wish to override. • Press the right SEL button to accept the new settings. Synergy 100 Installation Guide (v16.10-S100) Additional Installation Setups • 8–31...
Page 166 This completes the procedure to configure your remote Aux GPIs. You must repeat the procedure for each remote GPI that you wish to assign. 8–32 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 167 “normal” assignment. All GPI trigger types act as an override of the actual crosspoint selected, but can also be cancelled (overridden) simply by pressing another crosspoint. Synergy 100 Installation Guide (v16.10-S100) Additional Installation Setups • 8–33...
Page 168: Setting Up Gpi Outputs
Use the UP ARROW or DOWN ARROW (1 or 10) buttons to select a GPI • number between 1 and 12. • Press the right SEL button to accept the new settings. 8–34 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 169 • Press 1. Cancel to exit the menus safely, without making any changes. The system returns to the previously stored settings. This completes the procedure to configure a GPI Output. Synergy 100 Installation Guide (v16.10-S100) Additional Installation Setups • 8–35...
Page 170 8–36 • Additional Installation Setups Synergy 100 Installation Guide (v16.10-S100)
Page 171: Completing Setup
• Disk Menu Tree • About the Synergy File Storage System • Saving Configurations • Recalling Configurations • Restoring Factory Default Settings • Recall Factory Procedure • When Configuration is Complete Synergy 100 Installation Guide (v16.10-S100) Completing Setup • 9–1...
Page 172: Disk Menu Tree
Disk Menu Tree The following figure illustrates the portion of the menu tree that is used for saving and recalling switcher setups. Use this figure for reference during the following procedures. Main Menu - Synergy 100 vX.XX-S100 Disk 0. Effects 5.
Page 173: About The Synergy File Storage System
About the Synergy File Storage System The Synergy 100 file storage system arranges those portions of the switcher that are software-configurable (and user-configurable) into several categories of registers. • Memory Registers This category stores and recalls MLE settings or “snapshots” of the switcher MLE. A memory register can be programmed in the System Control group.
Page 174: Notes On Using A Usb Key
• You may receive a “USB UPG FAIL” error message when the Synergy 100 control panel is powered on. Should you receive this error message, contact Ross Video Technical Support for instructions on how to correct the error.
Page 175 Upgrading Software Using a USB Key Please note: • Synergy 100 systems released before version 16 are able to load version 16 or later software, and revert back to earlier versions. • If you have received a Synergy 100 system with version 16 software already loaded on it, you will not be able to load pre-version 16 software onto it regardless of whether you have a USB port or floppy disk drive.
Page 176: Saving Configurations
USB key. Because the Synergy 100 installation procedure covers such a wide variety of information, the pertinent data spans two categories of registers — Personality and Installation. As a result, both categories should be saved to a backup storage device.
Page 177 Synergy 100 switcher. • Insert a USB key into the USB port of the Synergy 100 switcher. You must wait 5 seconds after inserting the USB key into the USB port before you can save or recall registers to it.
Page 178 USB key, as well as the data on the next one you insert into the switcher. When the transfer is complete, eject the storage device from the switcher. 9–8 • Completing Setup Synergy 100 Installation Guide (v16.10-S100)
Page 179 Remember that you can use multiple disks or USB keys for different switcher setup configurations. Refer to the section “Recalling Configurations” on page 9-10 for details on recalling files from a storage device. Synergy 100 Installation Guide (v16.10-S100) Completing Setup • 9–9...
Page 180: Recalling Configurations
Synergy 100 switcher. • Insert the USB key with the desired setups into the USB port of the Synergy 100 switcher. You must wait 5 seconds after inserting the USB key into the USB port before you can recall registers from it.
Page 181 Press 3. Recall Installation to recall Installation Registers. Registers are loaded from the file INSTALL.SYN. • Press 4. Recall 3D Wipes to recall 3D Wipes Registers. Registers are loaded from the file ST3DSEQ.SYN. Synergy 100 Installation Guide (v16.10-S100) Completing Setup • 9–11...
Page 182 When the transfer is complete, eject the storage device from the switcher. This completes the procedure for recalling your engineering and switcher setups. 9–12 • Completing Setup Synergy 100 Installation Guide (v16.10-S100)
Page 183: Restoring Factory Default Settings
If you wish to reset all control panel values. Recall Factory Procedure Important The Default Menu enables you to reset the Synergy 100 panel and the frame. All register and panel settings will be lost and reset to the factory defaults.
Page 184 Press 1. Cancel to not restore the default factory settings and return to the Default Menu. Restoring factory defaults. Please wait ... Reset Menu This completes the procedure to restore factory default values. 9–14 • Completing Setup Synergy 100 Installation Guide (v16.10-S100)
Page 185: When Configuration Is Complete
However, any changes will be ignored upon exiting the installation tree. Refer to the section “Frame Jumpers and Switches” on page 2-20 for additional details. Synergy 100 Installation Guide (v16.10-S100) Completing Setup • 9–15...
Page 186 9–16 • Completing Setup Synergy 100 Installation Guide (v16.10-S100)
Page 187: Appendix A. Specifications
• Output Characteristics • Frame Pinouts • Control Panel Pinouts • Remote Aux Panel Pinouts • Aux Panel Programming Mode Summary Note All specifications are subject to change without notice. Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–1...
Page 188: Standard Components
Standard Components The following components are standard on all Synergy 1 frames used with Synergy 100 panels: • Complete Control Panel • 2 Pattern Generators • Wipes in Program/Preset • 8 Untimed Aux Buses • System Control Area • 100 Event Memory System •...
Page 189: Physical Characteristics
Desk cutout width 16.00" (40.64 cm) Desk cutout depth 13.25" (33.66 cm) Rack Frame Parameter Specification # Rack Units (RU) Width 19.00" (48.3 cm) Height 3.5" (8.9 cm) Depth 15.75" (40.0 cm) Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–3...
Page 190: Rack Frame Connector Types
12-pin detachable terminal block Important The cable for connecting the Synergy 100 Control Panel to the Synergy 1 Frame is not wired as a standard CAT5 ethernet cable. If you need a cable of a specific length, contact your Ross Video Representative for ordering information.
Page 191: Power Rating - Tallies
Ambient temperature range 0 - 40 degrees C Please note: • The video processing circuitry is air cooled. • The control panel is convection cooled (no fans) for silent operation. Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–5...
Page 192: Video Characteristics
Video Outputs Output Type Quantity Aux Bus Clean Feed (Optional) Total Outputs Aux 1 and 2 are not yet implemented. Please note: • All outputs are BNC Male, 75 ohm. 10–6 • Appendix A. Specifications Synergy 100 Installation Guide (v16.10-S100)
Page 193: Output Characteristics
All video outputs are 10-bit SMPTE 259M-C serial digital. • EDH is inserted into all video outputs except untimed Aux Buses and can be disabled (via jumper) on a per-output basis. Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–7...
Page 194: Pinouts
Female on Frame EDITOR Connector Pinouts Pin # RS-232 RS-422 Pin # RS-232 RS-422 TxA (Tx-) TxB (Tx+) RxB (Rx+) RxA (Rx-) Ground Ground Ground Ground Note: n/c = not connected 10–8 • Appendix A. Specifications Synergy 100 Installation Guide (v16.10-S100)
Page 195 Tally 11 Tally 4 Tally 12 Tally 5 Tally 13 Tally 6 Tally 14 Tally 7 Tally 15 Tally 8 Tally 16 Common Common Common Common Common Common Common Common Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–9...
Page 196 TxB (Tx+) RxB (Rx+) RxA (Rx-) Ground Ground Note: n/c = not connected PERIPHERAL 2A ONLY Connector Pinouts Pin # RS-232 Pin # RS-232 Ground Note: n/c = not connected 10–10 • Appendix A. Specifications Synergy 100 Installation Guide (v16.10-S100)
Page 197 RCV Data Shield – Drain Lamp +14V Xmit Data Shield – Drain Lamp +14V Xmit Data + Panel +9V Xmit Data - +14V Sense - +14V Sense + Outer Shield - Drain Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–11...
Page 198 Not Used 8-12V Input LGND LGND LGND LGND LGND LGND LGND LGND LGND LGND LGND LGND LGND LGND AGND LGND AGND AGND AGND AGND Reset In AGND TXDB TXDB RXDB RXDB 10–12 • Appendix A. Specifications Synergy 100 Installation Guide (v16.10-S100)
Page 199 The following table lists pinouts for the AC POWER connector. • Connector type: 3-Pin IEC Male Female on Cable Male on Frame AC POWER Connector Pinouts Pin # Function Pin # Function Neutral/Line 2 Ground Line Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–13...
Page 200: Control Panel Pinouts
If you have Iss. 2 of the Interface Card, Part #4100A-039, in your control panel, the 100/110 connector is female. Therefore, you will require a plug-to-plug adapter if you wish to use this connector for panel-to-frame communication. 10–14 • Appendix A. Specifications Synergy 100 Installation Guide (v16.10-S100)
Page 201 Not Used 8-12V Input LGND LGND LGND LGND LGND LGND LGND LGND LGND LGND LGND LGND LGND LGND AGND LGND AGND AGND AGND AGND Reset In AGND RXDB RXDB TXDB TXDB Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–15...
Page 202 Rating: Maximum of 10 VA (100 Vmax, 0.5 Amax) into a non-inductive load. • Format: Solid state relay contact closure to TALLY COMMON 16 COMMON COMMON COMMON 8 COMMON Male on Frame Female on Connector (Connector Supplied) 10–16 • Appendix A. Specifications Synergy 100 Installation Guide (v16.10-S100)
Page 203: Remote Aux Panel Pinouts
The table below lists pinouts for the Remote Aux Panel GPI connector. • Connector type: 9-pin “D” SUB Female • Format: Active low, short-to-ground to activate Male on Cable Female on Remote Aux Panel Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–17...
Page 204 Male on Cable Female on Remote Aux Panel Aux Panel J1 Connector Pinouts Pin # Function Pin # Function RxA (Rx-) TxB (Tx+) RxB (Rx+) RESET (Out) TxA (Tx-) Ground 10–18 • Appendix A. Specifications Synergy 100 Installation Guide (v16.10-S100)
Page 205 Male on Cable Female on Remote Aux Panel Aux Panel J5 Connector Pinouts Pin # Function Pin # Function TxA (Tx-) RxB (Rx+) TxB (Tx+) RESET (In) RxA (Rx-) Ground Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–19...
Page 206: Aux Panel Programming Mode Summary
(*2) lit. (*2) ASSIGN 1 Select Aux Bus Display/modify this panel’s rights to 10 to the respective 10 Aux Buses inclusive (Assignable Panels only) MLE PV Select MLE Preview 10–20 • Appendix A. Specifications Synergy 100 Installation Guide (v16.10-S100)
Page 207 (*6) Although the panel’s rights to Aux Buses 1 and 2 can be modified, it will have no effect on the switcher as Aux Buses 1 and 2 are not implemented. Synergy 100 Installation Guide (v16.10-S100) Appendix A. Specifications • 10–21...
Page 208 10–22 • Appendix A. Specifications Synergy 100 Installation Guide (v16.10-S100)
Page 209: Appendix B. Hardware Options
Touch the frame to dissipate static charge before removing boards from the frame and exercise proper grounding precautions when working on circuit boards. Synergy 100 Installation Guide (v16.10-S100) Appendix B. Hardware Options • 11–1...
Page 210: Hardware Option Overview
The following daughter cards and modules may be installed on the Frame CPU Board to provide optional Synergy 100 functionality: Important Do not open the Synergy 100 control panel without express instructions from Ross Video Technical Support • The Clean Feed option provides an additional “program” output that is derived from a different location than the standard program output.
Page 211: Clean Feed Installation
“Clean Feed Setup” on page 8-6 for instructions. Once complete, the selected signal appears on the CLEAN output connector on the rear of the chassis. This completes the procedure to install the Clean Feed option. Synergy 100 Installation Guide (v16.10-S100) Appendix B. Hardware Options • 11–3...
Page 212: Squeeze & Tease 2D Installation
Note If you have the Squeeze & Tease WARP option installed, refer to the Synergy 100 Squeeze & Tease 3D / WARP Owner’s Guide for complete installation and operation instructions. This section provides instructions for installing the Squeeze & Tease 2D option on the Synergy 1 Frame Board.
Page 213 When complete, carefully replace the Synergy 1 Frame Board into the chassis, and secure with the outer latches on the board edges. This completes the installation for the Squeeze & Tease 2D option. Synergy 100 Installation Guide (v16.10-S100) Appendix B. Hardware Options • 11–5...
Page 214: Floating Border Generator Installation
When complete, carefully replace the Synergy 1 Frame Board into the chassis, and secure with the outer latches on the board edges. This completes the installation for the Floating Border Generator option. 11–6 • Appendix B. Hardware Options Synergy 100 Installation Guide (v16.10-S100)
Page 215: Ultimatte Insider Installation
When complete, carefully replace the Synergy 1 Frame Board into the chassis, and secure with the outer latches on the board edges. This completes the installation for the Ultimatte Insider option. Refer to the Synergy 100 Operation Guide for operating instructions.
Page 216 11–8 • Appendix B. Hardware Options Synergy 100 Installation Guide (v16.10-S100)
Page 217: Appendix C. Diagnostics
Appendix C. Diagnostics In this Appendix This appendix provides information on the Synergy 100 panel diagnostic tools. The following topics are discussed: • Diagnostics Overview • Potentiometer Test • Fader Test • Positioner Test • Button Test • Lamp Test •...
Page 218: Diagnostics Overview
FAIL. This message advises you that a loop-back test has been performed on the Synergy 100 control panel, with the results being either a PASS or a FAIL. The purpose of the loop-back test is to ensure that proper communication exists between the control panel and the Synergy 1 frame.
Page 219: Fader Test
Press any pushbutton on the panel. This action causes the following information to appear in the 3 four-character displays: • In the Effects Control Group, Bttn appears in the display. Synergy 100 Installation Guide (v16.10-S100) Appendix C. Diagnostics • 12–3...
Page 220: Lamp Test
Press buttons in selected panel sections to test all lamps in those sections, as required. This completes the panel diagnostic tests. To exit diagnostic mode, press all three SEL buttons at the same time. 12–4 • Appendix C. Diagnostics Synergy 100 Installation Guide (v16.10-S100)
Page 221: Communication Port Monitoring
Use the Communication Port Monitoring Setup procedure to set up monitoring capabilities for the data transmitted and received through your communication ports. This function is provided as a troubleshooting tool to assist Ross Video Technical Support. Use the following procedure to configure the Communication Port Monitoring: Navigate to the Communication Menu as follows: •...
Page 222 Use the UP ARROW or DOWN ARROW (1 or 10) buttons to select the buffer location. • Press the right SEL button to accept the new settings. Press MENU to display the Installation Change Screen. 12–6 • Appendix C. Diagnostics Synergy 100 Installation Guide (v16.10-S100)
Page 223 This completes the procedures for setup of the Communication Port Monitoring function. If you require further information on the various options and their associated values, contact Ross Video Technical Support at the number listed in the front of this guide.
Page 224: Switcher Calibration
As you move the fader, you will see a series of numbers appear in the four-character displays in the Effects Control and System Control groups. • Calibration is complete when the limit values in these four-character displays no longer change. 12–8 • Appendix C. Diagnostics Synergy 100 Installation Guide (v16.10-S100)
Page 225 Brightness of all button and non-button (secret-til-lit and logo) LEDs is adjusted by rotating any knob on the panel. Adjust the brightness of only the LEDs in the Ross logo in the upper right-hand corner of the Synergy 100 control panel as follows: •...
Page 226 (as per Step 1), and then exiting it. You will again be asked if you wish to save the calibration, to which you can select Yes in the Mattes Group. This completes the procedure to calibrate the analog controls of the Synergy 100 switcher. 12–10 • Appendix C. Diagnostics...
Page 227: Appendix D. Installation Worksheets
This appendix provides worksheet tables to help plan and record switcher installation settings and wiring connections. The following worksheets are included: • Inputs • Outputs • Standard Frame GPI Inputs Synergy 100 Installation Guide (v16.10-S100) Appendix D. Installation Worksheets • 13–1...
Page 228: Input Worksheet
Auto Key Shaped Panel Tally Button Number sample 1 Other — sample 2 Alpha — 10 (Shifted) — Refer to the section “Input Worksheet” on page 4–2 for further details. 13–2 • Appendix D. Installation Worksheets Synergy 100 Installation Guide (v16.10-S100)
Page 229: Output Worksheet
AUX 3 AUX 4 AUX 5 AUX 6 AUX 7 AUX 8 AUX 9 AUX 10 CLEAN (Optional) Refer to the section “Output Connection” on page 4–7 for further details. Synergy 100 Installation Guide (v16.10-S100) Appendix D. Installation Worksheets • 13–3...
Page 230: Standard Frame Gpi Input Worksheet
Polarity Type sample GPI Input #1 AutoTrans Edge sample GPI Input #2 High Level Refer to the section “Standard Frame GPI Input Worksheet” on page 8–22 for further details. 13–4 • Appendix D. Installation Worksheets Synergy 100 Installation Guide (v16.10-S100)
Page 231: Glossary Of Terms Gl
Field — One half of a complete picture (or frame) interval containing all of the odd, or all of the even lines in interlaced scanning. One scan of a TV screen is called a “field”; two fields are required to make a complete picture (which is a “frame”). Synergy 100 Installation Guide (v16.10-S100) Glossary of Terms • GL–1...
Page 232 Matte Key — A key effect in which the fill video is matte, provided by one of the switcher’s matte generators. Memory — The memory feature provides storage and recall of complete switcher setups. GL–2 • Glossary of Terms Synergy 100 Installation Guide (v16.10-S100)
Page 233 Wipe — A transition from one video signal to another, in which the change proceeds according to the shape of a specific pattern. A moving transition line separates the two picture signals. Synergy 100 Installation Guide (v16.10-S100) Glossary of Terms • GL–3...
Page 234 GL–4 • Glossary of Terms Synergy 100 Installation Guide (v16.10-S100)
Page 235: Index
Backup system ............. 2-24 Menu............... 7-21 Basic troubleshooting..........3-8 protocol............7-14 BKGD, abbreviation ..........1-5 sub-menu access ..........7-21 Audio Cut, menu option........7-26 Audio Channel 1 assignment......7-21 autokey setup............ 6-7 Synergy 100 Installation Guide (v16.10-S100) Index • IX–1...
Page 236 ..............2-10 clean feed setup ..........8-6 output .............. 2-10 Clean Feed peripheral 1 group..........2-9 aux panel programming mode ......8-12 peripheral 2 group........... 2-10 connector ............2-10 PGM1, PGM2..........2-10 IX–2 • Index Synergy 100 Installation Guide (v16.10-S100)
Page 237 Custom Main Panel Cable........1-15 rear control panel..........2-6 Customer service..........1-16 rear layout, Aux panel ........2-17 Cutout dimensions, control panel......2-12 Ross 210/216 control panel ......2-6 Ross 210/216 frame panel ........ 2-9 Synergy control panel........2-9 D-A................. 1-5 tally, frame..........2-6 DA ................
Page 238 3-6 Effects Keyers ............1-7 specifications ..........10-3 Electronics Frame........... 1-4 switches ............2-20 Electronics frame, installation ......2-18 Synergy connector pinouts ......10-16 Encrypt code............2-30 Frame connector ............. 2-6 IX–4 • Index Synergy 100 Installation Guide (v16.10-S100)
Page 239 8-35 control panel ........... 2-12 GPI trigger DIP Switch SW7, installation enable ..... 2-22 High-Toggle............ 8-32 DIP Switch SW8, 3D software upgrade..2-21 Latch............... 8-32 DIP Switch SW8, software upgrade....2-23 Synergy 100 Installation Guide (v16.10-S100) Index • IX–5...
Page 240 ............5-4 Keyers............. 1-7 Inputs ............6-3 downstream..........1-7 installed options..........2-28 Effects ............... 1-7 Main..............6-3 Keys, navigation ............. 5-4 Menu Bttn option..........8-18 navigation ............5-4 options ............2-28 Outputs.............. 8-4 IX–6 • Index Synergy 100 Installation Guide (v16.10-S100)
Page 241 ............3-4 Ancillary data, field.......... 8-8 Monitoring, Communication Ports ...... 12-5 Ancillary data, image starts at ......8-8 Multi-panel flexibility ..........1-6 Ancillary data, mode ........8-8 Aspect............... 8-4 Clean..............8-6 Synergy 100 Installation Guide (v16.10-S100) Index • IX–7...
Page 242 Positioner, override setup ........8-30 Recall Power configurations from disk......... 9-10 connector, frame ..........2-8 configurations from USB key......9-10 consumption specifications....10-4 10-5 factory procedure ..........9-13 controls and indicators........2-7 Reference Connection ........3-4 IX–8 • Index Synergy 100 Installation Guide (v16.10-S100)
Page 243 Sliding Shelf control panel connector ........2-6 installation ............2-14 frame panel connector ........2-9 option.............. 2-14 Ross Video catalog..........1-15 Slots, Synergy ............1-11 RU ................1-5 Software options menu ..........2-28 Synergy 100 Installation Guide (v16.10-S100) Index • IX–9...
Page 244 ........2-29 calibration ............12-8 menu ..............6-5 configuration, recall from storage device ..9-10 TD................1-5 configuration, save to storage device ....9-6 Technical Support..........1-16 timeout .............. 3-8 Terms ..............1-4 IX–10 • Index Synergy 100 Installation Guide (v16.10-S100)
Page 245 ..........2-26 User ................ 1-4 VCR ............... 1-5 Verification input..............4-4 outputs .............. 4-8 Version, software upgrade........2-25 Video characteristics ..........10-6 input specifications......... 10-6 output characteristics........10-7 output specifications........10-6 Synergy 100 Installation Guide (v16.10-S100) Index • IX–11...
Page 246 IX–12 • Index Synergy 100 Installation Guide (v16.10-S100)

Ross Synergy 100 Installation Manual

Introduction

Installation

Preliminary Cabling and Check

Preliminary Video Installation

Using the Menu System

BNC Configuration and Check

Communication Setup

Additional Installation Setups

Completing Setup

Appendix A. Specifications

Appendix B. Hardware Options

Appendix C. Diagnostics

Appendix D. Installation Worksheets

Glossary of Terms GL

Index

Quick Links

Installation Guide

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ross Synergy 100

Summary of Contents for Ross Synergy 100
