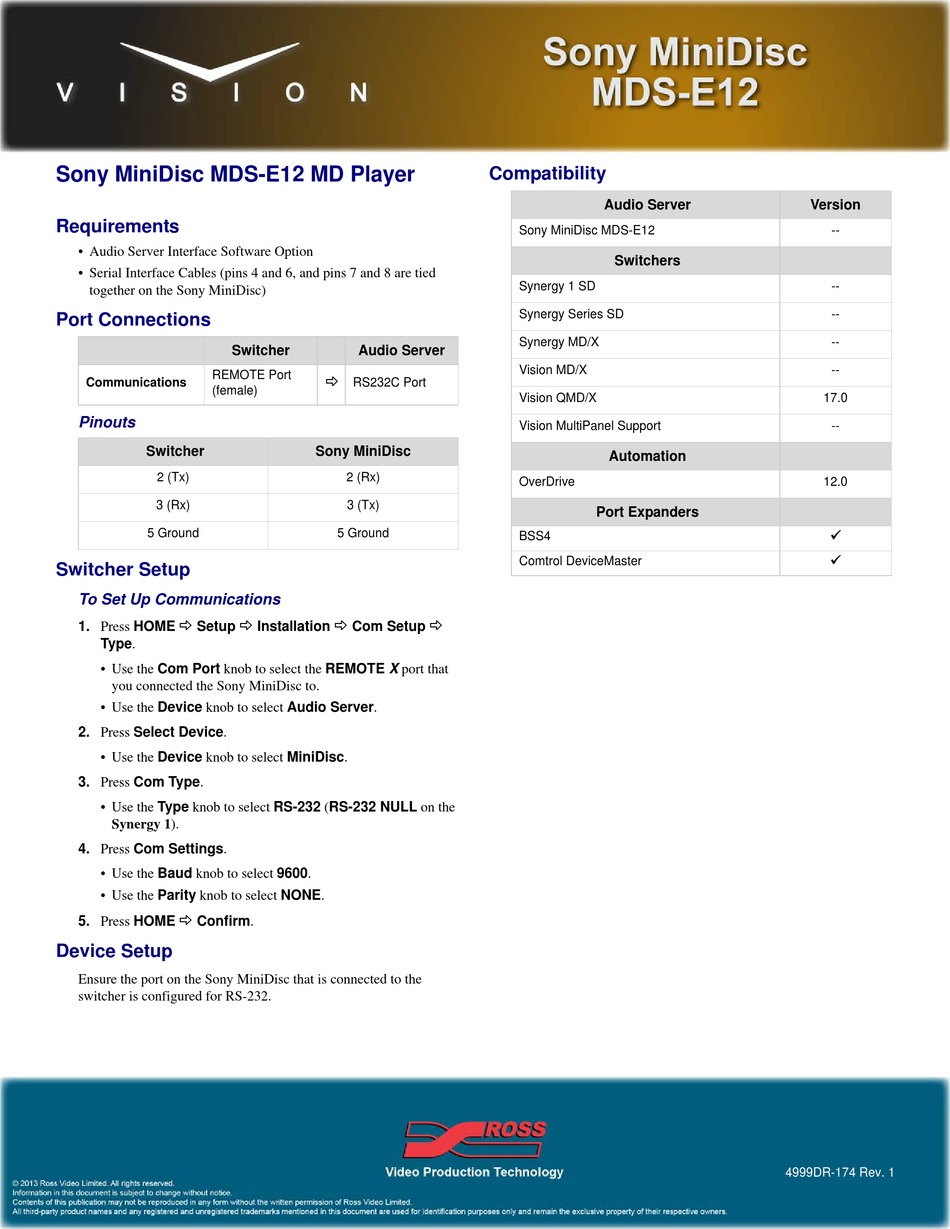

Sony MiniDisc MDS-E12 MD Player
Requirements
• Audio Server Interface Software Option
• Serial Interface Cables (pins 4 and 6, and pins 7 and 8 are tied
together on the Sony MiniDisc)
Port Connections
Switcher
REMOTE Port
Communications
(female)
Pinouts
Switcher
2 (Tx)
3 (Rx)
5 Ground
Switcher Setup
To Set Up Communications

1. Press HOME Setup
Type.
• Use the Com Port knob to select the REMOTE X port that
you connected the Sony MiniDisc to.
• Use the Device knob to select Audio Server.
2. Press Select Device.
• Use the Device knob to select MiniDisc.
3. Press Com Type.
• Use the Type knob to select RS-232 (RS-232 NULL on the
Synergy 1).
4. Press Com Settings.
• Use the Baud knob to select 9600.
• Use the Parity knob to select NONE.

5. Press HOME Confirm.
Device Setup
Ensure the port on the Sony MiniDisc that is connected to the
switcher is configured for RS-232.
Audio Server

RS232C Port
Sony MiniDisc
2 (Rx)
3 (Tx)
5 Ground
 
Installation Com Setup
Compatibility
Audio Server
Sony MiniDisc MDS-E12
Synergy 1 SD
Synergy Series SD
Synergy MD/X
Vision MD/X
Vision QMD/X
Vision MultiPanel Support
Automation
OverDrive
Port Expanders
BSS4
Comtrol DeviceMaster

Switchers
4999DR-174 Rev. 1
Version
--
--
--
--
--
17.0
--
12.0


