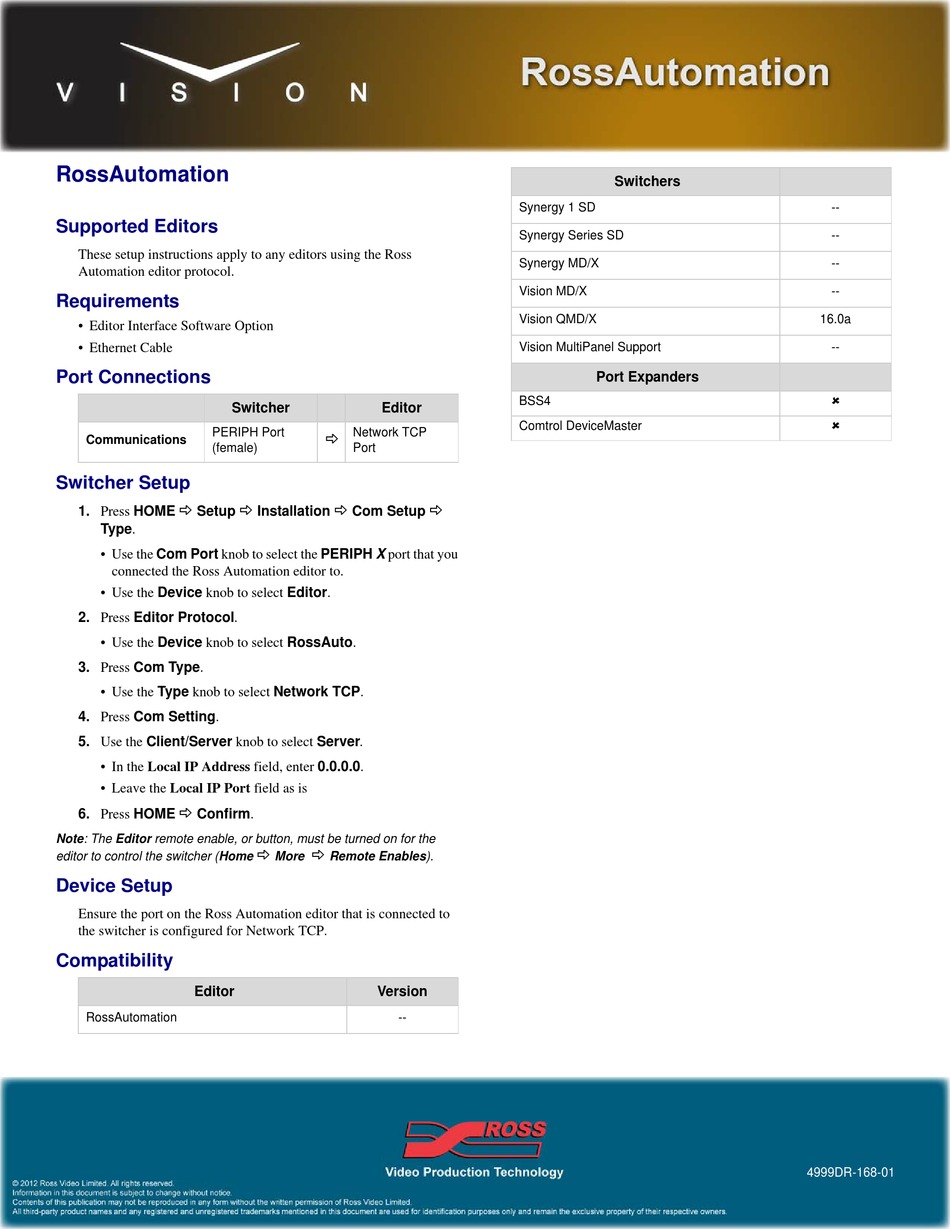

RossAutomation
Supported Editors
These setup instructions apply to any editors using the Ross
Automation editor protocol.
Requirements
• Editor Interface Software Option
• Ethernet Cable
Port Connections
Switcher
PERIPH Port
Communications
(female)
Switcher Setup

1. Press HOME Setup
Type.
• Use the Com Port knob to select the PERIPH X port that you
connected the Ross Automation editor to.
• Use the Device knob to select Editor.
2. Press Editor Protocol.
• Use the Device knob to select RossAuto.
3. Press Com Type.
• Use the Type knob to select Network TCP.
4. Press Com Setting.
5. Use the Client/Server knob to select Server.
• In the Local IP Address field, enter 0.0.0.0.
• Leave the Local IP Port field as is

6. Press HOME Confirm.
Note: The Editor remote enable, or button, must be turned on for the
editor to control the switcher (Home
Device Setup
Ensure the port on the Ross Automation editor that is connected to
the switcher is configured for Network TCP.
Compatibility
Editor
RossAutomation
Editor
Network TCP

Port
 
Installation Com Setup
 
More Remote Enables).
Version
--
Synergy 1 SD
Synergy Series SD
Synergy MD/X
Vision MD/X
Vision QMD/X
Vision MultiPanel Support
Port Expanders
BSS4
Comtrol DeviceMaster

Switchers
--
--
--
--
16.0a
--


4999DR-168-01
