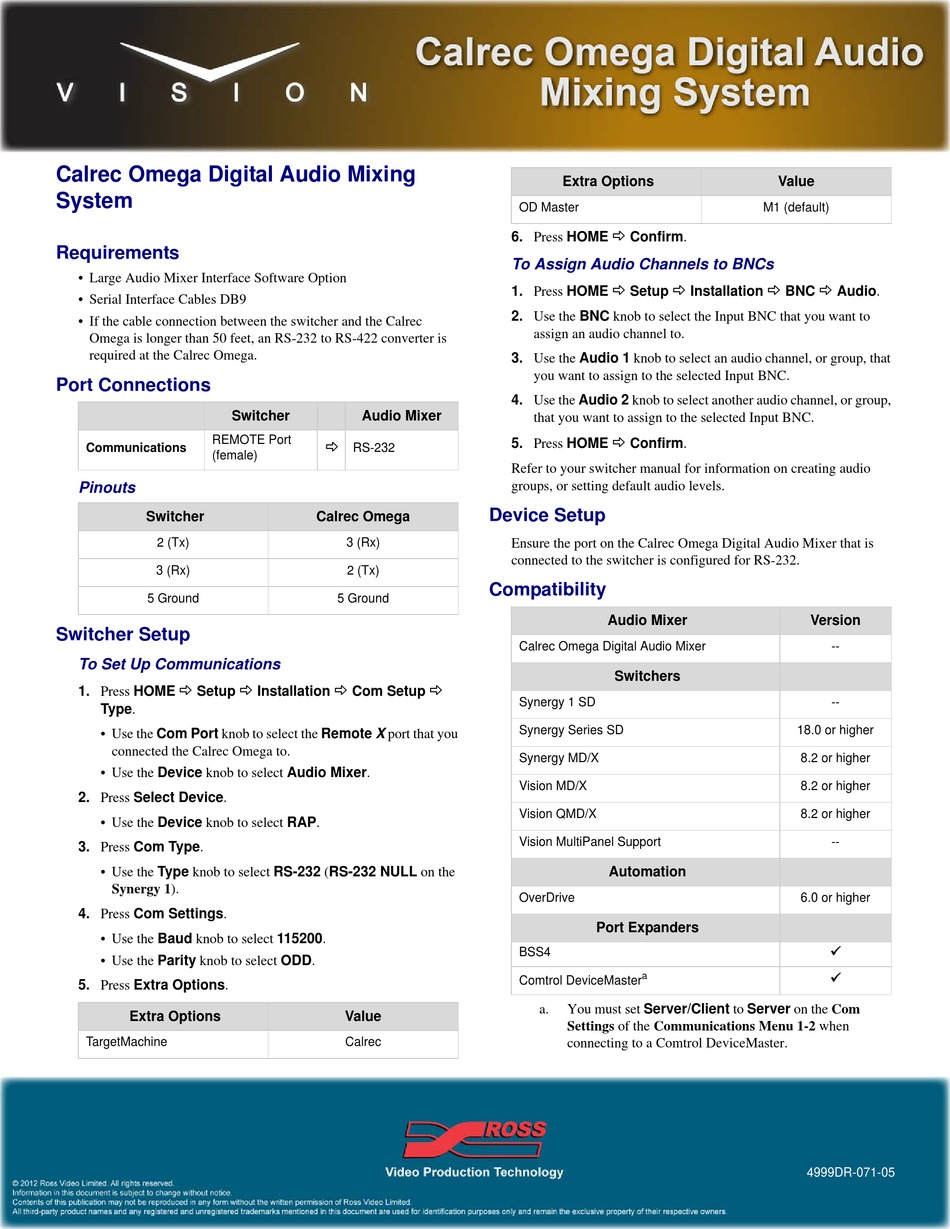

Ross Synergy SD Series Manual

Calrec Omega Digital Audio Mixing
System
Requirements
• Large Audio Mixer Interface Software Option
• Serial Interface Cables DB9
• If the cable connection between the switcher and the Calrec
Omega is longer than 50 feet, an RS-232 to RS-422 converter is
required at the Calrec Omega.
Port Connections
Switcher
REMOTE Port
Communications
(female)
Pinouts
Switcher
2 (Tx)
3 (Rx)
5 Ground
Switcher Setup
To Set Up Communications

1. Press HOME Setup
Type.
• Use the Com Port knob to select the Remote X port that you
connected the Calrec Omega to.
• Use the Device knob to select Audio Mixer.
2. Press Select Device.
• Use the Device knob to select RAP.
3. Press Com Type.
• Use the Type knob to select RS-232 (RS-232 NULL on the
Synergy 1).
4. Press Com Settings.
• Use the Baud knob to select 115200.
• Use the Parity knob to select ODD.
5. Press Extra Options.
Extra Options
TargetMachine
Audio Mixer

RS-232
Calrec Omega
3 (Rx)
2 (Tx)
5 Ground
 
Installation Com Setup
Value
Calrec
Extra Options
OD Master
6. Press HOME
To Assign Audio Channels to BNCs
1. Press HOME
2. Use the BNC knob to select the Input BNC that you want to
assign an audio channel to.
3. Use the Audio 1 knob to select an audio channel, or group, that
you want to assign to the selected Input BNC.
4. Use the Audio 2 knob to select another audio channel, or group,
that you want to assign to the selected Input BNC.
5. Press HOME
Refer to your switcher manual for information on creating audio
groups, or setting default audio levels.
Device Setup
Ensure the port on the Calrec Omega Digital Audio Mixer that is
connected to the switcher is configured for RS-232.
Compatibility
Audio Mixer
Calrec Omega Digital Audio Mixer

Synergy 1 SD
Synergy Series SD
Synergy MD/X
Vision MD/X
Vision QMD/X
Vision MultiPanel Support
Automation
OverDrive
Port Expanders
BSS4
Comtrol DeviceMaster
You must set Server/Client to Server on the Com
a.
Settings of the Communications Menu 1-2 when
connecting to a Comtrol DeviceMaster.
Value
M1 (default)

Confirm.
  
Setup Installation BNC

Confirm.
Switchers
a

Audio.
Version
--
--
18.0 or higher
8.2 or higher
8.2 or higher
8.2 or higher
--
6.0 or higher


