- Page 1 RIGOL English Quick Guide 中文 DL3000 Programmable DC Electronic Load Feb. 2017 RIGOL TECHNOLOGIES, INC.
-
Page 3: Guaranty And Declaration
RIGOL products are covered by P.R.C. and foreign patents, issued and pending. RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company’s sole decision. Information in this publication replaces all previously released materials. -
Page 4: General Safety Summary
It calls attention to an operation, if not correctly performed, could result in potential injury or hazard. CAUTION It calls attention to an operation, if not correctly performed, could result in damage to the product or other devices connected to the product. DL3000 Quick Guide... - Page 5 RIGOL Safety Symbols on the Product: English Hazardous Safety Protective Earth Chassis Ground Test Ground Voltage Warning Terminal DL3000 Quick Guide...
-
Page 6: Care And Cleaning
To avoid damage to the instrument, do not expose it to caustic liquids. WARNING To avoid short-circuit resulting from moisture or personal injuries, ensure that the instrument is completely dry before connecting it to the power supply. DL3000 Quick Guide... -
Page 7: Document Overview
Power key. Content Conventions in this Manual The number of channels and the rated values of input parameters for DL3000 are listed in the following table. Unless otherwise specified, this manual takes DL3031A as an example to illustrate the functions and operation methods of the DL3000 series. -
Page 8: General Inspection
The consigner or carrier shall be liable for the damage to the instrument resulting from shipment. RIGOL would not be responsible for free maintenance/rework or replacement of the instrument. 2． Inspect the instrument... -
Page 9: Product Overview

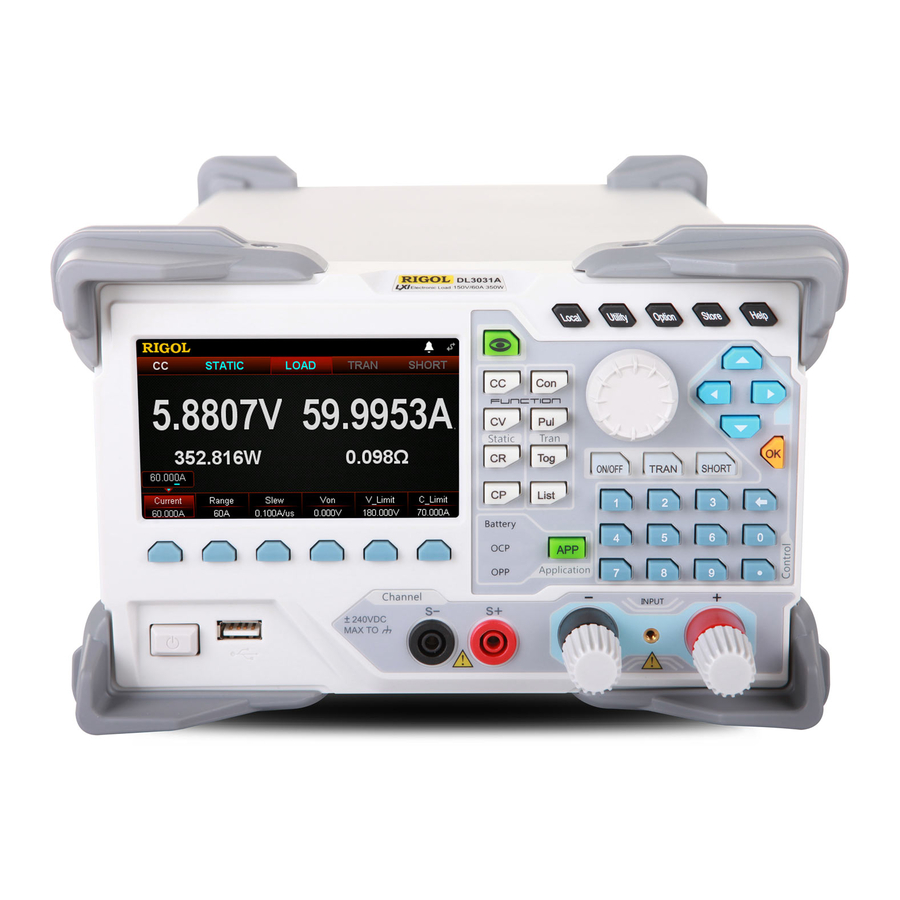

RIGOL Product Overview English DL3000 is a cost-effective programmable DC electronic load with high performance. With a user-friendly interface and superb performance specifications, DL3000 provides various interfaces for remote communication to meet your diversified test requirements. It can be widely used in various industries, such as automotive electronics, aerospace, and fuel cells. - Page 10 Output AC Power Cord Terminal Connector Fuse Voltage Monitoring Fuse Rating Output RS232 Terminal Interface USB DEVICE Figure 2 Rear Panel System Status Icons Company Logo Function State Actual Input Values Menu Item Figure 3 Main Interface DL3000 Quick Guide...
-
Page 11: Turn-On Checkout
English To Connect to Power Supply Two kinds of AC power inputs are supported by DL3000 series electronic load. When the DL3000 series is connected to different power sources, the AC selector setting on its rear panel is different, as shown in Table 1. -
Page 12: To Power On The Instrument
If the instrument passes the self-test, the welcome interface is displayed; otherwise, self-test failure information will be displayed. At this time, please contact RIGOL distributors. CAUTION Ensure that the AC selector setting on the rear panel of the instrument matches the actual AC input voltage, otherwise, the electronic load will be burned out. -
Page 13: To Use The Built-In Help System
Exit the current help information interface When the help information is displayed, press OK to exit the current help information interface and return to the previous interface. DL3000 Quick Guide... -
Page 14: Parameter Setting Method
In the main interface, press the specified menu key to switch the parameter focus. Press the Left/Right arrow key to move the cursor to a desired position. Press the Up/Down arrow key or rotate the knob to modify the value. DL3000 Quick Guide... -
Page 15: Remote Control
Remote Control English DL3000 electronic load can be connected to the PC via the USB, LAN, GPIB, or RS232 interface to build communication and realize remote control. The remote control can be realized by using SCPI (Standard Commands for Programmable Instruments) commands.
