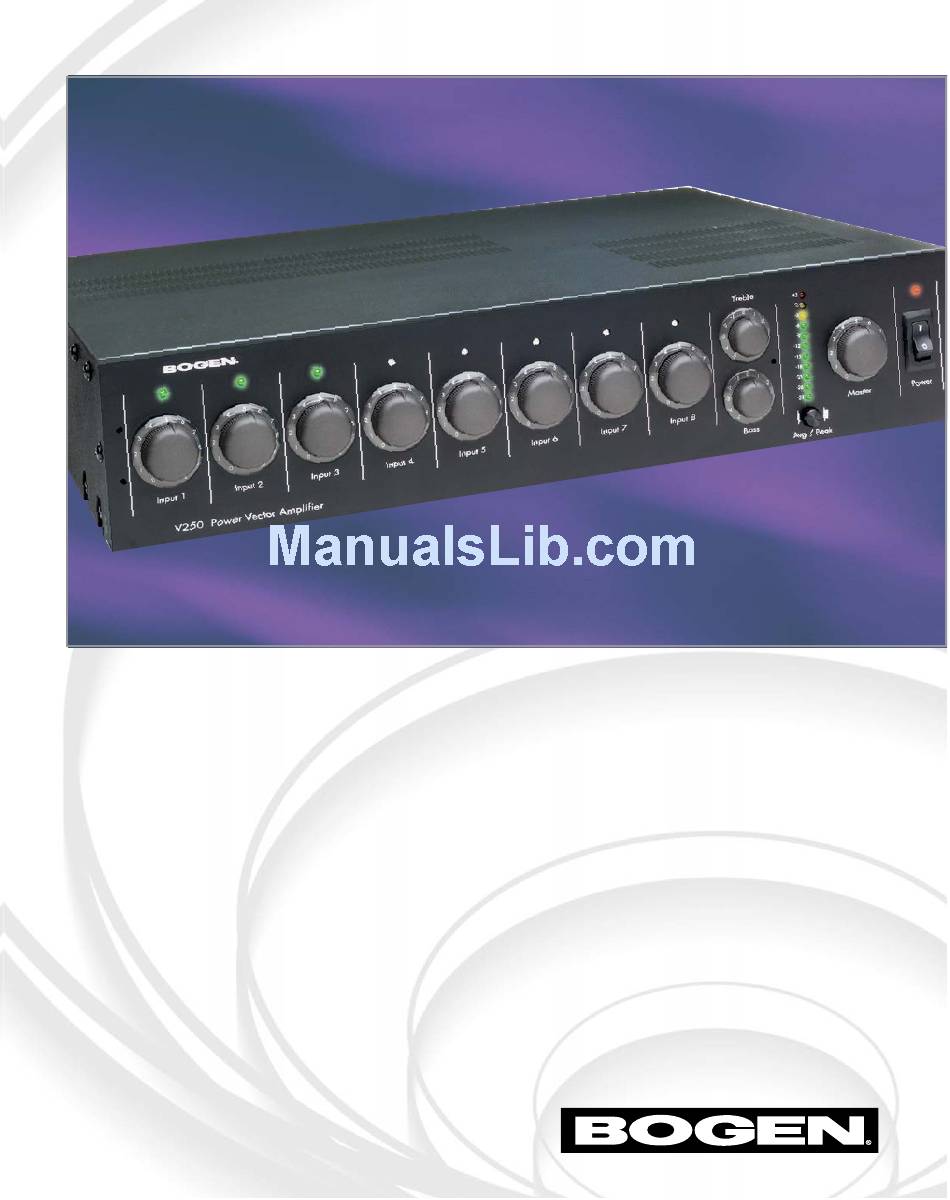

- Page 1 Amplifier Models: V250, V150, V100, V60, V35 Wall-Mount Amplifier Models: WV250, WV150, WV100 Mixer Model: VMIX Power Vector Series Modular Amplifiers & Mixers • Convenient Signal Processing • Input Flexibility • More Power!
-
Page 2: Power Handling
Power Vector Amplifier Product Features Bogen's Power Vector modular input amplifier series consists of five models, ranging from 35 to 250 watts of power. Each model accepts up to 8 plug-in modules with 4 levels of priority between modules. Two module bays also accept signal-processing output modules. - Page 3 Wide Selection of Advanced Plug-In Modules Bogen's new advanced input modules provide a wide range of input types allowing for custom configuration of inputs - in both type and number - for a particular application. Modules are fully-featured for their application, many with Bass/Treble, Gain, Music Ducking, Mute Send and Mute Receive.
-
Page 4: Input Modules
Fade back from mute • Screw terminal connections Each amplifier can accept up to 8 Bogen input modules, with user-settable priority levels. Plug-in modules support different input options including the ability to interface to balanced and unbalanced high- and low-level inputs, stereo or mono, telephone PBXs, and microphones. -
Page 5: Front Panel
Signal/Clip Indicators A two-color LED indicates the audio activity for each of 8 input channels. Green - The input’s signal is present on mix bus. - The channel’s input is being overdriven. 8 Independent Inputs Each input source is individually controlled by a corresponding volume control knob for complete system customization. - Page 6 Other Available Power Vector Products... Wall-Mount Power Vector Amplifier The Wall-Mount Power Vector Series combines up to 8 modular inputs and 2 signal-processing outputs to meet various application requirements. The amplifier’s convenient and efficient wall-mount design provides a protected and accessible audio system in a permanent and inconspicuous mounting. •...
-
Page 7: Performance Specifications
AC Current V250: 5.5A; V150: 3.5A; V100: 2.0A; V60: 1.3A; V35: 0.6A Product Weight V250: 40 lb.; V150: 35 lb.; V100: 32 lb.; V60: 28 lb.; V35: 24 lb. Dimensions 17-1/4" W x 3-7/8" H x 14-3/4" D * Typical, @ 1 kHz/0.1% THD/4 ohms ** THD+N, Maximum, full bandwidth @ FRP †... - Page 8 50 Spring Street Ramsey, NJ 07446, U.S.A. Tel: 201-934-8500 • Fax: 201-934-9832 www.bogen.com 54-9260-01B 0708 © 2007 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice.
