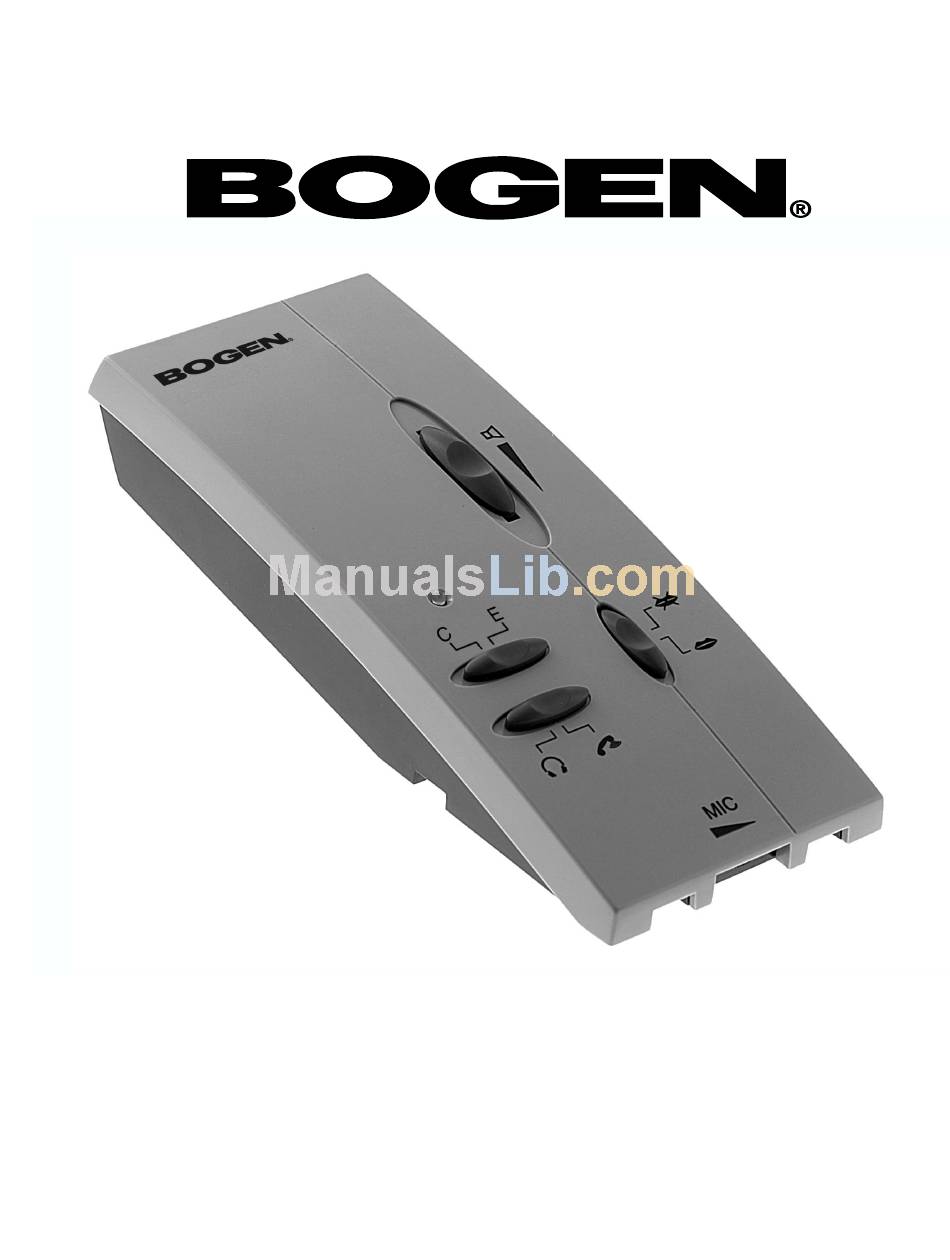

- Page 1 U S E R G U I D E HAA20 ELEPHONY EADSET MPLIFIER...
- Page 2 (sleep mode) when the unit is not being used. It will automatically resume normal operation when an incoming signal is detected. The HAA20 will automatically "learn" your telephone handset configuration. Low battery and function LED indicator. - LED "off": Standby or power down mode - LED "on": Mute switch is on...
-
Page 3: Front Panel
CONTENTS 1. Telephone cable 2. Rapid Headset Disconnect/Reconnect cable 3. HAA20 Amplifier Box 4. AA batteries, 2 pcs BACK PANEL 9. Headset Jack 10. Telephone Handset Jack 11. Telephone Jack 12. Ampbox Buzzer location 13. Scan Switch FRONT PANEL 1. Speaker Volume Control 2. -
Page 4: Installation
If performance is acceptable, skip the remaining steps in this section. If performance is not acceptable, follow these steps for the HAA20 to optimize its setup for your particular telephone. 2. Set the Telephone Type switch (#4) on the front panel to the “E” position. -
Page 5: Manual Mode
Handset position. 2. Remove the telephone handset from its cradle and dial the number of a person to assist you in configuring the HAA20 by listening to the quality of your voice as you go through the seven different settings. -
Page 6: Operation
If the performance is not acceptable, push the scan switch again within 12 seconds for the next setting and test again. Repeat this process until you find the setting that gives the HAA20 acceptable performance. The unit will continuously rotate through the available settings as the Scan switch is pressed. -
Page 7: Technical Assistance
TECHNICAL ASSISTANCE Our Applications Engineering Department is available to assist you from 8:30 a.m. to 6:00 p.m. and on call until 8:00 p.m., Eastern Daylight Time, Monday through Friday. Call 1-800-999-2809, Option 2. This equipment complies with 47CFR Part 68. Registered equipment may not be used with Coin Telephone Lines. -
Page 8: Limited Warranty
Bogen has been advised of the possibility of such damages or losses. Products that are out of warranty will also be repaired by the Bogen Factory Service Department— same address as above or call 201-934-8500. The parts and labor involved in these repairs are warranted for 90 days when repaired by the Bogen Factory Service Department.
