Rugged Ridge 11703.03 Quick Start Manual

460 HORIZON DR. SUITE 100 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com
2
1
9
1. Basket Front Half
2. Basket Rear Half
3. Mounting Kit
4. Security Screw
5. Side Cover
6. Front Bar
Please read instructions carefully. The end user is fully responsible for assembly and installation of this product.
Do not carry more than 60 kg (132lbs) on this load carrier. Make sure the total load (cargo weight plus weight of bars)
does not exceed the car maximum load capacity.
Check the crossbar instructions or the car owner's manual for any restrictions about accessories used on the load bars.
The height of the cargo will affect the possibility to access low entrace spaces. The cargo will affect your driving
behavior.
Front and rear of long loads must be tied down to the front and rear of the vehicle using a solid part of the vehicle.
Failure to properly install this product and the bike on the carrier may cause damage to the car and bike and in the
worst case personal injury.
Do not modify any components of the product.
Do not use the product for other purposes than those for which they were designed.
Please respect the speed limit and adapt your speed to the condition of the road. Before leaving and at every stop,
please check that all parts are firmly tightened. During your trip, periodically check that your load is firmly attached.
Check periodically for signs of wear corrosion, and fatigue.
Remove your cargo basket before entering automatic car washes.
Use lubricant on the bolts to avoid corrosion.
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com

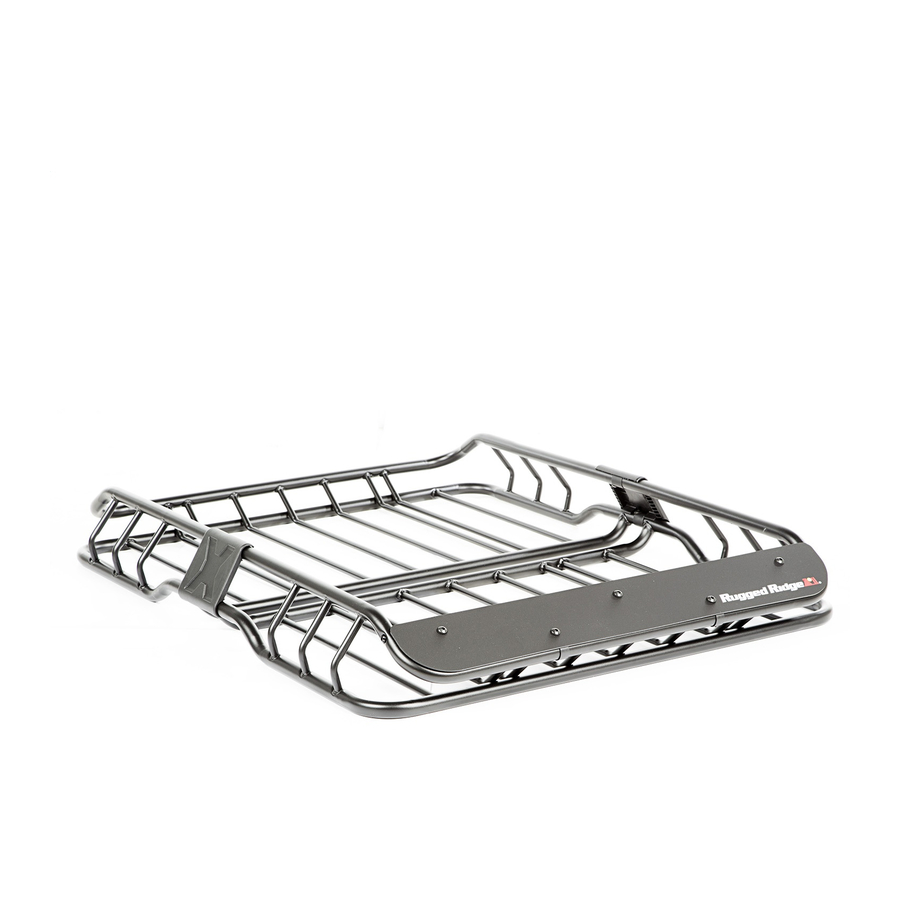

Roof Rack Basket
11
10
7

Components

Warnings/Compatabilites/Restrictions
OMIX-ADA
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Copyright © 2015 Omix-Ada
6
8
(1) 7. Deflector
(1) 8. Deflector Clamp
(4) 9. Long M6 Screw
(8) 10. Short M6 Screw
(2) 11. Washer
(1) 12. Allen Tool
TECHNICAL SUPPORT
®
, Inc.
®
4
3
5
Page 1/4
Part #11703.03
12
(1)
(5)
(2)
(9)
(5)
(1)
