Scanomat TopBrewer User Manual

Hide thumbs Also See for TopBrewer:
Table of Contents

Advertisement

Quick Links

Download this manual
User's manual

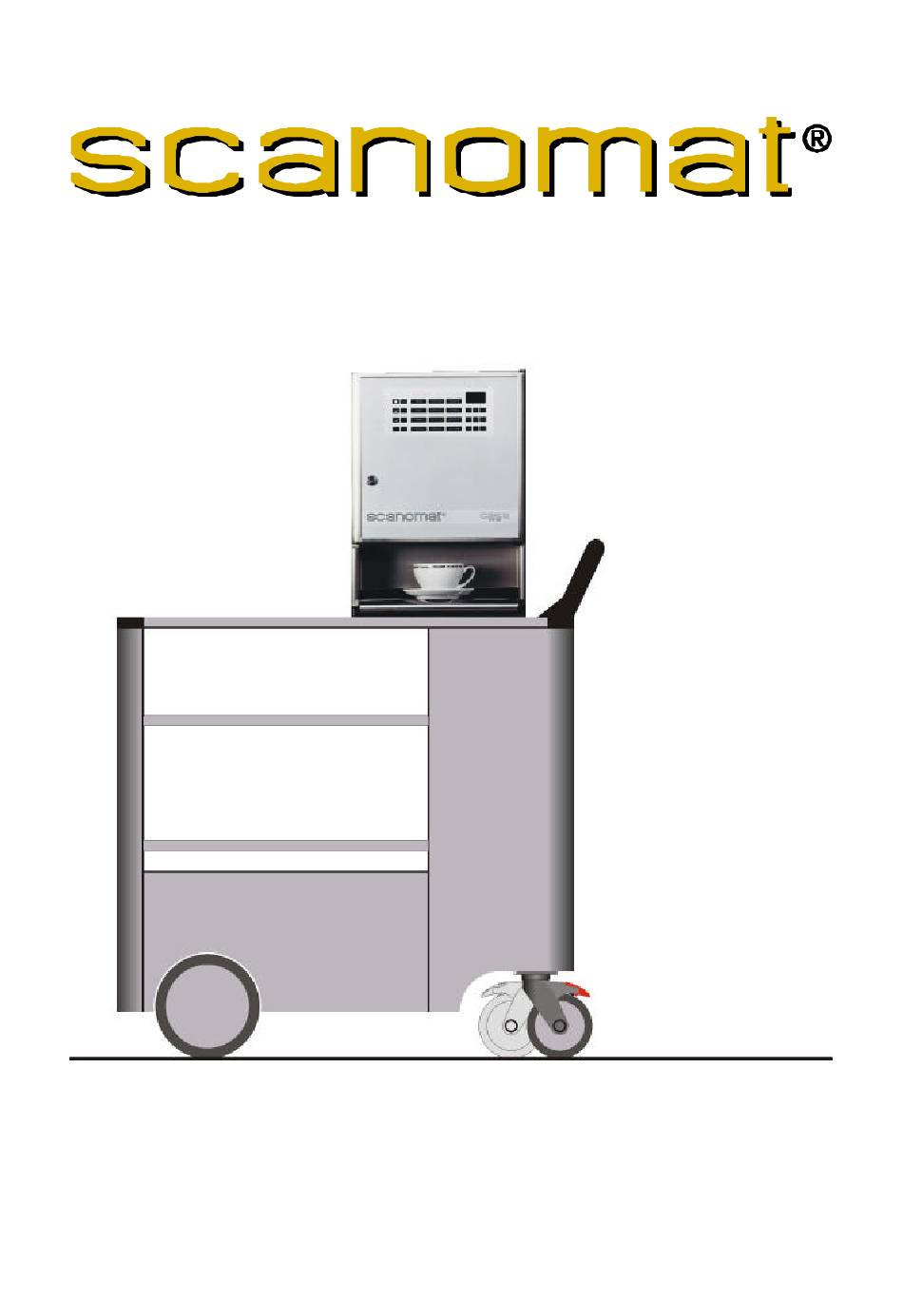

Café on the Spot
English edition UK (RCD)
Re-ordering No: 4300074
Version: 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TopBrewer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scanomat TopBrewer

Summary of Contents for Scanomat TopBrewer

  • Page 1 User’s manual Café on the Spot English edition UK (RCD) Re-ordering No: 4300074 Version: 1...
  • Page 3 We are pleased that you have chosen a Scanomat Coffee Brewer. Should you have any questions regarding the coffee brewer and the operation of it please do not hesitate to contact us. We are convinced that you will be pleased with your choice! Vibe Allé...
  • Page 5 Important Warning: Please be aware of the danger of scalding (in the dispensing area) when dispensing the various hot drinks. Warning: Before cleaning, servicing etc. that require the opening of the front door, the switch situated in the delivery area must be switched off. The brewer has been switched off when the display light turns off and the blower stops.

  • Page 6: Table Of Contents

    Contents Operation of the SCANOMAT Coffee Brewer ................1 Technical Specifications:........................2 General Drawing ...........................3 Installation.............................4 Water Connection ........................5 The display of the coffee brewer....................6 The keyboard of the coffee brewer ....................8 Initial start up of the coffee brewer ..................10 Normal use ..........................12 Brewing cups:.........................12...
  • Page 7 Product weighing: ........................21 Maintenance..........................22 Daily Maintenance:........................23 Charging………………………………………………………………………………………23 Chargin Procedure-during working hours.……………………………………………………23 Chargin Procedure-evening close down………………………………………………………23 Start-Up morning……………………………………………………………………………..24 Draining……………………………………………………………………………………….25 Preventive Maintenance.......................26 Trouble Shooting:........................27 Connection Chart "Coffee on the Spot"..................28...

  • Page 9: Operation Of The Scanomat Coffee Brewer

    Users manual Coffee on the Spot Operation of the SCANOMAT Coffee Brewer The Scanomat coffee and coffee speciality brewers are high technology brewers which by means of a micro processor controlled brew process dispense various first class quality coffee drinks.

  • Page 10: Technical Specifications

    Watertank: Temperature drop with full tank 3°C/h. Capacity: 125 cups (15 cl. cups) without water supply. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 11: General Drawing

    O Whipper blade T Mesh U Levelling legs Y Coin box (optional) Z Coin Mec. (optional) Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 12: Installation

    Users manual Coffee on the Spot Installation Service and repair is only to be carried out by service engineers educated by Scanomat. The coffee brewer is to be secured additionally in accordance with regulations. The coffee brewer must be earth connected (yellow/green conductor).

  • Page 13: Water Connection

    G+F). Before connecting the brewer draw off some buckets of water to clean the pipes. If the water quality is not top-quality we recommend that a Scanomat water filter is mounted. Fasten the hose nipple (C) with screws to the connecting nipple (B) (available in angle and straight ver- sion).

  • Page 14: The Display Of The Coffee Brewer

    Shows that a light (mild) drink has been selected.. INFORMATION Used to display temperature and functions, which do not have fixed symbols. FIELD Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...
  • Page 15 ADDITIONAL INFO Used during programming of timers. MAGNETIC CARD Used during reading magnetic keys: - CREDIT KEY and QUALITY KEY. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 16: The Keyboard Of The Coffee Brewer

    Used to confirm settings during programming of the coffee brewer. Used to adjust the active recipe version of the coffee brewer. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...
  • Page 17 COLD water system respectively. The availability of individual keys is also dependant on the customer related setting of the coffee brewer. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 18: Initial Start Up Of The Coffee Brewer

    When this is reached, the coffee brewer is ready for test. 4) Fill the ingredient bins of the coffee brewer. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...
  • Page 19 Activate all the different selections one by one to make sure, that all product augers have been active. The coffee brewer is now ready for use. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 20: Normal Use

    Each press on will increase the value by 1, which will be indicated in the display. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 21: Light

    The adjustments in brackets are optional and will therefor not be available in all coffee brewers. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...
  • Page 22 After adjusting the cup size, the display will show: 21 being the current strength for product 1 Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 23: Price

    Display will show number of drinks dispensed in SERVICE mode. The letter “S” will appear in front of the number. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 24: Timer Functions

    The display will now show the time with the hours flashing. e) Press to adjust these up and down respectively. f) Press to accept this value. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...
  • Page 25 "Func3" Means that the coffee brewer will lock out individual drinks in the programmed period. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 26: Adjusting Blocked Drinks In Timer Function 3

    The coffee brewer can be set to run with 24 hour format or 12 hour format (Am/Pm). When all 5 programmable timers have been adjusted as described above, the display will show: Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 27: Service Functions

    SERVCIE program is active and the display will show the total cup counter (example): Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 28: Erasable Counters

    SERVICE program. If the correct code is entered, the counters will be reset and the display will show: Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 29: Reading Out The Not Erasable Counters

    Press while the SERVICE program is active. The display will show: Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 30: Maintenance

    Make sure to switch off the machine on the Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...
  • Page 31 Fill the machine with ingredients for one day´s consumption only. It is of the utmost importance that you observe this recommendation as ingredients easily absorb moisture. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 32: Charging

    Push “clean” – the machine will then start a cleaning programme. c. When the machine has finished the cleaning programme, push the “service key” once again. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 33: Chargin Procedure-Evening Close Down

    When the machine has finished the cleaning programme, push the “service key” once again. Empty the drip tray, and wipe the machines with a damp cloth. Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 34: Start-Up Morning

    Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...

  • Page 35: Trouble Shooting

    (there must be no water looms inside the tube). Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...
  • Page 36 Users manual Coffee on the Spot Scanomat A/S Vibe Allé 3. Postboks 131 DK-2980 Kokkedal (Copenhagen) Reg.nr. 236.990 Tel: (+45) 49 18 18 00. Fax: (+45) 49 18 01 18...
