Scanomat TopBrewer Pro 2 Installation Manual

Scanomat TopBrewer Pro 2 Installation Manual

Dual grinder with pro fridge, chiller & deluxe ipad holder

Advertisement

Quick Links

Installation Guide - Pro 2 (Dual Grinder) with Pro Fridge, Chiller & Deluxe iPad
Holder
Version: - 0.03
Date: - 15/04/2020
Author(s): - J. Welch
Specification: - U.K. & ROI

Advertisement

loading
Need help?

Need help?

Do you have a question about the TopBrewer Pro 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Scanomat TopBrewer Pro 2

  • Page 1 Installation Guide - Pro 2 (Dual Grinder) with Pro Fridge, Chiller & Deluxe iPad Holder Version: - 0.03 Date: - 15/04/2020 Author(s): - J. Welch Specification: - U.K. & ROI...
  • Page 2: Table Of Contents

    Contents 2. Overview 3. Ventilation 4. Services – Electrical, water & waste requirements 5. Cupboard dimensions 6. Brita filter dimensions 7. Worktop cut out distance dimensions – Swan neck (faucet) & drip tray 8. Worktop cut out dimensions – Deluxe iPad 9.
  • Page 3: Overview

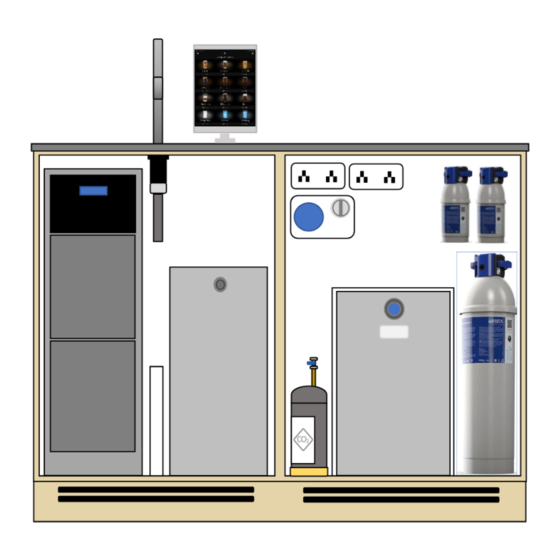

    OVERVIEW TopBrewer App on iPad Swan neck (Faucet) This illustration is to give a visual perspective of how the completed installation will look inside of the cupboards. Below is a list of MANDATORY pre-installation requirements before we can proceed with the instillation. 1.
  • Page 4: Ventilation

    Ventilation Ventilation is a mandatory requirement for the TopBrewer Failing to install the advised ventilation will prevent us from commissioning the equipment on installation & will also invalidate the warranty. The equipment generates heat which needs to dissipate from the cupboard units. To enable good air flow and circulation ventilation cut outs are required in the kick plates and on top of the cupboard doors as illustrated below.
  • Page 5 Services Electrics 2 x 13amp double socket for iPad, fridge & chiller 1 x 32amp single phase commando plug with isolator switch for TopBrewer Voltage: - 240vac Single phase Power: - 6.9Kw Current: - 29amp Waste 1 x Vertical Ø 40mm waste stack with standard u-bend or Hepvo valve trap Water 1 x Washing machine valve 15mm x ¾”...
  • Page 6: Cupboard Dimensions

    Cupboard Dimensions 570 - 600mm 600mm Depth Width & Height Page | 5...
  • Page 7: Brita Filter Dimensions

    Brita Filter Dimensions Purity C Quell ST C500 Purity C Quell ST C50 Purity C 1000AC 144 mm Ø 108 mm 88 mm Ø Ø Page | 6...
  • Page 8: Worktop Cut Out Distance Dimensions - Swan Neck (Faucet) & Drip Tray

    Work Top Cut Out Distance Dimensions – Swan neck (faucet) & drip tray 294 mm Ø 32mm IMPORTANT To achieve the correct cut out location for the Ø 32mm swan neck hole, you MUST measure 294mm from the inner left-hand side of the cupboard unit as illustrated above.
  • Page 9: Worktop Cut Out Dimensions - Deluxe Ipad

    Work top Cut Out Dimensions – Deluxe iPad holder 250 mm Template box it Ø 20 mm Print on A4 to give actual size of Ø 32 mm iPad holder holes. Centre Ø 20 mm hole & the three 6 mm drill holes for the bolts must be drilled all the way through work top for fixing purposes.
  • Page 10 Flush mounted drip tray (Recommended) This drip tray is to be used for hard surface worktops such as Marble, Granite & Corian. to be used with wooden based materials such as chipboard, MDF etc. Please contact us for advice if required. Page | 9...
  • Page 11 Top mounted drip tray This drip tray is to be used for all types of wooden surface worktops i.e. Chipboard, MDF etc. Please contact us for advice if required. Page | 10...
