Summary of Contents for Scanomat PRO6 EU

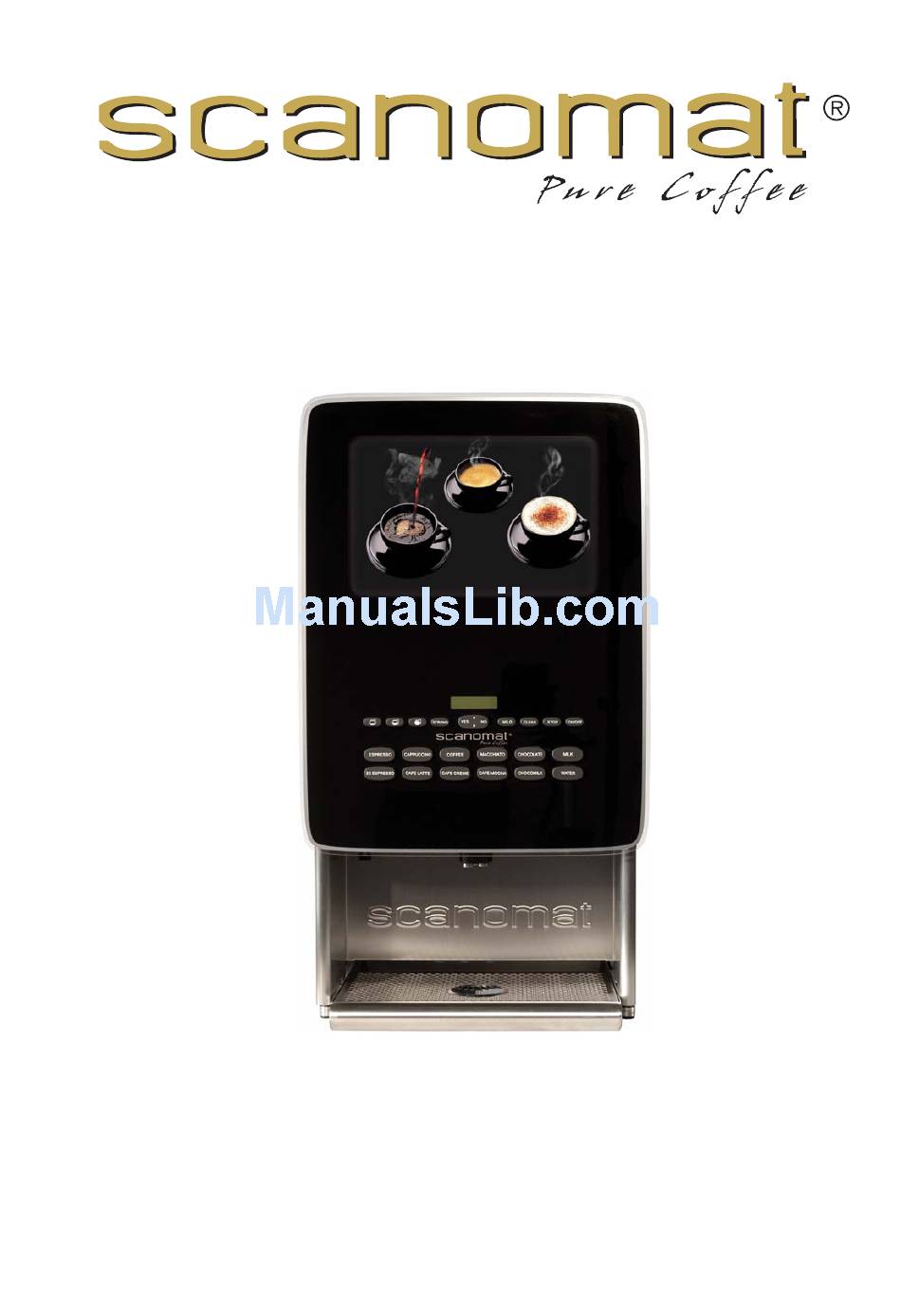

- Page 1 Users / Service manual PRO6 EU Preliminary edition English edition Re-ordering no: 4300801 Version 1.00...
- Page 2 Users / service manual for Scanomat PRO6 EU Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • Telefax +45 49 18 01 18...
- Page 3 We are convinced that you will be pleased with your choice! Operation of the SCANOMAT Coffee Brewer The Scanomat coffee and coffee speciality brewers are high technology brewers which by means of a micro processor controlled brewing process dispenses various first class quality coffee drinks. Water is heated in the thermostatically controlled hot water tank with automatic water inlet.
- Page 4 Users / service manual for Scanomat PRO6 EU Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • Telefax +45 49 18 01 18...
-
Page 5: Table Of Contents
Users / service manual for Scanomat PRO6 EU Technical specifications:..........................7 Installation:..............................9 Table layout:............................. 9 Water connection: ..........................11 Maintanance:............................. 13 Cleaning: ..............................14 Whipper blade assembhy:........................15 Preventive maintenance: ........................16 Trouble Shooting: ............................. 16 Operational procedures:........................... 17 The keyboard:............................ - Page 6 Users / service manual for Scanomat PRO6 EU Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • Telefax +45 49 18 01 18...
-
Page 7: Technical Specifications
Users / service manual for Scanomat PRO6 EU Technical specifications: Power supply: 230 VAC single phase with ground connection, or 400 VAC 2/3 phases with neutral and ground connection (Idle power consumption approx. 20 watt). Dimensions: Height: 68.7 cm. Width: 37.5 cm. - Page 8 Users / service manual for Scanomat PRO6 EU Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • Telefax +45 49 18 01 18...
-
Page 9: Installation
Users / service manual for Scanomat PRO6 EU Installation: The following installations must be provided 1. Electrical 230 VAC Single with ground Single phase connection 2/3 Phase Or 400 VAC 2/3 phase with neutral and ground connection (standby power consumption 20W) 2. - Page 10 Users / service manual for Scanomat PRO6 EU Service and repair is only to be carried out by service engineers educated by Scanomat. The coffee brewer is to be secured additionally in accordance with regulations. The coffee brewer must be earth connected (yellow/green conductor).
-
Page 11: Water Connection
Connect the coffee brewer to the cold water line, which is equipped with an adjustable check valve (1/2” external screw thread G+F). Before connecting the brewer draw off some buckets of water to clean the pipes. If the water is not good quality we recommend that a Scanomat water filter is mounted 2. - Page 12 Users / service manual for Scanomat PRO6 EU Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • Telefax +45 49 18 01 18...
-
Page 13: Maintanance
Users / service manual for Scanomat PRO6 EU Maintenance: General Drawing A Ingredient canister B Ingredient funnel C Mixer bowl D Whipper house E Outlet hose F Outlet holder G Whipper tray H Drip tray I Main switch K Cover plate... -
Page 14: Cleaning
Users / service manual for Scanomat PRO6 EU Cleaning: Caution: Before starting the cleaning procedure make sure that the coffee brewer is switched off in order to avoid damages and injuries with hot water and moving parts. Make sure to switch the machine off at the machine ON/OFF switch (see point I on the General Drawing). -
Page 15: Whipper Blade Assembhy
Users / service manual for Scanomat PRO6 EU Whipper blade assembly: The mixer blade pulls apart in 3 pieces. When re-assembling, please note that all 3 parts must be properly aligned, see drawing First assemble the silicon gasket and the actual blade. Then push in the white teflon seal. -
Page 16: Preventive Maintenance
Users / service manual for Scanomat PRO6 EU Preventive maintenance: The ingredient canisters are to be cleaned at regular intervals depending on the performance, usage and environment the machine is installed in, and furthermore the quality of the drinking water should also be taken into consideration. -
Page 17: Operational Procedures
Users / service manual for Scanomat PRO6 EU Operational procedures: The keyboard: Selection buttons: The selection buttons will, when the machine is operational, meaning water in the tank and warm enough dispense the selected drink. Place the cup at the appropriate position. If more positions, the right one, will be indicated on the front of the machine. -
Page 18: Turning The Machine On And Off
Users / service manual for Scanomat PRO6 EU Turning the machine on and off: There are 2 ways of turning the machine off. Either by pressing and holding the ON/OFF button for 2 seconds, or by switching the power off completely by activating the mechanical switch in the dispensing area. -
Page 19: Dispensing Decaf Selections
Users / service manual for Scanomat PRO6 EU Pressing STOP or NO any time during a carafe brew will terminate the brewing after finishing the ongoing cup. Dispensing decaf selections: If the machine is equipped with DECAF coffee, it is able to dispense all selection containing coffee or espresso in a decaf version. -
Page 20: The Menu
Users / service manual for Scanomat PRO6 EU The menu: Using the navigation button, the menu system for accessing all audit data, adjustments and settings of the machine can be reached. Pressing the arrow up and down, YES to enter a function, NO to go back one step, does the navigation through the different menus. -
Page 21: Reading Out Data From The Machine
Users / service manual for Scanomat PRO6 EU Reading out data from the machine: Some data can be read out your coffee machine directly from the keyboard. Number of possibilities may vary from configuration of your machine Press the navigation button UP until following appears: Press navigation button YES, and the first adjustable parameter will appear in the display. -
Page 22: Reading The Product Data
Users / service manual for Scanomat PRO6 EU Reading the product data: If your machine is running with the quality key system, either based on the magnetic keys or the contact less TAGS, the amount of products in the memory can be read out. -
Page 23: Adjusting The Machine
Users / service manual for Scanomat PRO6 EU Adjusting the machine: A lot of different parameters in the machine can be adjusted directly from the keyboard. Press the navigation button UP until following appears: Press navigation button YES, and the first adjustable parameter will appear in the display. Pressing UP and DOWN will scroll between the possibilities. -
Page 24: Adjusting Drink Strength
Users / service manual for Scanomat PRO6 EU Adjusting drink strength: The drink strength can be adjusted for each product for each selection independently. The pre- programmed strength is referred to as 100% and not as a fixed amount, as it differs from selection to selection. -
Page 25: Adjusting Carafe
Users / service manual for Scanomat PRO6 EU Adjusting carafe: The carafe function is a way to make number of cups of a. selection. Depending on the configuration of your machine, it may have 1, 2 or 3 different carafe sizes (small, medium and large). -
Page 26: Adjusting The Brew Limit
Users / service manual for Scanomat PRO6 EU Adjusting the brew limit: The brew limit is the lowest temperature of the boiler, where the machine will allow dispensing of drinks. If the temperature of the boiler is below this value, the thermometer icon in the display will be blinking. -
Page 27: Adjusting The Language
Users / service manual for Scanomat PRO6 EU Adjusting the language: Your coffee machine may be programmed with different display languages. To select the desired language first enter the adjust menu as described and press UP or DOWN until the display shows: Press YES, and the current language will be displayed. -
Page 28: Adjusting The Timers
Users / service manual for Scanomat PRO6 EU Adjusting the timers: Your coffee machine is equipped with 4 programmable timers. These are designed to power the machine down in certain periods. The timers are all 24 hour based, meaning that not weekly or monthly functions are available. -
Page 29: Machine Settings
Users / service manual for Scanomat PRO6 EU Machine settings: The machine settings are a lot of different parameters, which can be selected or deselected by you. . Press the navigation button UP or DOWN until following appears: Press YES and the display will show:... -
Page 30: Cup Light
Users / service manual for Scanomat PRO6 EU Cup light: Your coffee machine may be equipped with a light illuminating the dispensed drinks. If this is the case, it can be activated or deactivated by means of this function. Carafes: If your machine does not have the direct carafe buttons on the keyboard, the menu activated carafe function can be activated or deactivated by this function. -
Page 31: Service Key Mode
Users / service manual for Scanomat PRO6 EU Service key mode: Service key mode is a mode, which allows extra functions depending of the configuration of your machine. There are a number of possible ways to enter this mode: If your machine is equipped with the quality key system, either based on magnetic cards or contact less TAGS, a service mode key or TAG has been supplied with the machine. - Page 32 Users / service manual for Scanomat PRO6 EU Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • Telefax +45 49 18 01 18...
-
Page 33: Connection Chart
Users / service manual for Scanomat PRO6 EU Connection chart: Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • Telefax +45 49 18 01 18...
