Summary of Contents for Scanomat TopBrewer

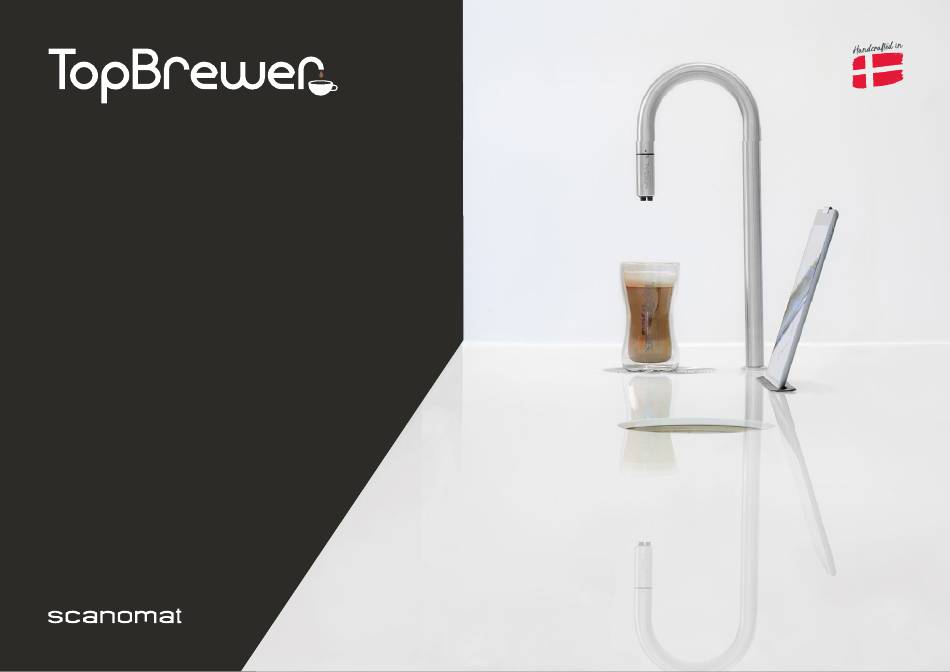

- Page 1 One Step Cleaning Manual TopBrewer Pro & Compact Cleaning - brewer & milk (daily) Choco Cleaning (2 times weekly) SmartFridge Guide 2023 | v3 | INT...
- Page 2 SKU 4302319 2,5 l SKU 4302657 SKU 4302786 Tip Brushes Magnet for SmartFridge Jug 1000 ml versions without switch SKU 4302349 SKU 4302657 Strong magnet min. 800g TopBrewer Waste bags Bio-degradable SKU 017 In general Cleaning Cloth and Paper Towel...
- Page 3 DAILY CLEANING Cleaning is recommended to be done at the end of the day USING BREWER CLEANING TABS & MILK CLEANER...
- Page 4 PREPARE FOR CLEANING MIX CLEANING LIQUID CLEAN WATER REMOVE CONTAINER CLEAN MODE Fill a jug with 600 ml of warm water. Fill a jug with 400 ml Pull the milk container with lid Set the swich on the Add 30 ml of cleaning liquid to the clean cold tap water out of the fridge.
- Page 5 COMPACT OPEN THE STAINLESS STEEL DOOR The machine goes into neutral mode with the bottom piston raised, ready for cleaning when the door is opened. PRO: Open the hinged door by pushing the right side until it pops out and pull it towards you. COMPACT: Open the door by pivoting it outwards from the bottom and sliding it into a horizontal hold position.
- Page 6 Danger hot Danger hot MOVE SCRAPER REMOVE GROUND COFFEE Start by pulling out the scraper arm (black) Brush around the grey base plate in order to on the brewing unit. remove any ground coffee deposits. The scraper can be moved freely to allow Brush the deposits into the dreg bin.
- Page 7 Danger hot Danger hot Danger hot CLEAN TOP AND BOTTOM PISTON ADD CLEANING TAB Having removed most of the coffee grounds, Push the scraper back into the position as shown. wipe the top piston sieve (underside) as well as around the top piston O-ring (white ring). Place a brewer cleaning tablet inside the scraper.
- Page 8 PLACE CLEANING LIQUID START CLEANING PROCESS Place the jug with the warm water and Select ”CLEAN” from the left pane menu on the iPad. cleaning liquid in the fridge. The process will take approximately 3 minutes and Insert the milk line(s) into the jug. “Machine is ready”...
- Page 9 Replace the jug in the fridge with clean water and insert the milk line(s) into the jug. Close the fridge. On the keyboard on the TopBrewer press first button (Arrow 1) so “Clean Menu” appears on the screen. Press the second button (Arrow 2) and the Milk Rinse will start.
- Page 10 CLEAN MILK HOUSING AFTER CLEANING PROGRAM REMOVE CASING REMOVE RE-ATTACH AND HOUSEING MILK FOAMER ALL PARTS Gently remove the outer Unscrew the milk foamer (10.1). Re-attach the milk metal casing (9.1) of the foamer by screwing it faucet by twisting the it Seperate the two parts of the on the outlet (11.1).
- Page 11 Press the second button (Arrow 2) and the with a damp cloth. Milk Prime will start. Place the milk container, add the milk line(s) and When the prime program is done the TopBrewer is close the fridge. ready for use!
- Page 12 GUIDE FOR SMARTFRIDGE PULL OUT CONTAINER PLACE LID FOR CLEANING PLACE CONTAINER Pull out the milk container carefully Connect the lid in the fridge for milk After finished milk cleaning take out the with a grip in the bottom handle and cleaning.
- Page 13 If one compartment in a dual milk consumption. display shows alternatively OFF and the container runs low the TopBrewer can’t inside temperature value. dispence milk drinks. To defrost the appliance, switch it off; we recommend to leave the refrigerator...
- Page 14 CHOCO CLEANING PERFORM TWICE A WEEK VALVE VALVE USING CHOCO CLEANING SYSTEM CLOSED OPEN...
- Page 15 OPEN PREPARE CHOCO CLEANING CONNECT CLEANING CAN Mix 750 ml of warm water with 40 ml of milk fat Place the cleaning can on the table, with the black cleaning liquid in a jug and add it to the choco stud facing down (avoid spilling the liquid) and cleaning can (make sure the lever is closed on the connect the tube to the choco rack.
- Page 16 OPEN START CLEANING RINSE WITH WATER RECONNECT & PRIME On the keyboard on the TopBrewer Add 750 ml clean cold water to the Disconnect the cleaning can tube. press first button (Arrow 1) so cleaning can. Wipe off the connector on the rack.
- Page 17 COMPACT IMPROVING TASTE EXPERIENCE REMOVING COFFEE WASTE Remove lid from bean hopper and wipe with a In the status bar of the app, the machine will damp cloth prior to filling it with beans. notify you when the coffee dreg bin is full. When removing the bin (keep switched on) the unit will Fresh Amokka®...
