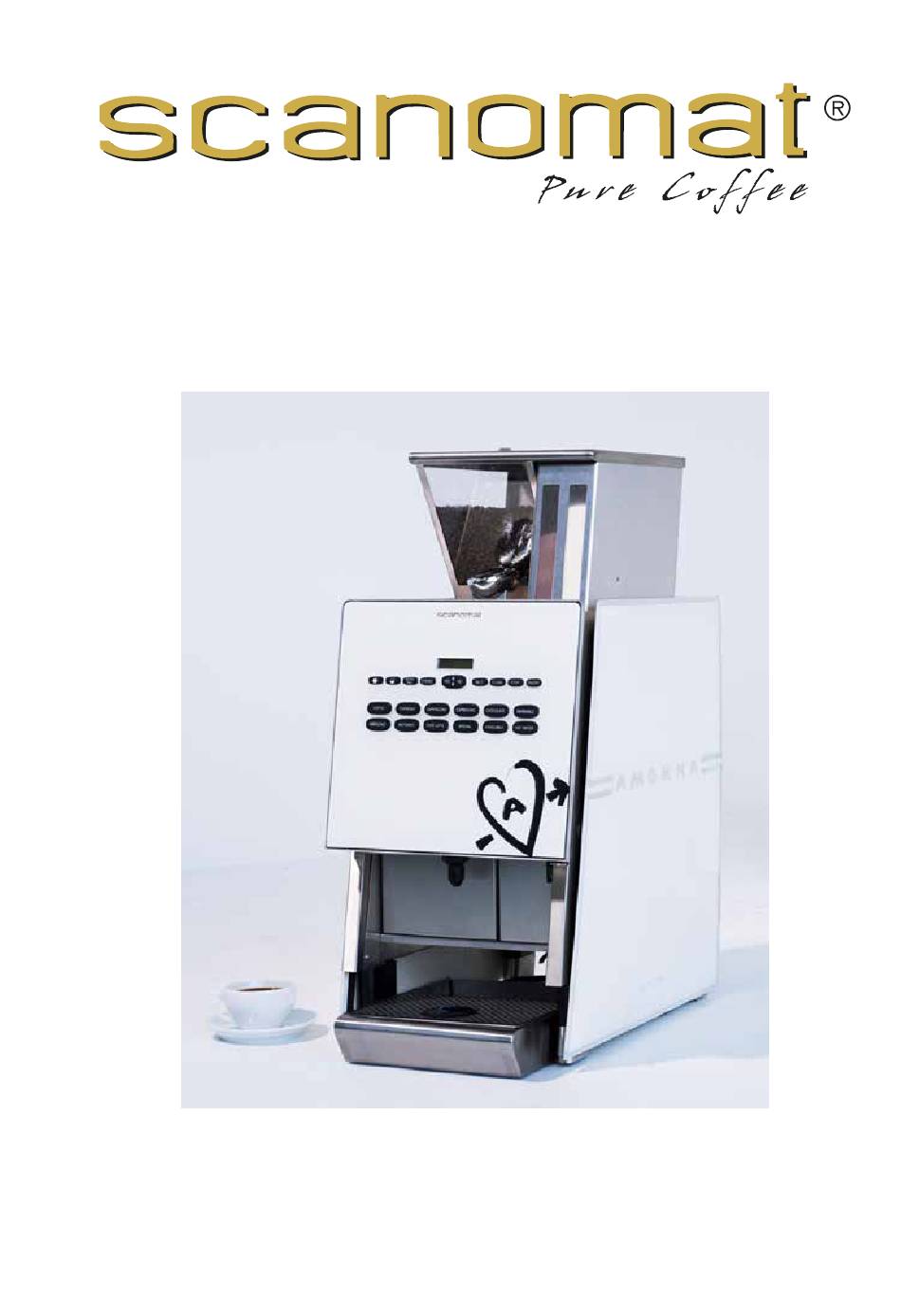

- Page 1 Users / Service manual Venezia II English edition Re-ordering no: x….. Version 1.00...
- Page 2 Users / service manual for Scanomat Venezia II Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • www.scanomat.dk...
- Page 3 We are convinced that you will be pleased with your choice! Operation of the SCANOMAT Coffee Brewer The Scanomat coffee and coffee speciality brewers are high technology brewers which by means of a micro processor controlled brewing process dispenses various first class quality coffee drinks. Water is heated in the thermostatically controlled hot water tank with automatic water inlet.
- Page 4 Users / service manual for Scanomat Venezia II reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 5 Users / service manual for Scanomat Venezia II Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • Telefax +45 49 18 01 18...
-
Page 6: Table Of Contents
Users / service manual for Scanomat Venezia II Technical specifications: ..........................7 Installation: ..............................9 Table layout (top wiev): ..........................9 Water connection: ........................... 11 Maintenance:.............................. 13 Daily cleaning: ............................14 Empty the dreg bin: ..........................15 Preventive maintenance: ......................... 16 Trouble Shooting: ............................ -
Page 7: Technical Specifications
Users / service manual for Scanomat Venezia II Technical specifications: Power supply: Single phase 230 VAC with neutral and ground connection. Dimensions: Height: 69,6 cm. Width: 32,3 cm. Depth: 57,5 cm. Water tank: Hot water tank: Aluminium hybrid boiler. Weight: Gross: 44 kg. - Page 8 Users / service manual for Scanomat Venezia II Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • www.scanomat.dk...
-
Page 9: Installation
See diagram below Table layout (top wiev): Service and repair is only to be carried out by service engineers educated by Scanomat. The coffee brewer is to be secured additionally in accordance with regulations. The coffee brewer must be earth connected (yellow/green conductor). - Page 10 Users / service manual for Scanomat Venezia II Note: Place the coffee brewer on a stable table, adjust the levelling feet until the brewer is level from front to back and side to side. Be certain all four levelling feet are in contact with the table to prevent rocking of the brewer.
-
Page 11: Water Connection
(1/2” external screw thread G+F). Before connecting the brewer draw off some buckets of water to clean the pipes. If the water is not good quality we recommend that a Scanomat of water to clean the pipes. If the water is not good quality we recommend that a Scanomat of water to clean the pipes. - Page 12 Users / service manual for Scanomat Venezia II Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • www.scanomat.dk...
-
Page 13: Maintenance
Users / service manual for Scanomat Venezia II Maintenance: General Drawing A Bean canister B whipper lid C Funnel D Mixer bowl E Whipper house F Main switch G Milk foamer H Canister lid I Soluble canister J Programming plug... -
Page 14: Daily Cleaning
Users / service manual for Scanomat Venezia II Daily cleaning: Caution: Before starting the cleaning procedure make sure that the coffee brewer is switched off in order to avoid damages and injuries with hot water and moving parts. Make sure to switch the machine off at the machine ON/OFF switch (see point I on the General Drawing). -
Page 15: Empty The Dreg Bin
Users / service manual for Scanomat Venezia II Replace all parts in Make a final check on Close the door and Correct order the assembled parts in switch on the machine The machine Open the door and place Remove the hose from milk... -
Page 16: Preventive Maintenance
Users / service manual for Scanomat Venezia II Preventive maintenance: The ingredient canisters are to be cleaned at regular intervals depending on the performance, usage and environment the machine is installed in, and furthermore the quality of the drinking water should also be taken into consideration. - Page 17 Users / service manual for Scanomat Venezia II Display shows SCRAPER ERROR Clean the area around the brewer chamber (see Daily Cleaning) Press STOP. Clean the scraper. Display shows TOP PISTON ERROR Press STOP. Press CLEAN and run the cleaning program.
-
Page 18: Operational Procedures
Users / service manual for Scanomat Venezia II Operational procedures: The keyboard: Selection buttons: The selection buttons will, when the machine is operational, meaning water in the tank and warm enough dispense the selected drink. Place the cup at the appropriate position. If more positions, the right one, will be indicated on the front of the machine. -
Page 19: Turning The Machine On And Off
Users / service manual for Scanomat Venezia II Turning the machine on and off: There are 2 ways of turning the machine off. Either by pressing and holding the ON/OFF button for 2 seconds, or by switching the power off completely by activating the mechanical switch in the dispensing area. -
Page 20: Dispensing Decaf Selections
Users / service manual for Scanomat Venezia II Pressing STOP or NO any time during a carafe brew will terminate the brewing after finishing the ongoing cup. Dispensing decaf selections: If the machine is equipped with DECAF coffee, it is able to dispense all selection containing coffee or espresso in a decaf version. -
Page 21: The Menu
Users / service manual for Scanomat Venezia II The menu: Using the navigation button, the menu system for accessing all audit data, adjustments and settings of the machine can be reached. Pressing the arrow up and down, YES to enter a function, NO to go back one step, does the navigation through the different menus. -
Page 22: Reading Out Data From The Machine
Users / service manual for Scanomat Venezia II Reading out data from the machine: Some data can be read out your coffee machine directly from the keyboard. Number of possibilities may vary from configuration of your machine Press the navigation button UP until following appears: Press navigation button YES, and the first adjustable parameter will appear in the display. -
Page 23: Reading The Product Data
Users / service manual for Scanomat Venezia II Reading the product data: If your machine is running with the quality key system, either based on the magnetic keys or the contact less TAGS, the amount of products in the memory can be read out. -
Page 24: Adjusting The Machine
Users / service manual for Scanomat Venezia II Adjusting the machine: A lot of different parameters in the machine can be adjusted directly from the keyboard. Press the navigation button UP until following appears: Press navigation button YES, and the first adjustable parameter will appear in the display. Pressing UP and DOWN will scroll between the possibilities. -
Page 25: Adjusting Drink Strength
Users / service manual for Scanomat Venezia II Adjusting drink strength: The drink strength can be adjusted for each product for each selection independently. The pre- programmed strength is referred to as 100% and not as a fixed amount, as it differs from selection to selection. -
Page 26: Adjusting Carafe
Users / service manual for Scanomat Venezia II Adjusting carafe: The carafe function is a way to make number of cups of a. selection. Depending on the configuration of your machine, it may have 1, 2 or 3 different carafe sizes (small, medium and large). -
Page 27: Adjusting The Brew Limit
Users / service manual for Scanomat Venezia II Adjusting the brew limit: The brew limit is the lowest temperature of the boiler, where the machine will allow dispensing of drinks. If the temperature of the boiler is below this value, the thermometer icon in the display will be blinking. -
Page 28: Adjusting The Language
Users / service manual for Scanomat Venezia II Adjusting the language: Your coffee machine may be programmed with different display languages. To select the desired language first enter the adjust menu as described and press UP or DOWN until the display shows: Press YES, and the current language will be displayed. -
Page 29: Adjusting The Timers
Users / service manual for Scanomat Venezia II Adjusting the timers: Your coffee machine is equipped with 4 programmable timers. These are designed to power the machine down in certain periods. The timers are all 24 hour based, meaning that not weekly or monthly functions are available. -
Page 30: Machine Settings
Users / service manual for Scanomat Venezia II Machine settings: The machine settings are a lot of different parameters, which can be selected or deselected by you. . Press the navigation button UP or DOWN until following appears: Press YES and the display will show:... -
Page 31: Cup Light
Users / service manual for Scanomat Venezia II Cup light: Your coffee machine may be equipped with a light illuminating the dispensed drinks. If this is the case, it can be activated or deactivated by means of this function. Carafes: If your machine does not have the direct carafe buttons on the keyboard, the menu activated carafe function can be activated or deactivated by this function. -
Page 32: Service Key Mode
Users / service manual for Scanomat Venezia II Service key mode: Service key mode is a mode, which allows extra functions depending of the configuration of your machine. There are a number of possible ways to enter this mode: If your machine is equipped with the quality key system, either based on magnetic cards or contact less TAGS, a service mode key or TAG has been supplied with the machine. - Page 33 Users / service manual for Scanomat Venezia II Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • Telefax +45 49 18 01 18...
-
Page 34: Connection Chart
Users / service manual for Scanomat Venezia II Connection chart: Vibe Allé 3 • Postboks 131 • 2980 Kokkedal. Phone +45 49 18 18 00 • www.scanomat.dk...
