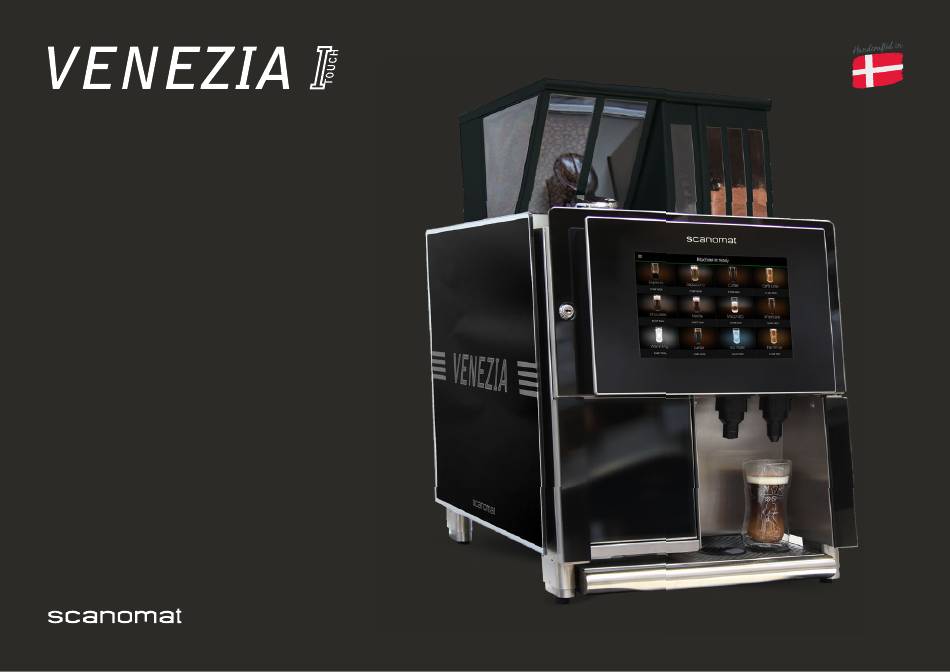

- Page 1 One Step Cleaning Manual VENEZIA Touch 2023 | v3 | INT...
- Page 2 WHAT YOU NEED FOR CLEANING Brewer Cleaning Milk Cleaning Prepare before clean Brewer Cleaning Tablets Milk Cleaner - Blue MIX CLEANING LIQUID Alkaline SKU 4303171 Fill a jug with 600 ml of warm water. SKU 4302830 Add 30 ml of cleaning liquid to the water.
- Page 3 DAILY CLEANING Cleaning is recommended to be done at the end of the day USING BREWER CLEANING TABS & MILK CLEANER...
- Page 4 Danger hot Danger hot TOP COVER MOVE SCRAPER REMOVE COFFEE Open the door to the Venezia Start by pulling out the Brush around the grey base plate in machine. scraper arm (black) on the order to remove any ground coffee brewing unit.
- Page 5 Danger hot Danger hot CLEAN TOP AND BOTTOM PISTON ADD CLEANING TAB Having removed most of the coffee grounds, Push the scraper back into the position as shown. wipe the top piston sieve (underside) as well as around the top piston O-ring (white ring). Place a brewer cleaning tablet inside the scraper.
- Page 6 CLEAN MIXER DISASSEMBLE CLEAN MIXERS HOUSES Pull out all the hoses of the black Pull off the two whippers and clean outlets. Clean outlets with warm them in warm water and dry. Mount The mixer houses, nozzles water. them again with the white arrow along and outlets inside the the flat side of the metal spindle.
- Page 7 MILK FOAMER CLEAN MILK FOAMER REASSEMBLE HOSES Pull off the black housing of the milk Separate the two parts of the milk Slide the the two clean black foamer (green arrow). foamer unscrewing it clockwise (10.2). outlets back into place. Unscrew the milk foamer from the Clean all three parts in hot water with Place all the hoses and the milk...
- Page 8 PLACE CLEANING LIQUID START CLEANING PROCESS Place the prepared jug with the warm water Select the menu on the screen and press ”Clean” from the left and cleaning liquid in the fridge. Insert the pane. milk line(s) into the jug. The process will take approximately 4 minutes.
- Page 9 On TopBrewer Compact push exactly the same buttons though the texts are different. SERVICE KEY RINSE MILK FRIDGE WITH CLEAN WATER After the claning process Replace the jug in the fridge with 200 ml clean water and insert the milk line(s) into is done, open the door to the jug.
- Page 10 On TopBrewer Compact push exactly the same buttons though the texts are different. Danger hot WIPE AND ADD MILK CONTAINER MILK AND COFFEE PRIME After the milkrinse is done pull out scraper on the Place a jug under the faucet. On the keyboard inside the door press first button (Arrow 1) so “Clean Menu”...
- Page 11 CLEANING THE DRIP TRAY IMPROVING TASTE EXPERIENCE When cleaning the drip tray pull it out and wash it When the bean hopper is empty wipe it with a with warm soap water. damp cloth to remove old coffee oils. If there is drain connected to the drip tray check Fresh Amokka®...
