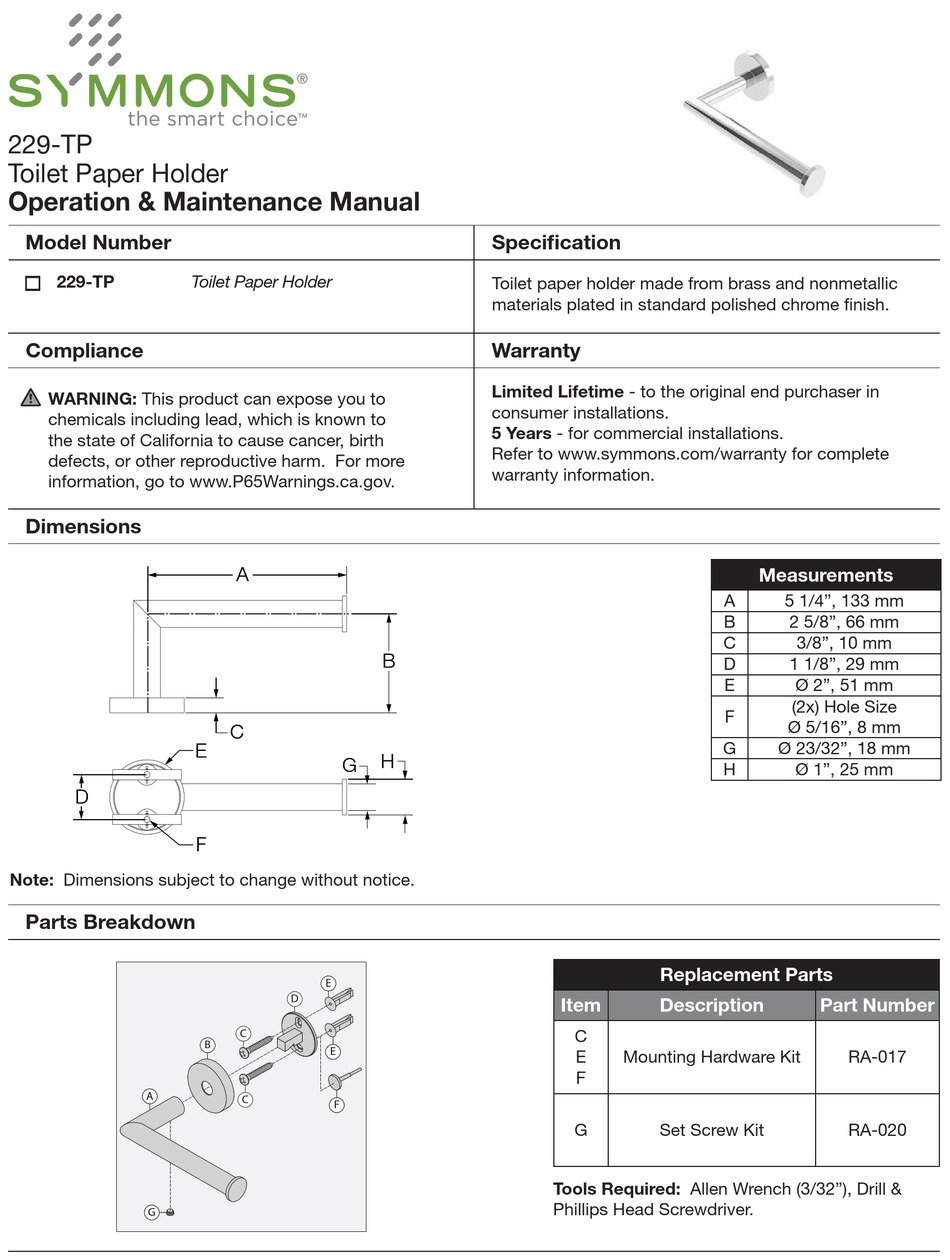

Symmons 229-TP Operation & Maintenance Manual

229-TP
Toilet Paper Holder
Operation & Maintenance Manual
Model Number
229-TP

Compliance
WARNING: This product can expose you to
chemicals including lead, which is known to
the state of California to cause cancer, birth
defects, or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.

Dimensions

D D
Note: Dimensions subject to change without notice.

Parts Breakdown

A
G

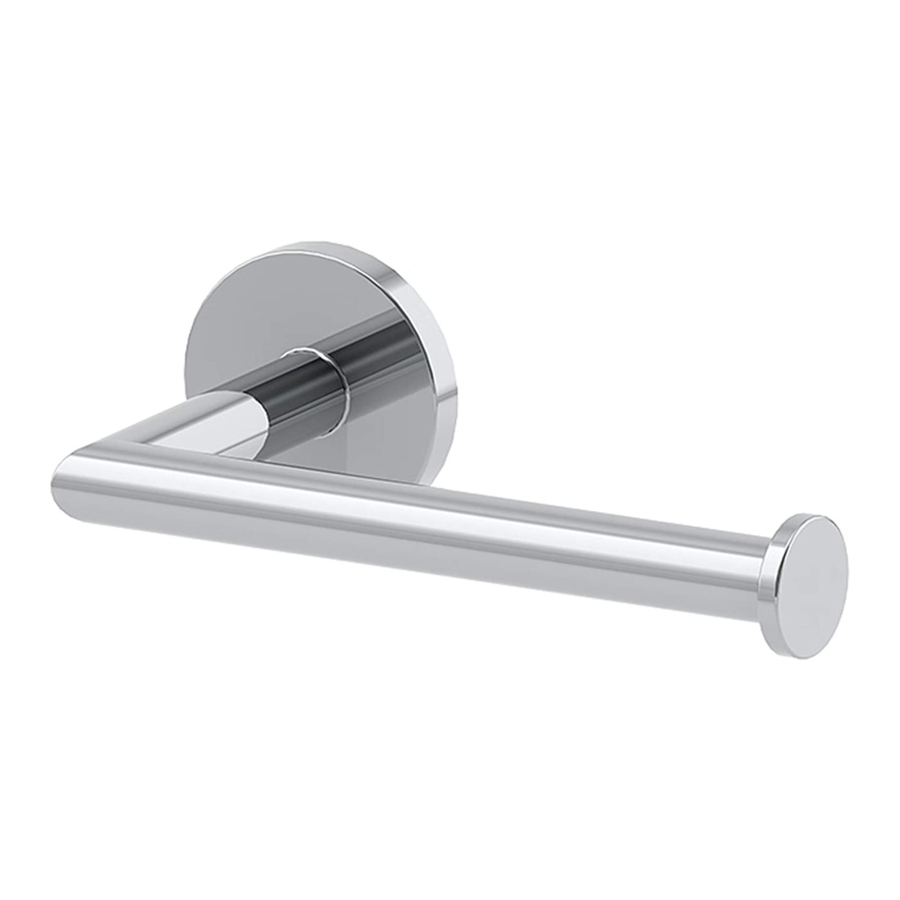

Toilet Paper Holder
A A
C C
E E
G G
F F
E
D
C
B
E
C
F
Specification
Toilet paper holder made from brass and nonmetallic
materials plated in standard polished chrome finish.

Warranty

Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
B B
H H
Tools Required: Allen Wrench (3/32"), Drill &
Phillips Head Screwdriver.
A
B
C
D
E
F
G
H

Replacement Parts

Item Description
C
E Mounting Hardware Kit
F
G Set Screw Kit
Measurements
5 1/4", 133 mm
2 5/8", 66 mm
3/8", 10 mm
1 1/8", 29 mm
Ø 2", 51 mm
(2x) Hole Size
Ø 5/16", 8 mm
Ø 23/32", 18 mm
Ø 1", 25 mm
Part Number
RA-017
RA-020
