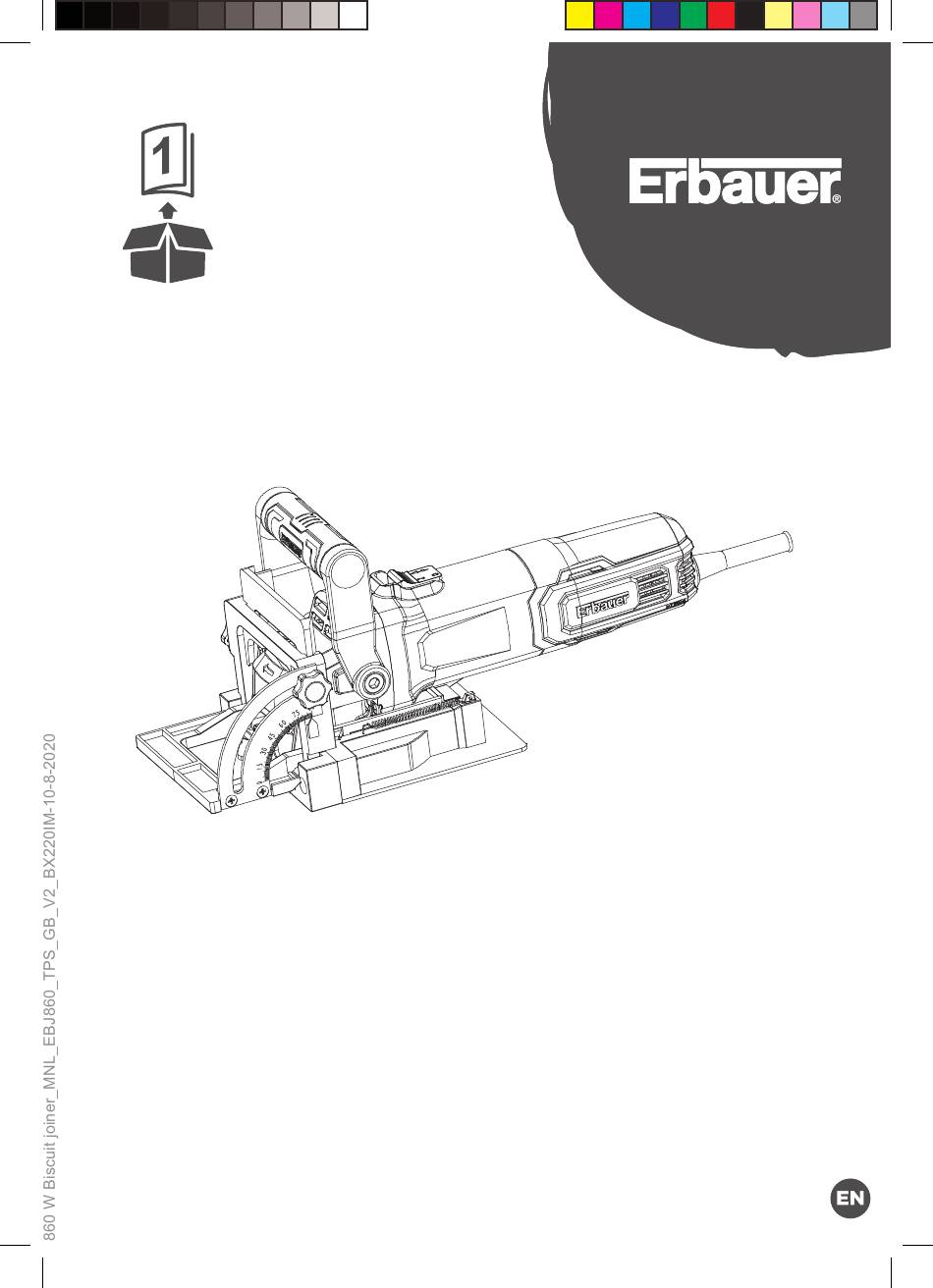

- Page 1 EAN: 3663602795308 EBJ860 ORIGINAL INSTRUCTIONS...
-
Page 2: Table Of Contents
Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity 860 W Biscuit joiner_MNL_EBJ860_TPS_GB_V1_V20518_20180605.indd 2 6/5/18 9:03 AM... - Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. 860 W Biscuit joiner_MNL_EBJ860_TPS_GB_V1_V20518_20180605.indd 3 6/5/18 9:03 AM...
- Page 4 Product description 13 12 11 860 W Biscuit joiner_MNL_EBJ860_TPS_GB_V1_V20518_20180605.indd 4 6/5/18 9:03 AM...
- Page 5 860 W Biscuit joiner_MNL_EBJ860_TPS_GB_V1_V20518_20180605.indd 5 6/5/18 9:03 AM...
- Page 6 8 - 12 mm >25 mm 12 - 15 mm >15 mm 860 W Biscuit joiner_MNL_EBJ860_TPS_GB_V1_V20518_20180605.indd 6 6/5/18 9:03 AM...
-
Page 7: Safety Instructions
Safety instructions GENERAL POWER TOOL SAFETY WARNING WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool. - Page 8 b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 9 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times.
- Page 10 e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 11 ADDITIONAL SAFETY WARNINGS FOR BISCUIT JOINTER a) The rated speed of cutting tools must be at least equal to the maximum speed marked on the power tool. Blades running with over speed can fly apart and cause injuries. b) Always use correctly sized blades with the fitting mounting bore.
- Page 12 l) Use only the blades listed in these operating instructions. Do not use cut-off discs or circular saw blades. m) Press the spindle lock button only when the machine is at a standstill. n) Before putting into operation, check the blade for tight seating.
- Page 13 And breathing in fine particles of wood dust can lead to the development of Asthma. The risk of lung disease is linked to people who regularly breathe construction dust over a period of time, not on the odd occasion. To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts that you can breathe (called a Workplace Exposure Limit or WEL) when averaged over a normal working day.
- Page 14 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks and cement and other masonry products.
- Page 15 The declared vibration total value has been measured in accordance with EN 60745-1, EN60745-2-19 and may be used for compare one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure. WARNING! The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used:...
- Page 16 WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
- Page 17 2. Ensure that the product is in good condition and well maintained. 3. Use correct attachments for the product and ensure they are in good condition. 4. Keep tight grip on the handles/grip surface. 5. Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
-
Page 18: Product Description
WARNING! This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product! Product description Part index... - Page 19 Always wear eye protection. Always wear ear protection. Wear a dust mask. Wear protective gloves. Lock / to tighten or secure. Unlock / to loosen. Note / Remark. Caution / Warning. dB(A) Decibel (A-rated) No-load speed To reduce the risk of injury, user must read instruction manual. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
- Page 20 Rating label explanation EBJ860 = Model number E = Erbauer BJ = Biscuit jointer 860= Power (Watts) 860 W Biscuit joiner_MNL_EBJ860_TPS_GB_V1_V20518_20180605.indd 20...
-
Page 21: Assembly
Assembly Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 22 Saw blade (Fig. A, B, C, D) WARNING! Always use blades according to the intended use! For example, never use a saw blade intended for working on wood for working on metal/tiles or vice versa! Observe the technical specifications of this product and the saw blades when purchasing and using blades! Attachments are sharp and hot after use! Handle them with care! Wear safety gloves when handling attachments to avoid injuries like burns and...
- Page 23 Dust extraction (Fig. E, F) WARNING! Always attach a dust extraction device when using this product to keep the working area clean! Wear a dust mask when operating this product! Dust can be harmful to health! External dust extraction (Fig. E): Attach an external dust extraction device, e.g.
-
Page 24: Use
Intended use The machine is intended for cutting grooves for biscuit dowel joints in chipboard, hard- and softwood, plywood, fibreboard. For safety reasons it is essential to read the entire instruction manual before first operation and to observe all the instructions therein. Before you start Protection Controls... - Page 25 Adjusting cutting depth (Fig. G) With the depth selector (14), the depth-of-cut can be set. Rotate it to select the desired cutting depth with the pointer. Make sure the selector moves into the correct position. A ‘click’ will indicate correct engagement. marking Cutting depth Biscuit dowel...
- Page 26 Operation Cutting (Fig. K, L) WARNING! During operation fine dust will be generated! The dust is highly inflammable and explosive! Do not smoke during operation, keep heat sources and open flames out of the working area! Always wear a dust mask to protect yourself against hazards resulting from fine dust! It is recommended to make a trial cut before working on the actual workpiece to determine the position and size of the groove, especially...
-
Page 27: Care & Maintenance
After use • Switch the product off, wait for complete stop, disconnect it from the power supply, let it cool down and remove the router bit. • Check, clean and store the product as described below. Care & maintenance WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only perform care and maintenance work according to these instructions! - Page 28 Power cord If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. UK plug (only for UK market) Replacement of the plug shall always be carried out by the manufacturer of the tool or his service organization and follow the instructions below.
- Page 29 Transportation WARNING! Always carry the product by its main handle. Never use the cord for carrying the product. 1. Switch the product off and disconnect it from the power supply. 2. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
-
Page 30: Guarantee
Guarantee At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. We carry out stringent testing procedures on all our tools and are confident that they can provide regular, sustained daily use during the period covered. -
Page 31: Declaration Of Conformity
London W2 6PX United Kingdom Declare that the product 860W Biscuit jointer EBJ860 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:... - Page 32 Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product 860W Biscuit jointer EBJ860 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:...
- Page 36 Manufacturer • Fabricant • Producent • Producator • Fabricante: Kingfisher International Products Limited, 3 Sheldon Square, London, W2 6PX, United Kingdom www.kingfisher.com/products Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Distributor: www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
