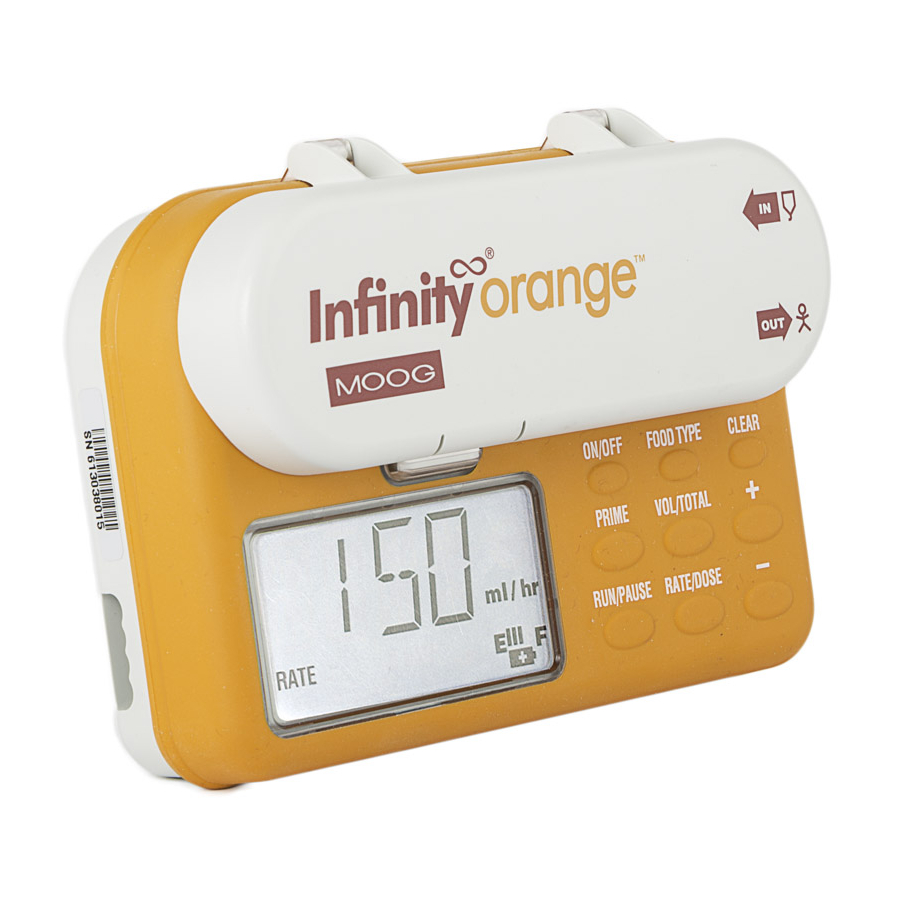

Moog Infinity Orange Quick Reference Instructions

PRIMING AND LOADING THE DISPOSABLE SET

THESE INSTRUCTIONS ARE NOT A SUBSTITUTE FOR THE OPERATOR'S MANUAL
Be sure to read the operator's manual thoroughly prior to operating
the pump. See other side for pump operation instructions.
STEP 1
Remove cap on Infinity Orange 100 mL disposable
set. Hold bag upright and pour in feeding
solution. Close cap securely. NOTE: If you are
using the EnteraLite Infinity 500 mL or 1200 mL
disposable set, follow the same instructions.
STEP 2
Remove protective cover from the distal end connector.
STEP 3 - PRIMING
IF PUMP PRIMING
Loop silicone tubing around pump
wheel stretching lightly.
Seat cassette into pump. Close pump door. Press and
hold ON/OFF key for 1.5 seconds to turn pump on.
Press and hold the PRIME
reaches the distal end connector.
IF MANUAL PRIMING
Gently pinch orange colored tubing below
the " " symbol and squeeze bag at the
same time to assist fluid flow.
Hold this position until formula reaches
the distal end connector.
Loop silicone tubing around pump
wheel stretching lightly.
Seat cassette into pump. Close pump door.
For backpack use: Turn bag upside down and
gently squeeze. Tilt bag as needed to keep air at
tubing port. At the same time, gently pinch orange
colored tubing below the " " symbol. Hold this
position until air is removed from the tubing. Gently
squeeze bag at the same time to assist fluid flow.
Infinity ® and Orange® are trademarks of Zevex, inc.
MOOG® is a registered trademark of Moog, Inc.
ENFit® is a registered trademark of GEDSA.
© 2017 Zevex, Inc. 29744-001 Rev. D
key until formula
Ph 800.970.2337
24 Hr Clinical Support
www.infinityfeedingpump.com
QUICK REFERENCE
INSTRUCTIONS
Tubing
Port
