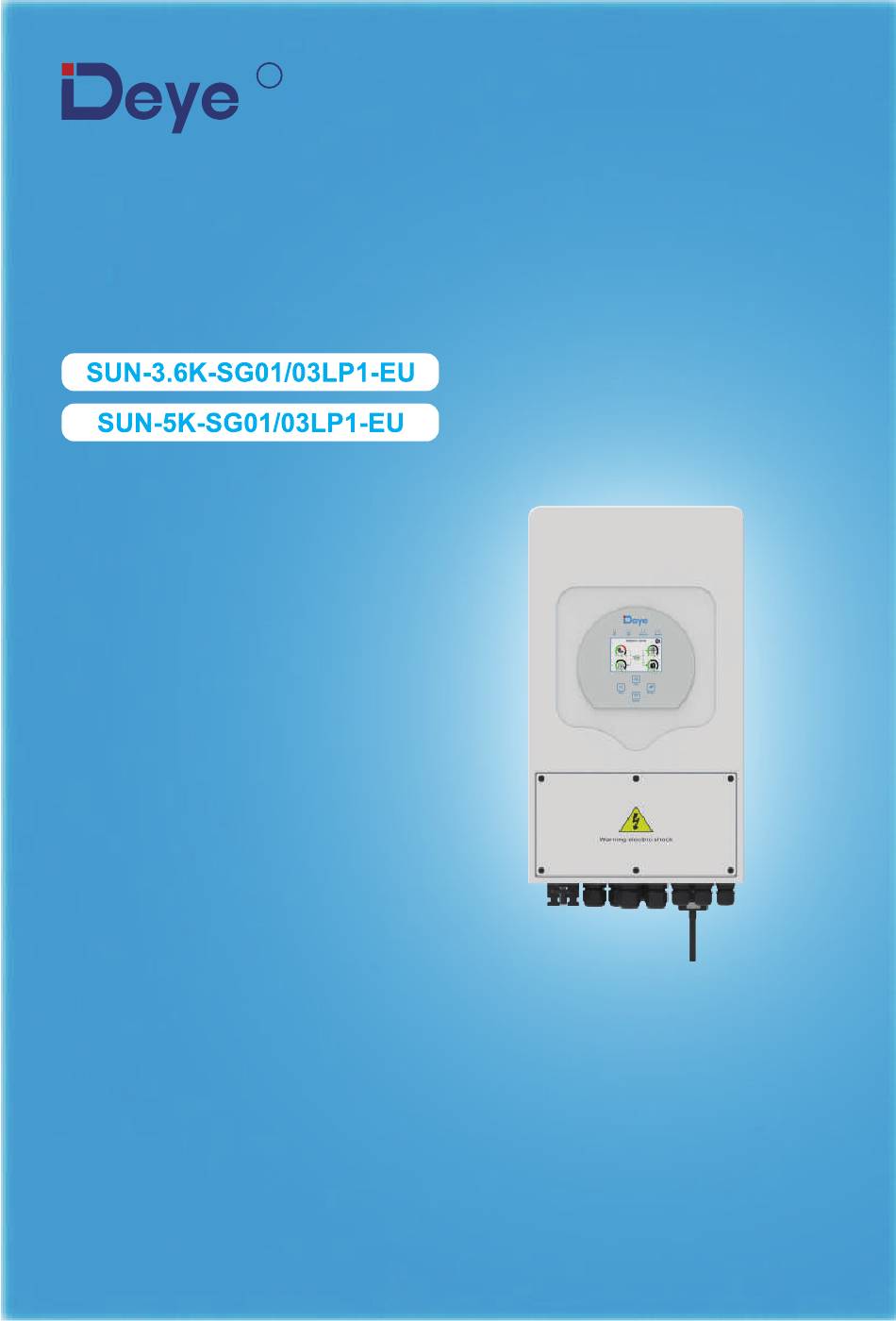

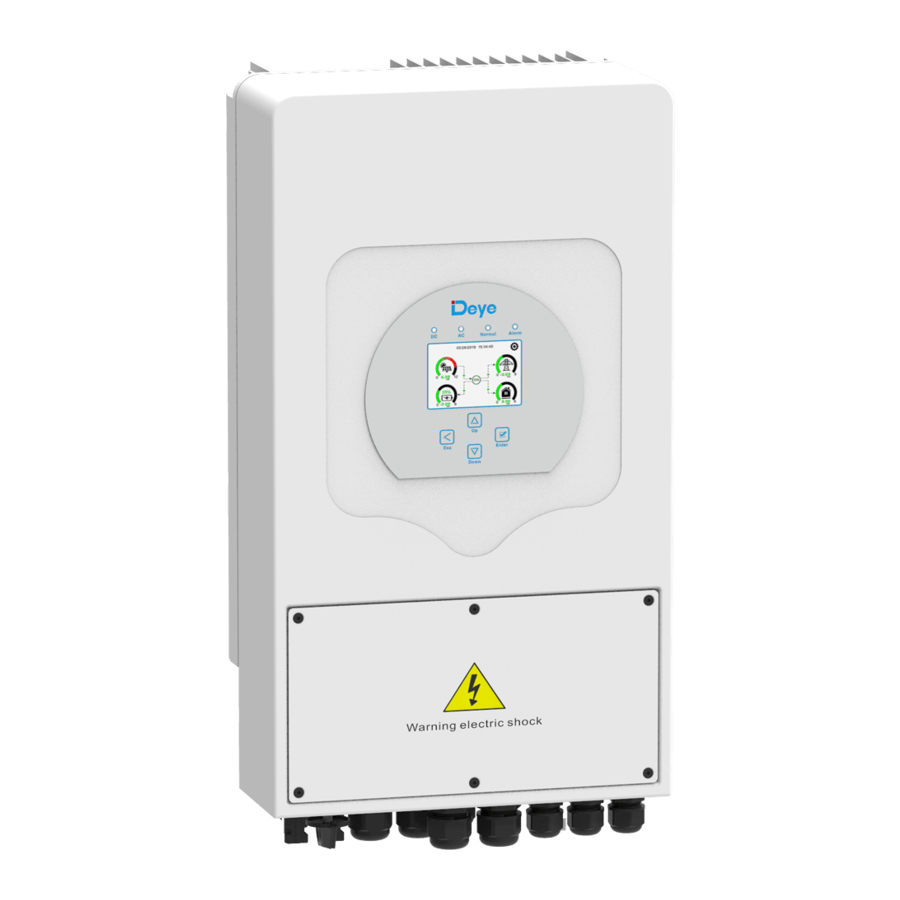

- Page 1 Hybrid Inverter User Manual...
-
Page 2: Table Of Contents
Contents 1. Safety Introductions ……………………………………………… 2. Product instructions 01-04 ……………………………………………… 2.1 Product Overview 2.2 Product Features 2.3 Basic System Architecture 3. Installation 04-16 …………………………………………………………… 3.1 Parts list 3.2 Mounting instructions 3.3 Battery connection 3.4 AC Input/Output Connection 3.5 PV Connection 3.6 CT Connection 3.7 Earth Connection(mandatory) 3.8 WIFI Connection... -
Page 3: Safety Introductions
1. Safety Introductions ・This chapter contains important safety and operating instructions. Read and keep this manual for future reference. ・Before using the inverter, please read the instructions and warning signs of the battery and corresponding sections in the instruction manual. ・Do not disassemble the inverter. -
Page 4: Product Overview
2.1 Product Overview 1: Inverter Indicators 7: DRMs Port 13: Power on/off button 2: LCD display 8: Parallel port 14: DC Switch 3: Function Buttons 9: Function Port 15: PV input with two MPPT 4: Battery input connectors 10: Generator input 16: WiFi Interface 5: RS 485 Port 11: Load... -
Page 5: Product Features
2.2 Product Features ・ -220V Single phase Pure sine wave inverter. ・ - Self-consumption and feed-in to the grid. ・ - Auto restart while AC is recovering. ・ - Programmable supply priority for battery or grid. ・ - Programmable multiple operation modes:On grid,off grid and UPS. ・... -
Page 6: Installation
AC cable DC cable WiFI GPRS Cloud services phone Wind Solar Backup Load On-Grid Home Load Grid Battery Smart Load Grid-connected Inverter Generator 3. Installation 3.1 Parts List Check the equipment before installation. Please make sure nothing is damaged in the package. -
Page 7: Mounting Instructions
Current transformer (Optional) Battery sensor L-type Hexagon wrench Wall mounting bracket Chart 3-1 Parts List 3.2 Mounting instructions Installation Precaution This Hybrid inverter is designed for outdoor use(IP65),Please make sure the installation site meets below conditions: ・ Not in direct sunlight ・... - Page 8 ・ The ambient temperature should be between -25~60℃ to ensure optimal operation. ・ Be sure to keep other objects and surfaces as shown in the diagram to guarantee sufficient heat dissipation and have enough space for removing wires. ≥500mm ≥500mm For proper air circulation to dissipate heat, allow a clearance of approx.
-
Page 9: Battery Connection
Inverter hanging plate installation 3.3 Battery connection For safe operation and compliance, a separate DC over-current protector or disconnect device is required between the battery and the inverter. In some applications, switching devices may not be required but over-current protectors are still required. Refer to the typical amperage in the table below for the required fuse or circuit breaker size. - Page 10 All wiring must be performed by a professional person. Connecting the battery with a suitable cable is important for safe and efficient operation of the system. To reduce the risk of injury, refer to Chart 3-2 for recommended cables. Please follow below steps to implement battery connection: 1.
- Page 11 3.3.2 Battery temperature connection Temp. CT - 09 -...
-
Page 12: Ac Input/Output Connection
3.4 AC Input/Output Connection ・ Before connecting to AC input power source,please install a separate AC breaker between inverter and AC input power source.This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current of AC input.The recommended of AC breaker is 25A for 3.6kw and 32A for 5KW. -
Page 13: Pv Connection
Be sure that AC power source is disconnected before attempting to wire it to the unit. 3. Then,insert AC output wires according to polarities indicated on the terminal block and tighten terminal. Be sure to connect corresponding N wires and PE wires to related terminals as well. - Page 14 It is requested to use PV junction box with surge protection. Otherwise,it will cause damage on inverter when lightning occurs on PV modules. 3.5.1 PV Module Selection: When selecting proper PV modules, please be sure to consider below parameters: 1) Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.
-
Page 15: Ct Connection
3.6 CT Connection Inverter White wire Black wire Grid 3.7 Earth Connection(mandatory) Ground cable shall be connected to ground plate on grid side this prevents electric shock. if the original protective conductor fails. 3.8 WIFI Connection For the configuration of Wi-Fi Plug,please refer to illustrations of the Wi-Fi Plug. - 13 -... -
Page 16: Wiring System For Inverter
3.9 Wiring System for Inverter - 14 -... -
Page 17: Single Phase Parallel Connection Diagram
3.10 Single phase parallel connection diagram Inverter No.3 (slave) DSM 485 DSM CAN DRMs Ground Parallel A Parallel B Inverter Inverter No.2 (slave) Inverter No.1 (master) Battery pack Grid Master inverter Slave Inverter Slave Inverter Advanced Function Advanced Function Advanced Function Parallel Modbus SN A Phase... -
Page 18: Three Phase Parallel Inverter
3.11 Three phase Parallel Inverter - 16 -... -
Page 19: Operation
4. OPERATION 4.1 Power ON/OFF Once the unit has been properly installed and the batteries are connected well,simply press On/Off button(located on the left side of the case) to turn on the unit.When system without battery connected,but connect with either PV or grid,and ON/OFF button is switched off, LCD will still light up(Display will show OFF),In this condition,when switch on ON/OFF button and select NO battery,system can still working. -
Page 20: Lcd Display Icons
5. LCD Display Icons 5.1 Main Screen The LCD is touchscreen,below screen shows the overall information of the inverter. 05/28/2019 15:34:40 4.50 -1.54 -1.40 1.46 1.The icon in the center of the home screen indicates that the system is Normal operation. If it turns into “comm./F01~F64”... - Page 21 5.1.1 LCD operation flow chart Solar Page Solar Graph Grid Page Grid Graph Inverter Page Main Screen Battery Page BMS Page Load Page Load Graph Battery Setting System Work Mode Grid Setting System Setup Gen Port Use Basic Setting Advanced Function Device info - 19 -...
-
Page 22: Solar Power Curve
5.2 Solar Power Curve Solar This is Solar Panel detail page. ① ① Solar Panel Generation. Power: 1560W Today=8.0 KWH ③ ② Voltage,Current,Power for each MPPT. PV1-V: 286V PV2-V: 45V Total =12.00 KWH ② ③ PV1-|: 5.5A PV2-|: 0.0A Solar Panel energy for Day and Total. P1: 1559W P2: 1W Press the “Energy “button will enter into the power... -
Page 23: Curve Page-Solar & Load & Grid
Li-BMS Mean Voltage:50.34V Charging Voltage :53.2V Batt Total Current:55.00A Discharging Voltage :47.0V Data Mean Temp :23.5C Charging current :50A Stand-by Total SOC :38% Discharging current :25A Dump Energy:57Ah SOC: 36% Details Data U:50.50V I:-58.02A Li-BMS Power: -2930W Charge Volt Curr Temp Energy Fault... -
Page 24: System Setup Menu
5.4 System Setup Menu System Setup This is System Setup page. System Work Mode Battery Setting Gen Port Grid Setting Basic Advanced Device Info. Setting Function 5.5 Basic Setup Menu Basic Setting This is Basic Setup page. Time Syncs Beep Auto Dim Year Month... - Page 25 ① ③ Battery Setting This is Battery Setup page. Start =30%---It indicates that the Generator will start when ② Start the Battery capacity is less than 30% in Off-grid mode. ① Batt Set2 = 40A---It indicates the Current that the Generator charges the Battery after starting.
-
Page 26: System Work Mode Setup Menu
① Battery Setting There are 4 stages of charging the Battery . ① ③ Float V Shutdown 55.2V 41.0V This is for professional installers,you can keep it if you ② Low Batt 45.0V Batt do not know. Absorption V 57.6V Set3 Restart 52.0V... -
Page 27: Grid Setup Menu
5.8 Grid Setup Menu Grid Setting Please select the correct Grid Mode in your local area. If Grid Mode General Standard you are not sure, please choose General Standard. UL1741＆ IEEE1547 Grid CPUC RULE21 Please select the correct Grid Type in your local area, Set1 otherwise the machine will not work or be damaged. -
Page 28: Generator Port Use Setup Menu
5.9 Generator Port Use Setup Menu GEN PORT USE Generator Input: use Generator SmartLoad Output: if the SOC is up than “ON”and solar power Mode is high than 1000W. the inverter will open smartload. Generator Input On Grid always on: mean when have Grid, the smartload will always on. Rated Power PORT Micro Inv Input: Inverter will open Microinverter. -
Page 29: Device Info Setup Menu
PassWord Factory Reset: 9999 X--X--X--X Lock out all changes:7777 CANCEL 5.11 Device Info Setup Menu Li-BMS Li-BMS Device Info. This page show Inverter ID, Inverter version Inverter ID: 1601012001 Charge Charge Volt Volt Curr Curr Temp Temp Energy Energy Fault Fault MAIN:Ver1400 HMI: Ver0302... - Page 30 Mode II: With Wind Turbine AC cable DC cable Wind Backup Load On-Grid Home Load Wind Turbine Controller Grid Battery Mode III: With Generator AC cable DC cable Solar Backup Load On-Grid Home Load Grid Battery Generator Mode IV: With Smart-Load AC cable DC cable Solar...
-
Page 31: Fault Information And Processing
Mode V: With On-Grid Inverter On-Grid+AC couple AC cable DC cable Solar Backup Load On-Grid Home Load Grid Battery Single Phase Inverter The 1st priority power of the system is always the PV power,then 2nd and 3rd priority power will be the battery bank or grid according to the settings. The last power backup will be the Generator if it is available. - Page 32 Error code Description Solutions Inverter work mode changed Working mode change 1. wait for a minute and check; 2. Seek help from us, if can't go back to normal state. AC side over current fault 1. Please check whether the backup load power and common AC over current fault load power are within the range;...
- Page 33 Error code Description Solutions Battery voltage low 1. Check whether battery voltage is too low; DC busbar voltage is 2. If the battery voltage is too low, using PV or grid to charge the too low battery; 3. Seek help from us, if can not go back to normal state. 1.
-
Page 34: Limitation Of Liability
8.Limitation of Liability In addition to the product warranty described above, the state and local laws and regulations provide financial compensation for the product's power connection (including violation of implied terms and warranties). The company hereby declares that the terms and conditions of the product and the policy cannot and can only legally exclude all liability within a limited scope. - Page 35 Max Continuous AC Passthrough (A) Power Factor 0.8 leading to 0.8 lagging Output Frequency and Voltage 50/60Hz; 220/230/240Vac(single phase) Grid type Single Phase Current harmonic distortion THD<3%(Linear load) <1.5% Efficiency Max. Efficiency 97.60% Euro Efficiency 96.50% MPPT Efficiency 99.90% Protection PV Input Lightning Protection Integrated Anti-islanding Protection...
- Page 36 Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China Tel: +86 (0) 574 8622 8957 Fax: +86 (0) 574 8622 8852 E-mail: wutz@deye.com.cn Web: www.deyeinverter.com Ver: 1.6, 2020-04...
