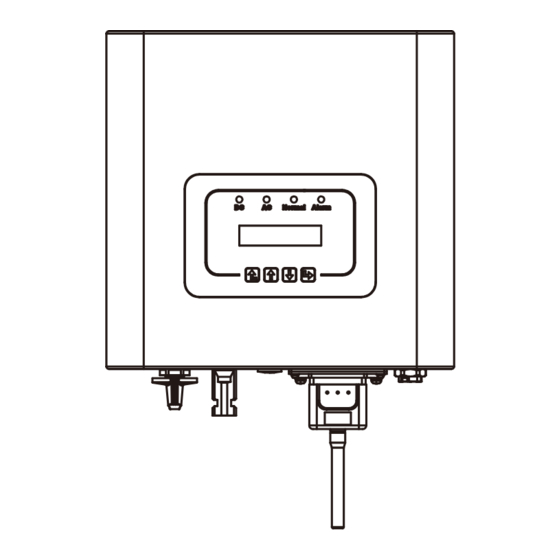

Grid-connected PV Inverter
SUN-1.5K-G04P1-EU-AM1
SUN-1K-G04P1-EU-AM1
SUN-2K-G04P1-EU-AM1
SUN-3K-G04P1-EU-AM1
SUN-4K-G04P1-EU-AM1
User Manual
R
SUN-1.5K-G04P1-EU-AM1
SUN-2.5K-G04P1-EU-AM1
SUN-3.6K-G04P1-EU-AM1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUN-1.5K-G04P1-EU-AM1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deye SUN-1.5K-G04P1-EU-AM1

Summary of Contents for Deye SUN-1.5K-G04P1-EU-AM1

  • Page 1 Grid-connected PV Inverter SUN-1.5K-G04P1-EU-AM1 SUN-1K-G04P1-EU-AM1 SUN-1.5K-G04P1-EU-AM1 SUN-2K-G04P1-EU-AM1 SUN-2.5K-G04P1-EU-AM1 SUN-3K-G04P1-EU-AM1 SUN-3.6K-G04P1-EU-AM1 SUN-4K-G04P1-EU-AM1 User Manual...
  • Page 2 - 1 - 1. Introduction ………………………………………………………… 1.1 Appearance Introduction - 1 - ………………………………………… 1.2 Parts list - 2 - ………………………………………………………… 2. Safety warnings and instructions - 3 - ……………………………………… 2.1 Safety signs - 3 - ………………………………………………………… 2.2 Safety instructions - 3 - …………………………………………………...

  • Page 3: About This Manual

    Documents must be stored carefully and be available at all �mes. Contents may be periodically updated or revised due to product development. The informa�on in this manual is subject to change without no�ce.The latest manual can be acquired via service@deye.com.cn Photovoltaic Grid-connected System...
  • Page 4 1.2 Parts list Please check the following table, to see whether all the parts are included in the package： Stainless steel Grid-�ed PV String Inverter Wall moun�ng bracket x1 screws M4×12 DC+/DC- Plug connectors Stainless steel an�-collision including metal terminal bolt M6×60 AC power connectors x1 User...
  • Page 5 2. Safety warnings and instruc�ons Improper use may result in poten�al electric shock hazards or burns. This manual contains important instruc�ons that should be followed during installa�on and maintenance. Please read these instruc�ons carefully before use and keep them for future reference. 2.1 Safety signs Safety symbols used in this manual, which highlight poten�al safety risks and important safety informa�on, are listed as follows:...
  • Page 6 Shock Hazard: When PV module is exposed to sunlight, the output will generate DC voltage. Prohibit touching to avoid shock hazard. Shock Hazard: While disconnect the input and output of the inverter for maintenance, please waits for at least 5 mins un�l the inverter discharge the remnant electricity. High Temperature Hazard: Local temperature of inverter may exceed 80℃...
  • Page 7 3. Opera�on Interface 3.1 Interface View Normal Alarm Pic 3.1 Front panel display 3.2 Status Indicator There are four LED status indicator lights in the front panel of the inverter. Please see table 3.1 for details. Indicator status Explanation Inverter detects DC input ●DC off...
  • Page 8 3.3 Bu�ons There are four keys in the front panel of the Inverter(from le� to right): Esc, Up, Down and Enter keys. The keypad is used for: ● Scrolling through the displayed op�ons (the Up and Down keys); ● Access to modify the adjustable se�ngs (the Esc and Enter keys). Down Enter 3.4 LCD Display...
  • Page 9 4. Product installa�on 4.1 Select installa�on loca�on To select a loca�on for the inverter, the following criteria should be considered: WARNING: Risk of fire ● Do not install the inverter in areas containing highly flammable materials or gases. ● Do not install the inverter in poten�ally explosive atmospheres. ●...
  • Page 10 ● Install on a wall or strong structure capable of bearing the weight. ● Install ver�cally with a maximum incline of +/-15°. If the mounted inverter is �lted to an angle greater than the maximum noted, heat dissipa�on can be inhibited, and may result in less than expected output power.
  • Page 11 ≥500mm ≥500mm Pic 4.3 Installa�on Gap 4.2 Inverter Installa�on The inverter is designed according to the wall mounted type installa�on, please use the wall mounted (the brick wall of the expansion bolt) when installing. Anchoring Moun�ng bracket Stainless steel screws Inverter Pic 4.4 Inverter Installa�on - 09 -...
  • Page 12 Procedure shows below: Locate on the appropriate wall according to the bolt posi�on on the moun�ng bracket, then mark the hole.On the brick wall, the installa�on must be suitable for the expansion bolt installa�on. Pic 4.5 Inverter hanging plate installa�on 2.
  • Page 13 5 Electrical Connec�on 5.1 DC input terminal connec�on 1. Switch the Grid Supply Main Switch(AC)OFF. 2. Switch the DC lsolator OFF. 3. Assemble PV input connector to the inverter. Warning: When using PV modules, please ensure the PV+ & PV- of solar panel is not connected to the system ground bar.
  • Page 14 The steps to assemble the DC connectors are listed as follows: a)Strip off the DC wire about 7mm, disassemble the connector cap nut (see picture 5.3). Pic 5.3 Disassemble the connector cap nut b) Crimping metal terminals with crimping pliers as shown in picture 5.4. Pic 5.4 Crimp the contact pin to the wire c) Insert the contact pin to the top part of the connector and screw up the cap nut to the top part of the connector.
  • Page 15 Prohibit using a single circuit breaker for mul�ple inverters, prohibit the connec�on of load between inverter circuit breakers. Model Cable CSA Cable outer dia Breaker Max cable length 2.5mm² 15-18mm 10A/400V SUN-1K-G04P1-EU-AM1 2.5mm² 15-18mm 10A/400V SUN-1.5K-G04P1-EU-AM1 Outside cable 2.5mm² 15-18mm 16A/400V SUN-2K-G04P1-EU-AM1 (L+N+PE)20m 2.5mm² 15-18mm 16A/400V SUN-2.5K-G04P1-EU-AM1 2.5mm² 15-18mm 20A/400V...
  • Page 16 Model Cable CSA Cable outer dia Breaker Max cable length 2.5mm² 15-18mm 32A/400V Outside cable SUN-3.6K-G04P1-EU-AM1 (L+N+PE)20m 2.5mm² 15-18mm 32A/400V SUN-4K-G04P1-EU-AM1 Table 5.2 Cable informa�on The AC output connector is divided into three parts: matching socket, sleeve and sealing- sleeve, as shown in picture 5.7, the steps are as follows: Step 1: Remove the cable sealing ring and sleeve in sequence from the AC connector.
  • Page 17 Step 5: Use the hexagon screwdriver, loosen the bolts of the socket in turn, and insert each cable core into the corresponding jack, and set each screw. The connec�on hole of AC connec�on terminal labeling is shown in picture 5.9. Pic 5.9 AC Connector Hole Pa�ern Step 6: Set the sleeve and sealing ring in place.
  • Page 18 5.3 The connec�on of the ground line Good grounding is good for resis�ng surge voltage shock and improving EMI perfor- mance.Therefore, before connec�ng AC, DC and communica�on cables, you need to ground the cable firstly. For a single system, just ground the PE cable. For mul�ple machine systems, all PE cables of the inverter need to be connected to the same grounding copper platoon to ensure the equipoten�al connec�on.
  • Page 19 In order to protect the inverter AC connec�on, it is recommended to install a circuit breaker to prevent overcurrent. See table 5.3 below. Rated output Rated output Inverter voltage(V) current(A) device(A) SUN-1K-G04P1-EU-AM1 SUN-1.5K-G04P1-EU-AM1 SUN-2K-G04P1-EU-AM1 10.9 SUN-2.5K-G04P1-EU-AM1 SUN-3K-G04P1-EU-AM1 SUN-3.6K-G04P1-EU-AM1 15.7 17.4 SUN-4K-G04P1-EU-AM1 Table 5.3 Recommended current protector specifica�ons...

  • Page 20: Startup And Shutdown

    5.6 Installa�on of datalogger When the inverter is out of the factory, the installa�on loca�on of datalogger is sealed by a plate as shown in Picture 5.13. When installing the datalogger, remove the sealing plate, replace it with the sealing plate with square hole in the accessories, and �ghten the screws. Insert the datalogger into the interface and fix it with a screw.
  • Page 21 6.1 Start up the inverter When star�ng up the Single Phase String Power Inverter , should fellow steps below： 1. Star�ng switch on the AC breaker. 2. Turn on the DC switch of the PV module, and if the panel provides sufficient star�ng voltage and power, the inverter will start.
  • Page 22 7. Zero-export func�on via energy meter When you are reading this, we believe that you have completed the connec�on according to the requirements of chapter 5, if you have been running your inverter at this �me, and you want to use the zero-export func�on, please turn off AC and DC switch of the inverter, and wait for 5 minutes un�...
  • Page 23 Inverter Breaker Solar Panel array VCC_5V 485_B Family load 230V/2T RS 485 Female connector RS 485 Male meter connector 485_A 1+COM 485_A Grid 485_B Pic 7.2 Connec�on diagram of EASTRON meter Pic 7.3 Parameter se�ng Meter SN:2 EASTRON When the meter connected Power: successfully, it will shows SN: 2...
  • Page 24 Grid voltage sample RS 485 9 10 EASTRON SPLIT CORE CT ESCT TA16 600v,CAT II I，50-60Hz Accuracy:0.5% White S Black Rated Input 120A Rated Output 40mA ZR20220513 SDM120CTM-40mA (ESCT-TA16 120A/40mA) Pic 7.4 EASTRON meter Inverter Breaker Solar Panel array VCC_5V 485_B Family load RS 485...
  • Page 25 System connec�on diagram for the CHNT meter Grid input Output RS 485 DDSU666 DIN-RAIL METER 230V 5(60) A 800imp/kWh CHNT DDSU666 Pic 7.6 CHNT meter Inverter Breaker Solar Panel array VCC_5V 485_B Family load RS 485 Female connector RS 485 Male connector 485_A meter...
  • Page 26 white blue RS 485 Input DDSU666 Single-Phase Smart Meter Grid voltage sample 230V 100A/40mA 50/60Hz Current Transformer 5 6 24 25 CTF16-2k5-100 In:100A DDSU666-CT (CTF16-2K5-100A) Pic 7.9 CHNT meter Inverter Breaker Solar Panel array VCC_5V 485_B Family load RS 485 Female connector RS 485 Male meter...

  • Page 27: System Param

    7.1 Use of zero-export func�on When the connec�on is completed, the following steps should be refered to use this func�on: 1. Turn on the AC switch. 2. Turn on the DC switch, wai�ng for the inverter's LCD is turned on. 3.
  • Page 28 7.2.1 Zero-export func�on via CT When you are reading this, we believe that you have completed the connec�on according to the requirements of chapter 5, if you has been running your inverter at this �me, and you want to use the limiter func�on, please turn off AC and DC switch of the inverter, and wait for 5 minutes un�l the inverter completely discharged.
  • Page 29 7.3 Use of limiter func�on When the connec�on is completed, the following steps should be refered to use this func�on: 1. Turn on the AC switch. 2. Turn on the DC switch, wai�ng for the inverter's LCD is turned on. 3.
  • Page 30 7.4 Notes while using zero export func�on For your safety and the opera�on of limiter func�on of the inverter, we put forward the following sugges�ons and precau�ons: Safety Hint: Under zero export mode we strongly recommend that the two PV arrays are formed by the same number of PV panels of the same size, which will make the inverter more responsive to limit the power.
  • Page 31 Secondly, go to plant page, if it shows the PV power, load power and grid power, which means the configura�on is correct. - 29 -...

  • Page 32: General Opera�On

    8. General Opera�on During normal opera�on, the LCD shows the current status of the inverter, including the current power, total genera�on, a bar chart of power opera�on and inverter ID, etc. Press the Up key and the Down key to see the current DC voltage, DC current, AC voltage, AC current, inverter radiator temperature, so�ware version number and Wifi...
  • Page 33 8.1 The ini�al interface From the ini�al interface, you can check PV power, PV voltage, grid voltage, inverter ID, model and other infoma�on. Power: Power: State: Standby State: Com.Error Pic 8.2 The ini�al interface Press UP or Down, you can check inverter DC voltage, DC current, AC voltage, AC current and inverter radiator temperature(Temperature can only be seen by long pressing the bu�on [ESC].
  • Page 34 Load Power: Pic 8.9 Load power LoadEp: Daily consump�on; LoadEp: 0.00KWh Total: Total energy consump�on. Total : 0.00KWh Pic 8.10 Load consump�on E-Day: Daily genera�on; E-Day : E-Total: Total genera�on. E-Total : 134KWh Pic 8.11 PV genera�on 8.2 Submenus in the Main Menu There are five submenus in the Main Menu.
  • Page 35 8.2.2 Fault Record It can keep eight fault records in the menu including �me, customer can deal with it depends on the error code. Device Info. 1 F35 220209 02 Fault Record << 2 F35 220120 08 Pic 8.13 Fault Record 8.2.3 ON/OFF se�ng ON / OFF <<...
  • Page 36 8.2.4 Parameter se�ng There are four submenus in the setup.Se�ng includes system param, run param, protect param, comm.param. All of these informa�on for maintenance reference. Setup << System Param << Param Protect Param Comm. Param << Pic 8.15 Submenus of the parameter setup 8.3 System param se�ng System Param includes �me set, language set, display set and factory reset.
  • Page 37 8.4 Running param se�ng Warning: Password required-- only for access-authorized engineer. Un-authorized access may avoid the warranty. The ini�al password is 1234. PassWord Pic 8.22 Password 8.4.1 Ac�veP se�ng Adjust the output ac�ve power in % Ac�veP: ActiveP QMode: Mul�ple reac�ve power control modes QMode OFF <<...
  • Page 38 Limiter ON << Feed-in Pic 8.28 Feed_In %: it is used to deploy how much MPPT Num 0 << power can be feed into grid. For example, Feed_in=50% of the 6W model, Feed-in which means Max. 3KW power can be feed into grid. And, this parameter is valid only a�er connec�ng a meter and the meter func�on is "ON".
  • Page 39 OFDerate 0.00 OFDerate HYS UFUprate ON << UFUprate HYS << Pic 8.31 ac�ve power droop WGra 0.000% WGra 0.000% OFF <- ON <- Sunspec Sunspec << Cancel << Cancel 8.5 Protect Param se�ng Warning: Engineer Only. We will set the param depends on the safety requirements, so customers don't need to reset it.
  • Page 40 00 NB/T 32004 << Cancel Warning: Engineer only. 8.6 Comm. param se�ng Address: 16 << BaudRate: 9600 BaudRate: 9600 Meter: AUTO Pic 8.33 Data Logger Modbus Address Pic 8.34 The currently detected meter - 38 -...

  • Page 41: Repair And Maintenance

    Check the solar panel output connec�on. Failure in reading memory (EEPROM). Restart the inverter if the Read the memory error fault s�ll exists, contact your installer or Deye service. Failure in wri�ng memory (EEPROM). Restart the inverter if the Write the memory error fault s�ll exists, contact your installer or Deye service.
  • Page 42 AC over current fault of hardware 2. Restart the inverter or factory reset, if the error s�ll exists, please contact your installer or Deye service. 1. When inverter is running, wifi plug plugin,will occur F19. All hardware failure synthesis 2.
  • Page 43 3. Check if the so�ware is not suitable for this inverter. (Old AC main contactor failure inverter not have relays detec�on func�on) 4. restart the inverter, if the fault s�ll exists, contact your installer or Deye service. Dc boost so� start Not avaiable. Inverter 2 dc high fault Hardly appear the code.
  • Page 44 DC busbar voltage is too low then showing F56, maybe Loss of driver or need update firmware. 3. Restart the inverter, if the fault s�ll exists, contact your installer or Deye service. AC reverse irriga�on AC reverse irriga�on. AC grid U over current Hardly appear the code.
  • Page 45 11.Specifica�on SUN-1K-G04P1 SUN-1.5K-G04P1 SUN-2K-G04P1 SUN-2.5K-G04P1 Model -EU-AM1 -EU-AM1 -EU-AM1 -EU-AM1 Input Side Max.DC Power(kW) Max.DC Input Voltage(V) Start-up DC Input Voltage(V) MPPT Opera�ng Range(V) 70~500 Max.DC Input Current(A) Max. Short Circuit Current (A) 19.5 Number of MPPT/Strings per MPPT Output Side Rated Output Power(kW) Max.Ac�ve Power(kW) 1.65...
  • Page 46 General Data DC Connec�on MC-4 mateable AC Connec�on IP65 rated plug Display LCD1602 Interface RS485/RS232/Wifi/LAN - 44 -...
  • Page 47 SUN-3K-G04P1 SUN-3.6K-G04P1 SUN-4K-G04P1 Model -EU-AM1 -EU-AM1 -EU-AM1 Input Side Max.DC Power(kW) Max.DC Input Voltage(V) Start-up DC Input Voltage(V) MPPT Opera�ng Range(V) 70~500 Max.DC Input Current(A) Max. Short Circuit Current (A) 19.5 Number of MPPT/Strings per MPPT Output Side Rated Output Power(kW) Max.Ac�ve Power(kW) 3.96 Rated AC Grid Voltage(V)
  • Page 48 General Data DC Connec�on MC-4 mateable AC Connec�on IP65 rated plug Display LCD1602 Interface RS485/RS232/Wifi/LAN 2022-08-30 Ver: 2.2 - 46 -...
  • Page 49 Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China Tel: +86 (0) 574 8622 8957 Fax: +86 (0) 574 8622 8852 E-mail: service@deye.com.cn Web: www.deyeinverter.com...

This manual is also suitable for:
