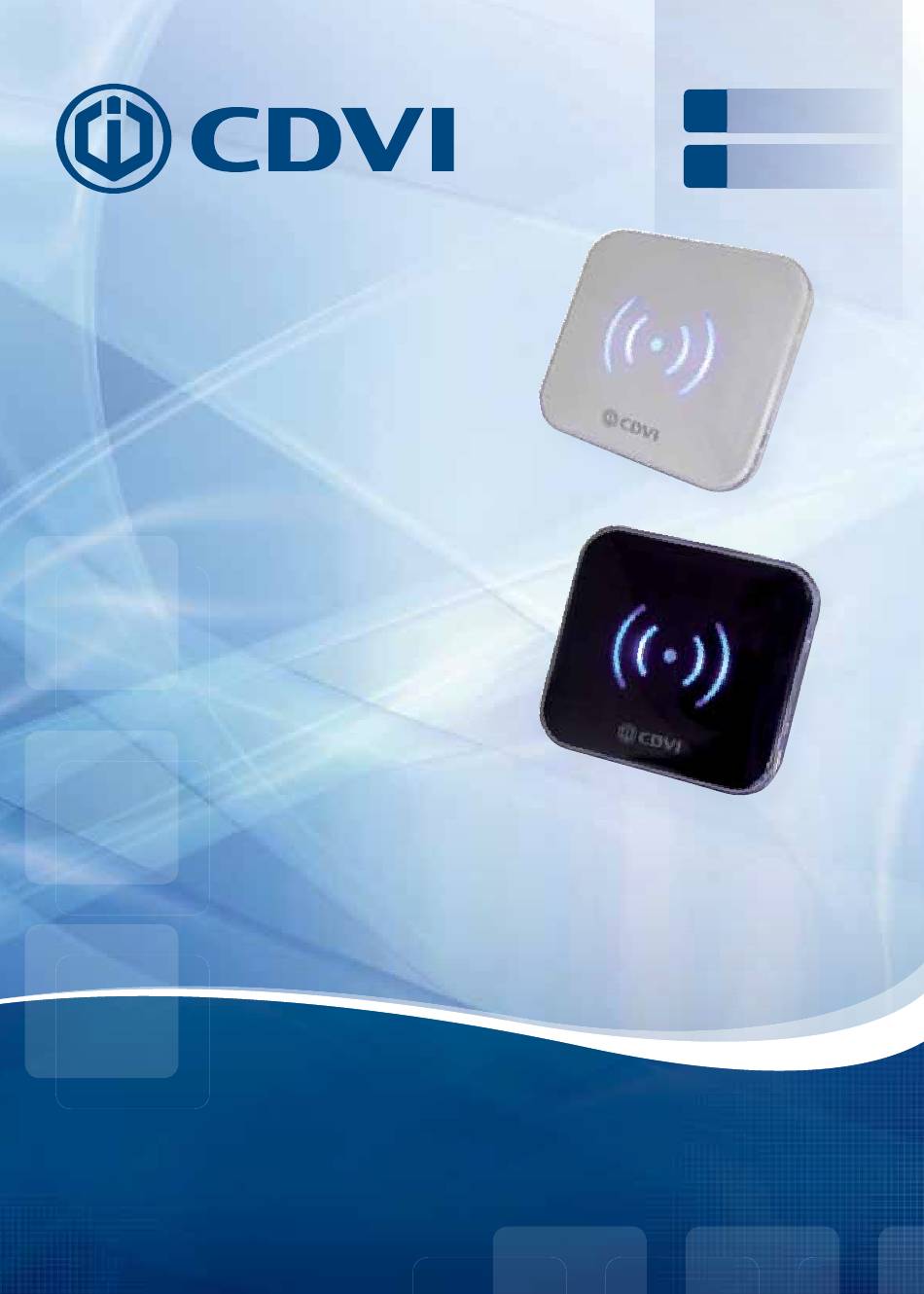

- Page 1 ESPAÑOL ENGLISH MOONARW MOONARW MOONARB MOONARB Lector de proximidad 125 kHz empotrable Flush-mount 125 kHz proximity reader La elección del instalador cdvigroup.com...
- Page 2 MANUAL DE INSTALACIÓN MOONARW - MOONARB Lector de proximidad 125 kHz empotrable Gracias por la confianza que ha depositado en CDVI con la adquisición de este producto. 1] PRESENTACIÓN DE PRODUCTO Wiegand 26, 30 o 44 bits. Lector empotrable (caja de mecanismos incluida).
-
Page 3: Elementos Incluidos
MANUAL DE INSTALACIÓN MOONARW - MOONARB Lector de proximidad 125 kHz empotrable 3] ELEMENTOS INCLUIDOS 4] MONTAJE Caja de Carcasa Parte mecanismos Varistor delantera electrónica con tornillos MOONAR 5] CABLEADO DIPSWITCH 1 Y 2 26 bit 30 bit Al conectar el lector... - Page 4 MANUAL DE INSTALACIÓN MOONARW - MOONARB Lector de proximidad 125 kHz empotrable 6] FORMATO DE SALIDA WIEGAND 26, 30 Y 44 BITS CRONOGRAMAS Lógica 0 Lógica 1 \DATA1 \CLOCK \DATA0 50 μs 50 μs Salidas en colector abierto con pull ups internos de 1 K a +5 o +12 V según posición de dipswitch ST4.
- Page 5 MANUAL DE INSTALACIÓN MOONARW - MOONARB Lector de proximidad 125 kHz empotrable FORMATO WIEGAND 30 BITS 1 - Primera paridad: 1 bit – paridad par de los primeros 14 bits. Códio del tag: Se forma con 7 mitades de un byte.
- Page 6 MANUAL DE INSTALACIÓN MOONARW - MOONARB Lector de proximidad 125 kHz empotrable 7] GESTIÓN DE LED EN EL SISTEMA DE CONTROL DE ACCESOS CENTAUR SIGNIFICADO DE LED: VERDE ACCESO CONCEDIDO ROJO ACCESO DENEGADO AZUL EN STAND-BY AJUSTES DEL LED ROJO...
-
Page 7: Product Presentation

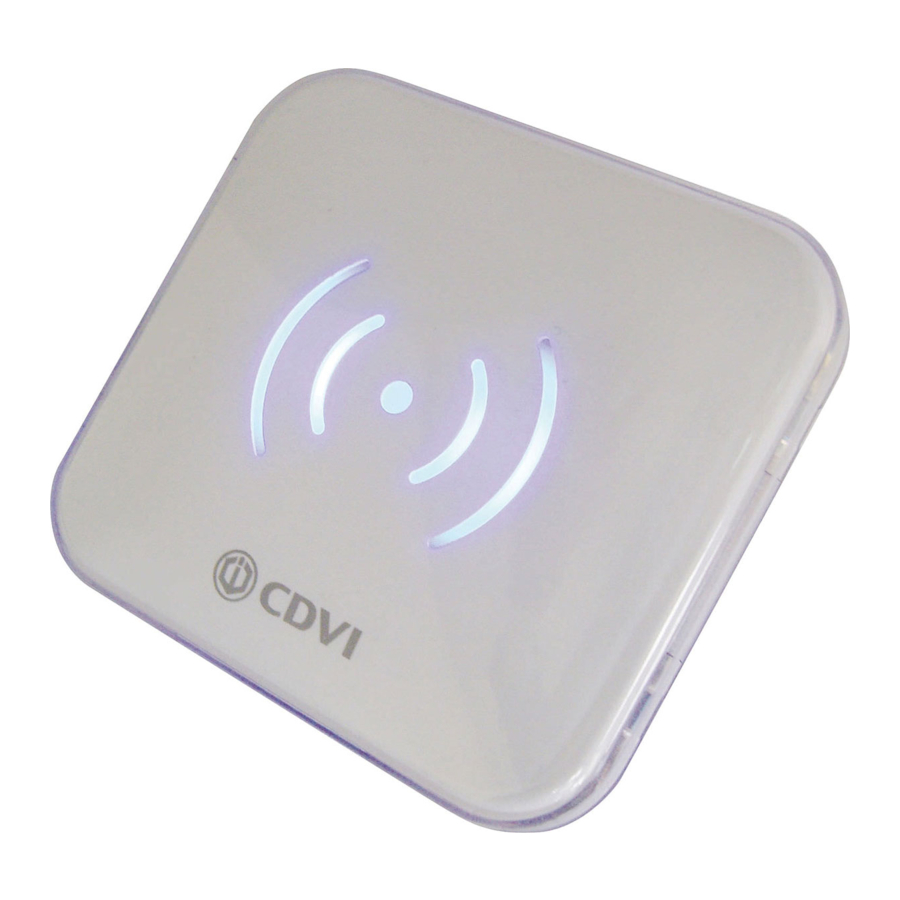

INSTALLATION MANUAL MOONARW - MOONARB Flush-mount 125Khz proximity Reader Thank you for buying our products and for the confidence you placed in our company. 1] PRODUCT PRESENTATION Wiegand 26, 30 or 44 bit. Flush-mount with embedding box (supplied). Direct connection or with the door controller (INTBUSW). -
Page 8: Mounting Kit
INSTALLATION MANUAL MOONARW - MOONARB Flush-mount 125Khz proximity Reader 3] MOUNTING KIT 4] MOUNTING INSTRUCTIONS Embedding Front Electronic box with Varistor plate part screws MOONAR 5] WIRING DIPSWITCH 1 & 2 POSITIONING 26 bit 30 bit When powered up TERMINAL BLOCK... - Page 9 INSTALLATION MANUAL MOONARW - MOONARB Flush-mount 125Khz proximity Reader 6] OUTPUT FORMATS 26, 30 AND 44 BIT WIEGAND CHRONOGRAMS 0 logic 1 logic \DATA1 \CLOCK \DATA0 50 μs 50 μs Open collector output with internal pulls up 1K at +5V or +12V according the dipswitch 4 position.
- Page 10 INSTALLATION MANUAL MOONARW - MOONARB Flush-mount 125Khz proximity Reader 30-BIT WIEGAND OUTPUT 1 - First parity: 1 bit – even parity for the first 14-bit Code: A code is formed from 7 half byte. Each byte is transferred from bit 7 to bit 0.
- Page 11 INSTALLATION MANUAL MOONARW - MOONARB Flush-mount 125Khz proximity Reader 7] LED CONFIGURATION ON CENTAUR SYSTEM LED ACTUATION : GREEN ACCESS ALLOWED RED ACCESS DENIED BLUE STAND-BY RED LED SETTINGS GREEN LED SETTINGS 8] LED CONFIGURATION ON ATRIUM SYSTEM LED ACTUATION...
- Page 12 Referencia: Extranet: CDVI Group FRANCE (Headquarter/Siège social) Phone: +33 (0)1 48 91 01 02 Fax: +33 (0)1 48 91 21 21 CDVI CDVI FRANCE + EXPORT IBÉRICA Phone: +33 (0)1 48 91 01 02 [SPAIN - PORTUGAL] Fax: +33 (0)1 48 91 21 21...
