- Page 1 ® Competitor Series Body Composition Scale Model D1000 Series Version 1.0 Installation & Operation Manual 156852 Rev B...
-
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com or obtained by calling 715-234-9171 and asking for the training department Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. - Page 4 7.4 Specifications ..............38 Limited Warranty............................ 39 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars.
-
Page 5: About This Manual
About This Manual This manual can be viewed and downloaded from the Rice Lake Weighing Systems website at www.ricelake.com. Safety There are certain precautions that should be taken to prevent personal injury to the user and damage to your device. - Page 6 Please consult with a doctor before using this device in any case below. •Any woman taking contraceptives •Any woman who is/or suspects that she is pregnant. • Anyone who can be damaged physically by even a small amount of electric stimulation. •In case of using electric or electronic devices with good conductivity.
- Page 7 • The device must not be cleaned with lubricant or alcohol-based products. Plate electrode and coating can be peeled off. Use a dry cloth or wet tissue. CAUTION In case of mechanical failure, please contact Rice Lake Weighing Systems. This equipment has been tested and found to comply with the limits for medical devices to the IEC Important 60601-1-2:1994.
-
Page 8: Safety And Information Symbols
Safety and Information Symbols The International Electro-technical Commission (IEC) has established a set of symbols for medical electrical equipment, which classify a connection or warning any potential hazard. The classification of symbols is as follows. Isolated patient connection (IEC 60601-1-1:1995 Type BF (Body Protected)) This means that the input connectors are suitable for connection to humans provided there is no direct electrical connection to the heart. -
Page 9: Introduction

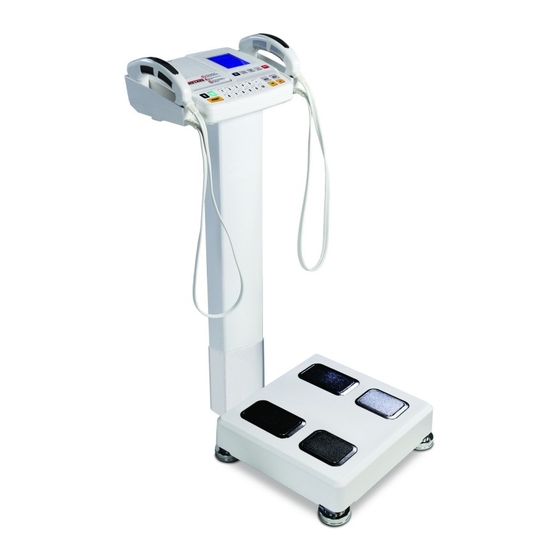

Introduction The Competitor Series comes in three models: • D1000-3, Full Body • D1000-2, Hand to Hand • D1000-1, Foot to Foot Model D1000-2 Hand to Hand Model D1000-3 Full B o d y w / o p t i o n a l column shown Model D1000-1 Foot to Foot... -
Page 10: About Body Composition
About Body Composition In physical fitness, body composition is used to describe the percentages of fat, bone and muscle in human bodies. Because muscular tissue takes up less space in our body than fat tissue, our body composition, as well as our weight, determines how lean our body is. -
Page 11: Keypad Functions
Keypad Functions Description Adjusts the scale to 0 The user can input the weight of clothes. 0-9.9 lb (0-5.5 kg) Allows the device to operate in scale mode. Press the button for two seconds and it will display BCA or SCALE on the display screen. If clothing weight is already entered, that weight will automatically be deducted from the total weight. -
Page 12: Digital Display
Digital Display Figure 2-1. Top View of the Digital Display (Shown with Hand Electrodes) Figure 2-2. Back of Digital Display Unit Competitor Series Installation & Operation Manual... -
Page 13: Scale Base
Scale Base The scale base consists of: • Four plate electrodes that measures weight. The plate electrodes measure impedance which is how fast electrical ohms travel through the body. This scale base is only available in the D1000-3 (Full Body) and D1000-1 (Foot to Foot) models. -
Page 14: Installation And Setup
The shipping carton should contain the scale base, hand held display, and this manual. If any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately and keep the original packaging material for inspection by the carrier’s representative. It is also helpful in the claim process to take pictures of the condition of the packaging and damage. -
Page 15: Scale Base Assembly
Scale Base Assembly 3.2.1 Leveling The Scale Base Ensure the scale is placed on a flat, level surface. Thin carpeting is acceptable but a hard surface works best. Turn the feet in or out until the scale level bubble is centered in the middle of the circle. Figure 3-1. -
Page 16: Connecting The Digital Display To The Scale Base
Replacing Thermal Printer Paper Use the following steps to replace the thermal printer paper in the digital display unit. Replacement thermal printer paper (Rice Lake part number 75947) can be purchased by going to www.ricelakehealth.com.. Figure 3-4. Replacing Thermal Paper in Printer Unit 1. -
Page 17: Optional Column Installation
Optional Column Installation The Competitor Series scale has an optional column that can be purchased. Use the following steps to install the optional column. It is recommended using two people to install the optional column. 1. Use the component parts shown in Figure 3-6. Figure 3-6. - Page 18 3. Assemble the mounting bracket by aligning the bolt holes located at the bottom of the weight scale and using a 5 mm Allen wrench (provided). Figure 3-8. Attach Mounting Bracket 4. Attach the digital display to the column using a screwdriver to attach the display with four bolts as shown on the left hand side of Figure 3-9.
-
Page 19: Column Cover Assembly
Column Cover Assembly Insert the column cover as shown in Figure 3-10. Figure 3-10. Column Cover Assembly 3.10 Connect Power Supply and Scale Cable Connect the scale cable to the scale port located on the back of the digital display by fastening the DB-9 cable bolts. -
Page 20: Configuration
Configuration The Competitor Series scale setup allows users to change the setting of the operational parameters. Entering System Setup To enter the System Setup, use the following steps. 1. Turn the unit on by pressing the button. ON/OFF 2. - Page 21 Parameter Description Choices Steps DATE/TIME Sets the date and time of the Year Scroll to DATE/TIME by using the left and right scale Month arrows. The date of the device is pre set from the Date and Time are already factory.
- Page 22 Parameter Description Choices Steps ABDOMINAL Sets the analysis of abdominal Scroll to ABDOMINAL by using the left and right fat under 18 years of age arrows. Press NEXT button access ABDOMINAL. Use the left and right arrows to select either Yes or No.
- Page 23 Parameter Description Choices Steps THERM LOGO Thermal logo can be used but Scroll to THERM LOGO by using the left and right requires a PC with optional arrows. Body Pass software. Press the NEXT button to access THERM LOGO. Use the left and right arrows to select either On or Off.
- Page 24 Measurement and Analysis Suggestions for Accurate and Repeatable Results For best results, the reliability of the results can be assessed by its accuracy. The “accuracy” of the device is determined by comparing the actual body composition and the results from the Competitor Series. The repeatability and reliability is determined when the device gives the identical results under the same condition.
- Page 25 Correct Posture To get the most accurate weight, there are certain steps that should be taken. The following sections show the correct way to touch the plate electrodes and how to touch the handle electrodes. 5.2.1 How to Touch Plate Electrodes on the Scale Base •...
- Page 26 Measuring Posture • Step on the scale with bare feet. Stretch both arms and spread them 40° from the body. • Do not speak or move the body until the measurement is completed. • Do not bend or shake the arms until the measurement is completed. •...
- Page 27 Body Composition Weighing Measurement 1. Turn the Competitor Series on by pressing the key. The following screen is displayed. ON/OFF Body Composition Analyzer Step on scale to Activate CLOTHES Figure 5-4. Body Composition Analyzer Main Screen 2. Select the button to measure the body composition of the person. This will toggle the main screen between Scale and BCA (Body Composition Analyzer) SCALE Deduct the Weight of Clothing.
- Page 28 7. Personal information — Input the following information in order; gender, age, and height. Confirm the input data. Press button to move to the next step. NEXT • Select gender — The following message appears, . Select either male or female Choose your gender using the male or female icon buttons located on the left side of the unit.
- Page 29 9. Result screen • After the measurement is completed, the result is displayed on the screen. Figure 5-8. Result Screen • The results are presented in graph and numerical values. • Check the results and press the (Auto Print must be on) or button to exit and clear off the PRINT NEXT...
-
Page 30: Interpreting The Results
Interpreting the Results There are various ways to interpret the criteria of the printed results. Personal Data The subject's date, height, weight, age and gender are indicated on the result sheet. Segmental Analysis Soft lean mass and body fat of five body parts (left and right arms, left and right legs, and trunk) are indicated. Body Composition The human body is mainly divided into body fat and lean body mass. -
Page 31: Body Type
Body Type Body type is determined by B.M.I and P.B.F. Body type is classified into 9 types; Low fat Low weight, Low fat Muscular, Athletic, Low weight, Standard, Over Weight Muscular, Thin fat, Over fat, Obese. It is illustrated on printed tickets shown in Figures 6-3 through 6-9. -
Page 32: Sample Print Tickets
Sample Print Tickets Tickets can be set up in a variety of ways depending on what features you want to be displayed on the ticket. The following examples on pages 28 through 33 illustrate the different configurations that can be shown. 6.8.1 Foot to Foot and Hand to Hand Example Print Tickets Vertical... - Page 33 Horizontal example with goal setter off and wrestling mode on with college values Horizontal example with goal setter off and wrestling mode on with high school values Horizontal example with goal setter on and wrestling mode off Horizontal example with goal setter off and wrestling mode off Competitor Series Installation &...
-
Page 34: Full Body Print Ticket Examples
6.8.2 Full body Print Ticket Examples Vertical example with goal setter off and Vertical example with goal setter off and wrestling mode on with college values wrestling mode on with high school values Competitor Series Installation & Operation Manual... - Page 35 Vertical example with goal setter off and wrestling mode off Vertical example with goal setter on and wrestling mode turned off Competitor Series Installation & Operation Manual — Interpreting the Results...
- Page 36 Horizontal example with goal setter off and Horizontal example with goal setter off and wrestling mode on with high school values wrestling mode on with college values Competitor Series Installation & Operation Manual...
- Page 37 Horizontal example with goal setter off and wrestling mode off Horizontal example with goal setter on and wrestling mode off Competitor Series Installation & Operation Manual — Interpreting the Results...
-
Page 38: Measuring Weight Only
Measuring Weight Only To use the Competitor Series scale for weight only, use the following steps. 1. Press the button to power up the unit. The display indicates which mode it is in (BCA or SCALE). ON/OFF Body Composition Analyzer Step on scale to Activate CLOTHES Figure 6-2. -
Page 39: Troubleshooting
Troubleshooting Storage and Maintenance • Pay attention to the allowable value to electric current. • Avoid direct sunlight, humidity, dust, thick oil and salty or extreme changes in temperature. • Do not install or store the device in a place where any chemicals or gas is stored. •... -
Page 40: Error And Repair
- Impedance is out of range Do not move during measurement. - Range: 100 ~ 950 Ω If the same error is repeated, please contact Rice Lake Weighing Systems (RLWS) or its local distributor where this device was purchased. Out of Range of Body Fat When the subject’s P.B.F. -
Page 41: Troubleshooting Assistance
3. Rice Lake Weighing Systems strives to provide the best service possible to customers. One of our skilled technicians will assist the customer in finding a solution in prompt manner. -
Page 42: Specifications
Specifications D1000-3 D1000-2 D1000-1 Type Description Full Body Hand to Hand Foot to Foot Impedance Measuring Method BIA via tetra-polar electrode method using eight touch electrodes Measurement Frequency 50k Hz < 280 µA Current Electrode Material Pressure contact stainless steel foot pads Measurement Style Between both feet ... -
Page 43: Limited Warranty
Examination of such equipment by Rice Lake Weighing Systems confirms that the nonconformity actually exists, and was not caused by accident, misuse, neglect, alteration, improper installation, improper repair or improper testing; Rice Lake Weighing Systems shall be the sole judge of all alleged non-conformities. - Page 44 Competitor Series Installation & Operation Manual...
- Page 46 230 W. Coleman St. Rice Lake, WI 54868 USA U.S. 800-472-6703 Canada/Mexico 800-321-6703 International 715-234-9171 Europe +31 (0)26 472 1319 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 06/2015 PN 156852 Rev B...
