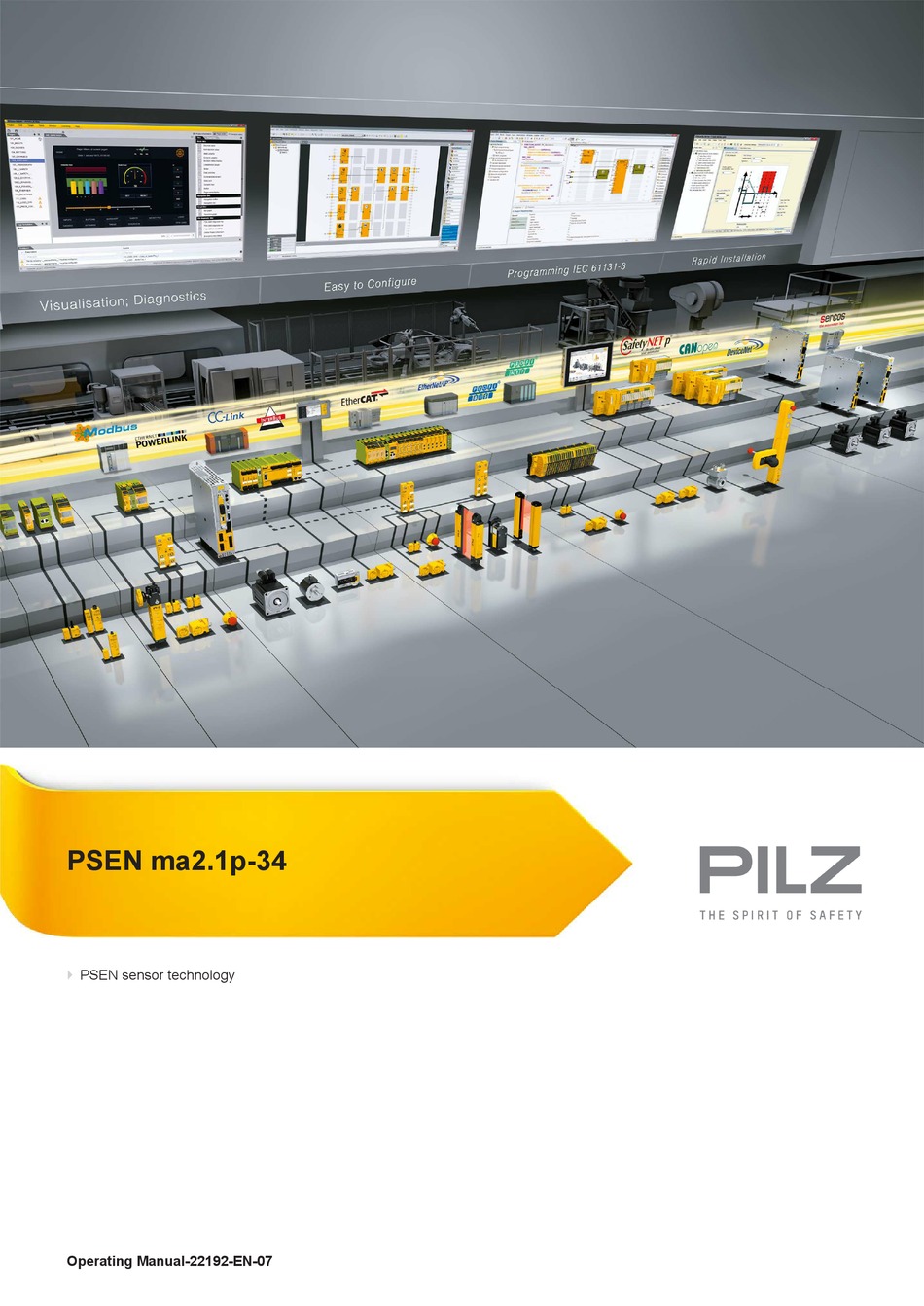

- Page 1 PSEN ma2.1p-34 PSEN sensor technology Operating Manual-22192-EN-07...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Adjustment ..........................ATEX installation and operating regulations (X) ..............Periodic test ........................... Dimensions in mm ......................... Technical details ........................Safety characteristic data ......................Order reference ........................System ............................Accessories ..........................EC declaration of conformity ....................Operating Manual PSEN ma2.1p-34 22192-EN-07... -
Page 4: Introduction
PSEN ma2.1p-34 Introduction Validity of documentation This documentation is valid for the product PSEN ma2.1p-34. It is valid until new document- ation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
The following is deemed improper use in particular Any component, technical or electrical modification to the product, Use of the product outside the areas described in this manual, Use of the product outside the technical details (see Technical details [ 17]). Operating Manual PSEN ma2.1p-34 22192-EN-07... -
Page 6: Safety Regulations
Damage can be attributed to not having followed the guidelines in the manual, Operating personnel are not suitably qualified, Any type of modification has been made (e.g. exchanging components on the PCB boards, soldering work etc.). Operating Manual PSEN ma2.1p-34 22192-EN-07... -
Page 7: Disposal
DIN EN 60529 with a safety switch that is as new. Unit features The actuator PSEN 2.1-10 belongs to the safety switch. Coded actuator Safety switch with 4-pin M8 male connector 2 safety contacts (reed contacts - N/C and N/O) Design: Square Operation Magnetic Operating Manual PSEN ma2.1p-34 22192-EN-07... -
Page 8: Function Description
If the actuator is within the response range (safety gate closed), the safety contacts of the safety switch are closed and the LED will go out. The safety switch can be used in series connections. Operate the PSEN ma2.1p-34 in conjunction with the following components: Actuator PSEN 2.1-10(see Order reference [... -
Page 9: Operating Distances
Lateral and vertical offset Legend [1] Lateral offset [2] Vertical offset Actuator PSEN 2.1-10 The stated values are valid at a temperature of 20 °C. Assured operating distance S in mm Lateral offset Vertical offset Operating Manual PSEN ma2.1p-34 22192-EN-07... -
Page 10: Wiring
– Protect the connector from being removed unintentionally. Pin assignment NOTICE The colour marking for the connection lead only applies for the cable that Pilz supplies as an accessory The safety switch is shown in an unoperated condition. brown Assignment of the 4-pin connector... -
Page 11: Requirements And Connection To Evaluation Devices
PSEN ma2.1p-34 Requirements and connection to evaluation devices For use of PSEN ma2.1p-34 in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN ma2.1p-34 either with a certified Pilz evaluation device or with an evaluation device with defined properties... - Page 12 11 12 21 22 31 32 41 Non-Ex area 11 12 21 22 33 34 43 44 Ex area PSENmag Fig.: Dual-channel connection of four PSENmag to the input circuits of an evaluation device Operating Manual PSEN ma2.1p-34 | 12 22192-EN-07...
-
Page 13: Installation
PSEN ma2.1p-34 Examples for connection to Pilz evaluation devices: PSEN i1 PNOZmulti PSENmag brown white blue black Non-Ex area Ex area Legend I0 Input OSSD I1 Input OSSD T1, T2 Test pulse outputs PSEN i1 PNOZ s3 PSENmag brown white... - Page 14 – so that the faces with the product names are opposite each other. The protection type (see Technical details [ 17]) can only be achieved by using the Pilz connection leads available as an accessory. Operating Manual PSEN ma2.1p-34 | 14 22192-EN-07...
-
Page 15: Adjustment
– Please also refer to the additional information in the Installation [ section. Installation example: The full face of the safety switch is installed on the subplate. As a result, the edges of the safety switch base are protected from shock. Operating Manual PSEN ma2.1p-34 | 15 22192-EN-07... -
Page 16: Periodic Test
Refer to the notes on checking the safety switch in EN 60079‑17 and EN 60079‑19. NOTICE The safety function should be checked after initial commissioning and each time the plant/machine is changed. The safety functions may only be checked by qualified personnel. Dimensions in mm Operating Manual PSEN ma2.1p-34 | 16 22192-EN-07... -
Page 17: Technical Details
2000 m EN 60947-5-3 Vibration EN 60947-5-2 In accordance with the standard Frequency 10 - 55 Hz 1 mm Amplitude Shock stress In accordance with the standard EN 60947-5-2 Acceleration Duration 11 ms Operating Manual PSEN ma2.1p-34 | 17 22192-EN-07... -
Page 18: Safety Characteristic Data
Where standards are undated, the 2015-09 latest editions shall apply. Safety characteristic data NOTICE You must comply with the safety characteristic data in order to achieve the required safety level for your plant/machine. Operating Manual PSEN ma2.1p-34 | 18 22192-EN-07... -
Page 19: Order Reference
Female connector, M8 10 m 533 131 straightplug10m straight, 4-pin PSEN Kabel Winkel/cable Female connector, M8 30 m 533 140 angleplug 3m angled, 4-pin PSEN Kabel Gerade /cable Female connector, M8 30 m 533 141 straightplug30m straight, 4-pin Operating Manual PSEN ma2.1p-34 | 19 22192-EN-07... -
Page 20: Ec Declaration Of Conformity
This product/these products meet the requirements of the following directives of the European Parliament and of the Council. 2006/42/EC on machines 2014/34/EU (ATEX) The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/ downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PSEN ma2.1p-34...
