Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
Wiring Pin assignment Requirements and connection to evaluation devices Installation Installation type 1 Installation type 2 Adjustment Periodic test Dimensions in mm Technical details Safety characteristic data Order reference System Accessories EC declaration of conformity Operating Manual PSEN ma1.4a-52 22122-EN-06...

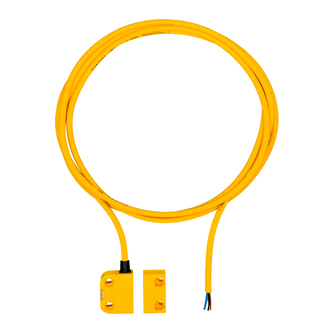

PSEN ma1.4a-52 Introduction Validity of documentation This documentation is valid for the product PSEN ma1.4a-52. It is valid until new document- ation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.
If installed in other environments, measures should be taken to comply with the applicable standards and directives for the respective installation site with regard to in- terference. Operating Manual PSEN ma1.4a-52 22122-EN-06...
In safety-related applications, please comply with the mission time T in the safety-re- lated characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN ma1.4a-52 22122-EN-06...
If the actuator is within the response range (safety gate closed), the safety contacts of the safety switch are closed. The safety switch is designed for applications in series connections. Operate the PSEN ma1.4a-52 in conjunction with the following components: Actuator PSEN ma1.4-03 or actuator PSEN ma1.4-10 (see Order reference [...
Lateral offset Vertical offset 0 mm 2 mm 4 mm 6 mm 8 mm 0 mm 10.0 10.0 2 mm 10.0 10.0 4 mm 6 mm The stated values are valid at a temperature of 20 °C. Operating Manual PSEN ma1.4a-52 22122-EN-06...
Requirements and connection to evaluation devices For use of PSEN ma1.4a-52 in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN ma1.4a-52 either with a certified Pilz evaluation device or with an evaluation device with defined properties Operating Manual PSEN ma1.4a-52...
Page 11
PSEN ma1.4a-52 – Always comply with the max. switching current safety contacts of PSEN ma1.4a-52. Outputs at the evaluation device must only be switched on again when both reed con- tacts at the safety switch have been opened and closed (partial operation lock) Operating Manual PSEN ma1.4a-52...
Page 12
23 24 33 34 43 44 11 12 21 22 31 32 41 11 12 21 22 33 34 43 44 PSENmag Fig.: Dual-channel connection of four PSENmag to the input circuits of an evaluation device Operating Manual PSEN ma1.4a-52 22122-EN-06...
PSEN ma1.4a-52 Examples for connection to Pilz evaluation devices: PNOZmulti PSEN ix1 PSENmag brown white blue black Legend Input OSSD Input OSSD T1, T2 Test pulse outputs PNOZ s3 PSEN ix1 PSENmag brown white blue black Installation The unit can be installed in any position. However, safety switches and actuators must be positioned opposite each other in parallel.
Page 14
The assured operating distance S and the assured release distance S must be tested under real conditions. Installation type 1 1. Cut the thread (M4) in the required position. 2. Use a screw to fix the sensor. Operating Manual PSEN ma1.4a-52 22122-EN-06...
Page 15
9. Close unused mounting holes using seal (2) (see Diagram [ 16]). 10. Close mounting holes on the sensing face using seal (3) (see Diagram [ 16]). 11. Installation of sensor and actuator is now complete. Operating Manual PSEN ma1.4a-52 22122-EN-06...
4. Align actuator and tighten screws with max. 0,8 Nm. 5. Close used mounting holes using seal (1) or (4) (see Diagram [ 17]). 6. Close mounting holes on the sensing face using seal (3) (see Diagram [ 17]). Operating Manual PSEN ma1.4a-52 22122-EN-06...
Carry out a monthly function test on the safety switch and actuator. Always test the function with the PSEN ix1 interface and connected evaluation device. The safety function may only be checked by qualified personnel. Operating Manual PSEN ma1.4a-52 22122-EN-06...
EN 60947-5-3 EN 60947-5-3 Vibration In accordance with the standard EN 60947-5-2 EN 60947-5-2 Frequency 10 - 55 Hz 10 - 55 Hz 1 mm 1 mm Amplitude Shock stress Acceleration 11 ms 11 ms Duration Operating Manual PSEN ma1.4a-52 22122-EN-06...
Page 20
Depth 18 mm 18 mm Weight of safety switch 180 g 180 g 16 g 18 g Weight of actuator Weight 196 g 198 g Where standards are undated, the 2015-09 latest editions shall apply. Operating Manual PSEN ma1.4a-52 22122-EN-06...
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PSEN ma1.4a-52...
