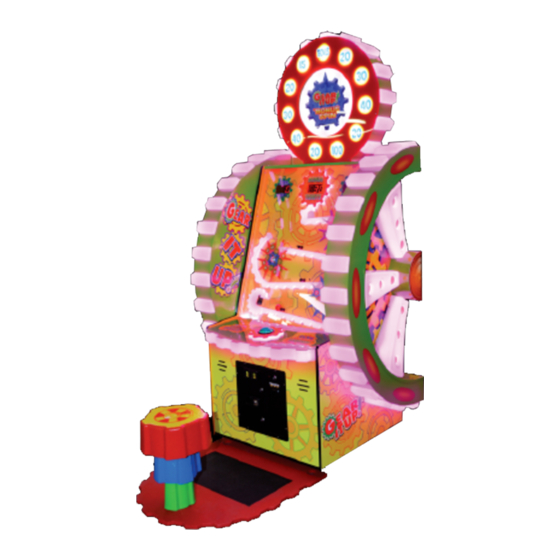

Bob's Space Racers Gear It Up Instructions

Max. bonus game play update

Hide thumbs Also See for Gear It Up:

Tech tip (2 pages)

Operator's manual (32 pages)

page of 3

/ 3
Bookmarks

Quick Links

Download this manual

BOB'S SPACE RACERS, INC.

Summary:

This update changes the payout ratio to a higher level while

also increasing the game difficulty. You do not need to be an

experienced technician to perform this update and simple

handle tools are all that is needed.

Kit includes the following:

1x – Instructions guide

1x – 1:1 close ratio gear (Part # M0803009-4)

1x – Bonus Wheel Plex (To 200 Ticket Option) Part # M0803017

1x – Updated programmed IC

1x – Options sheet

If you have any trouble performing this update, please contact

Bob's Space Racers Technical Support at 386-677-0761 ext 41

or email us at

tech@bobsspaceracers.com

BEFORE STARTING:

TURN OFF THE GAME AND DISCONNECT THE POWER FROM

THE GAME.

It is always a good idea to have a second person to help you.

Max. Bonus Game Play Update

Part # M0803009-6

MAY 2015

Gear It Up™

1:1 Close Ratio Gear

Part # M0803009-4

Programmed IC

Bonus Wheel Plex

Cover (200 points)

Part # M0803017

Update

pg. 1

Need help?

Do you have a question about the Gear It Up and is the answer not in the manual?

Questions and answers

Summary of Contents for Bob's Space Racers Gear It Up

Page 1 Gear It Up™ Max. Bonus Game Play Update Part # M0803009-6 BOB’S SPACE RACERS, INC. Summary: This update changes the payout ratio to a higher level while Bonus Wheel Plex also increasing the game difficulty. You do not need to be an...
Page 2 GEAR INSTALLATION INSTRUCTIONS: 1. Remove the front glass from the game a. Using a #2 star (phillips) type screwdriver, remove the 3 screws that secure the glass retaining bracket. b. Open the front counter c. Gently lift the glass from the slot and set aside.
Page 3 Programming Options: Use the supplied the Options Sheet to set your game options. For instructions on how to do this, see the GEAR IT UP operators manual section PROGRAMMING OPTIONS. The new game play will start with High Bonus Values and will increase the bonus faster.
