Tineco A11 HERO Instruction Manual

Stick vacuum cleaner
Hide thumbs Also See for A11 HERO:

Advertisement

Table of Contents

BC
Instruction Manual
Mode d'Emploi
Stick Vacuum Cleaner
A11 HERO/MASTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A11 HERO and is the answer not in the manual?

Questions and answers

Related Manuals for Tineco A11 HERO

Summary of Contents for Tineco A11 HERO

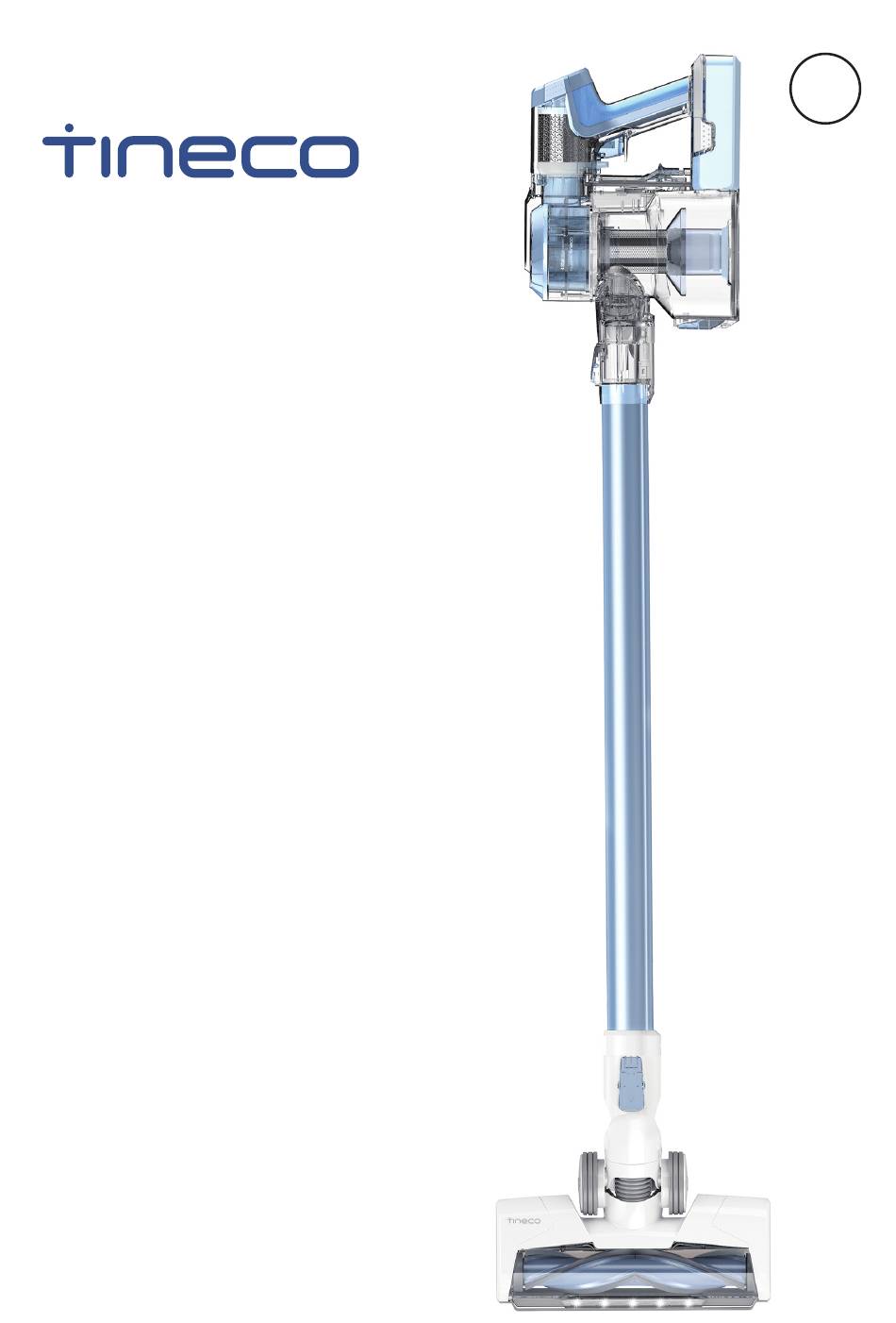

  • Page 1 Instruction Manual Mode d’Emploi Stick Vacuum Cleaner A11 HERO/MASTER...

  • Page 2: Table Of Contents

    CONTENTS 1.Important Safety Instructions 2.Overview 3.Product Components 4.Accessory Instructions 5.Assembly 6.Product Operation 7.Daily Maintenance 8.Specification 9.Trouble Shooting 10.Warranty...

  • Page 3: Important Safety Instructions

    Important Safety Instructions SAVE THESE INSTRUCTIONS Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE), Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 4 Such preventive safety measures reduce the risk of starting the appliance accidentally. 14. Recharge only with the charger specified by TINECO. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

  • Page 5: Overview

    Overview A. MAX mode G. Battery release button B. Dust empty release button H. HEPA release button C. Dustbin I. Indicator light D. Switch lock J. Rubber handle E. Switch button K. Battery pack F. Dustbin release button...

  • Page 6: Product Components

    Product Components Item A11 Hero A11 Master Main body Tube Full-size LED Multi-tasker Power Brush Mini power brush 2-in-1 Dusting brush Crevice tool Full-size LED Soft-roller Power Brush Extra battery Powerhouse Pre filter cleaning tool & extra pre filter Hair cleaning tool...

  • Page 7: Accessory Instructions

    Accessory Instructions Note: •Test an inconspicuous area of a sensitive surface before using an accessory on it. •All accessories can be directly connected to the main body or to the tube. Full-size LED Multi-tasker Power Brush Ideal for both hard floors and carpets. Mini power brush For vacuuming upholstered furniture, mattresses etc.
  • Page 8 Accessory Instructions Pre filter cleaning tool Dirty filter is a main cause of suction loss, this tool is design for a deeper & easier cleaning solution with no suction loss. For using this tool, take out the dirty pre filter from the mesh filter-holder, and replace a clean one.

  • Page 9: Assembly

    Assembly Install the Tube Insert tube. Press the release button and remove tube. Install the Brush Insert motorized power brush. Press the release button and remove motorized power brush.
  • Page 10 Assembly Install the Dustbin Press the dustbin release button and pull out. Incline the dustbin, the slot on the dustbin towards the hook on the main body. Push upward until the hook fixed into the slot. A 'click' sound will be heard when it has been successfully accomplished.

  • Page 11: Product Operation

    Product Operation Start to Work Note: •Before the first use, please charge the appliance (see "Charging the battery" ) for 3-4 hours in an area where the temperature is more than 4 (39.2°F) but less than 40 ( 104°F ), and the above data based on the condition that the battery is cooled.
  • Page 12 Product Operation Empty the Dustbin When finished, press the release button on the Reattach the dustbin's bottom cover. side of the dustbin and empty the contents. Charging the Battery Put away the main body or the batte ry on the powerhouse. Charge the main body with battery or charge the battery separately.
  • Page 13 • Data is obtained by Tineco laboratory using one battery and non-motorized accessories. Charging Time • Charging time takes about 3-4 hours. • Based on results from Tineco lab tests. Lab test environment: temperature between 4℃(39.2°F) to 40℃(104°F ). Indicator Light On Work Three solid blue lights: Full power.

  • Page 14: Daily Maintenance

    Clean the dustbin and mesh filter under cold, running water. The dustbin and mesh filter should be air dried completely before reinstalling. Clean the pre filter with Tineco Pre Filter Insert the clean pre filter into mesh filter properly, Cleaning Tool.
  • Page 15 Use a coin or other tool, to unlock the brush roller Remove the hair and debris wrapped around the lock, then remove the brush from the brush roller with Tineco Hair Cleaning Tool. window. Please see the above image. Gently clean the transparent brush window.

  • Page 16: Specification

    Specification Model A11 Series Voltage 21.6V Rated Power 450W Dustbin Capacity 0.6L Charging Time 3-4 hrs Charging Input 120V Running Time 30*2 min. (MAX mode: 12*2 min.)

  • Page 17: Trouble Shooting

    The filters or the suction mouth One blinking pink light Clean filters or remove blockages is blocked Note: If the above solutions can not solve the problem, please contact us at support@tineco.com or visit our website www.tineco.com for further support.

  • Page 18: Warranty

    Live Easy Enjoy Life tinecoglobal Web: www.tineco.com Email: support@tineco.com Contact us - We'll get back to you within 1 business day. US Service Call: +1 (855) 292-8864 Service Hours: Mon. – Fri. 9am - 6pm (CST)
