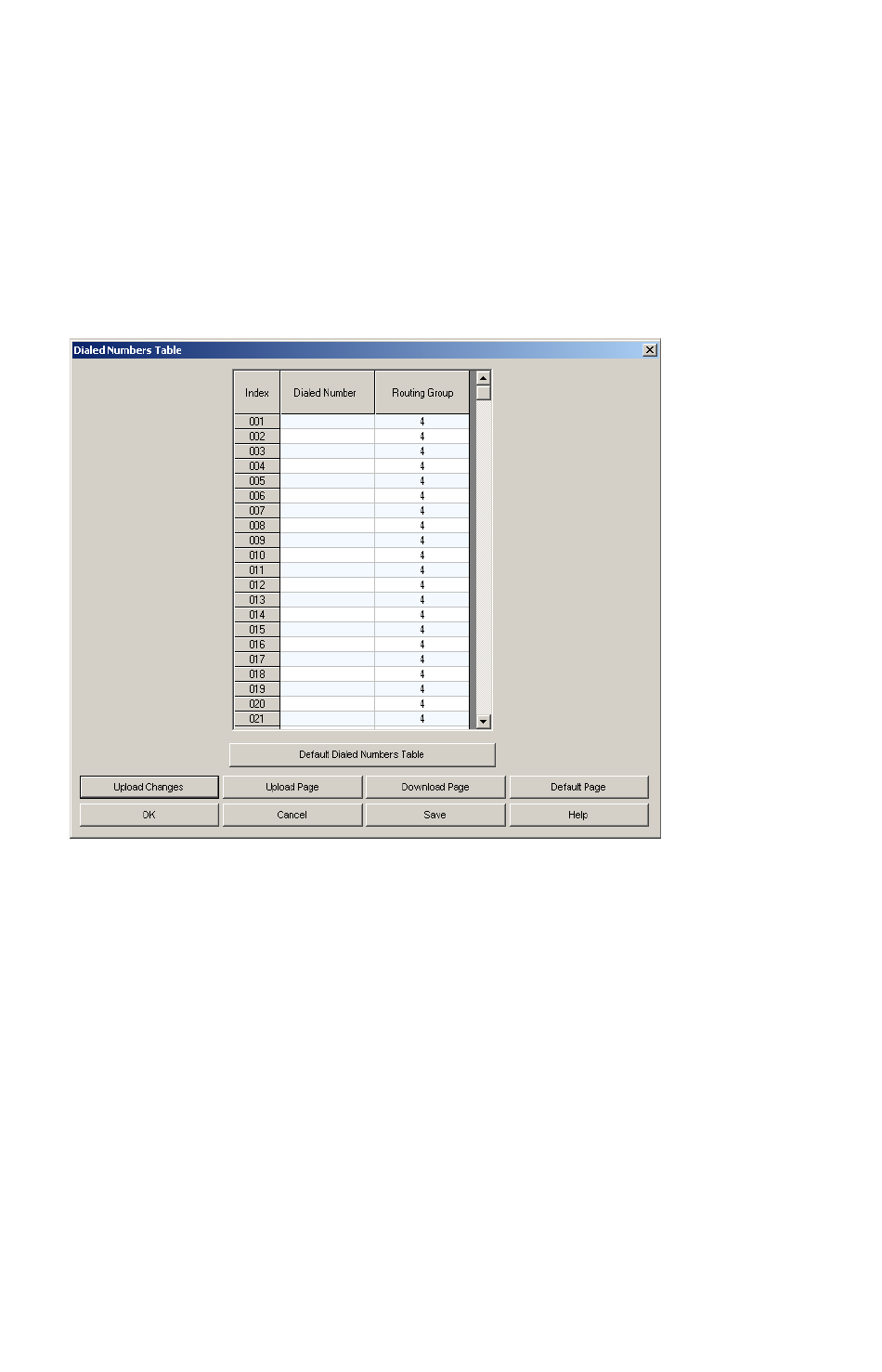

Step 9: Dialed Numbers Table
Dialed number table allows SIMADO GFX44 to select the destination port on
the basis of number dialed which results in the Least Cost Routing (LCR).
Follow the steps given below to program Dialed Numbers Table:
Open Jeeves of SIMADO GFX44. (Refer 'Programming SIMADO GFX44)
Open 'Main Menu' page and login into the Jeeves. Click on 'Dialed Numbers
Table' button and program the following parameters:
Index: In this field, the number at which the entry is made is displayed.
Maximum 250 entries can be done in dial number table.
Dialed Numbers: Program the numbers that user may dial in this field.
By default, it is blank.
Routing Group: Program the routing group for routing the dialed
number to the destination port. By default, it is 4.
Click 'Upload Changes' to upload the changes on to the system.
