(20)
A
(Table Shelf)
1- Attach part ( C ), Table Legs, to part ( B ), Table Top as shown in Figure 1, see detail 1 place leg notch
over table skirt & slide up against skirt while securing. Secure using ( 16 ) of screw (A) , 4 on each leg,
tighten screws using phillips-head screwdriver. Attach the remaining legs using the same procedure.
( Detail 1 )
A
B
(Table Top)
Hardware and Parts
Hardware and Parts
1.50
D
You will also need a phillips-head screwdriver
( not included )
(Table Legs)
(Table Top)
C
Do not use
any hand drill
on this product
Figure 1
C
Assembly Instructions
Item No: MWOOD-CT

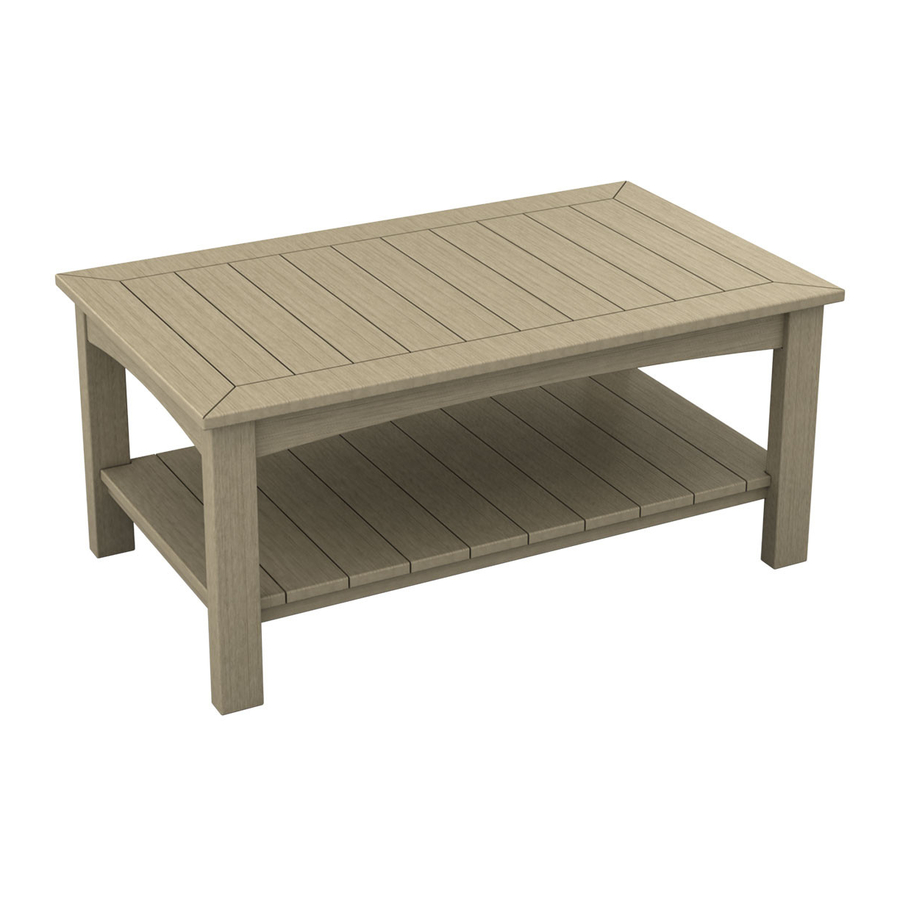

Woodlake Coffee Table
B
(Table Legs)
Advertisement
Table of Contents
Related Manuals for Sister Bay MWOOD-CT
Summary of Contents for Sister Bay MWOOD-CT
- Page 1 Assembly Instructions Item No: MWOOD-CT Woodlake Coffee Table Hardware and Parts Hardware and Parts 1.50 (20) (Table Top) (Table Shelf) (Table Legs) Do not use any hand drill You will also need a phillips-head screwdriver on this product ( not included )
- Page 2 To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about Sister Bay Furniture Cleaner. Please contact our Customer Service Department for assembly assistance, questions or replacement parts at 1-866-947-7632...
