(8)
A
(8)
B
(8)
C
You will also need a phillips-head screwdriver
( not included )
Assembly Instructions
1 - Attach part ( E ), Table Leg to part ( D ), table Top, as shown in Figure 1, see detail 1 using ( 8 ) lag screws ( A )
2 for each leg, tighten screws using an allen wrench. Follow the same instructions for the remaining legs.
Hardware and Parts
2.75
2.00
1.25
Figure 1
( Detail 1 )
Assembly Instructions
Item No: MMIL-DT

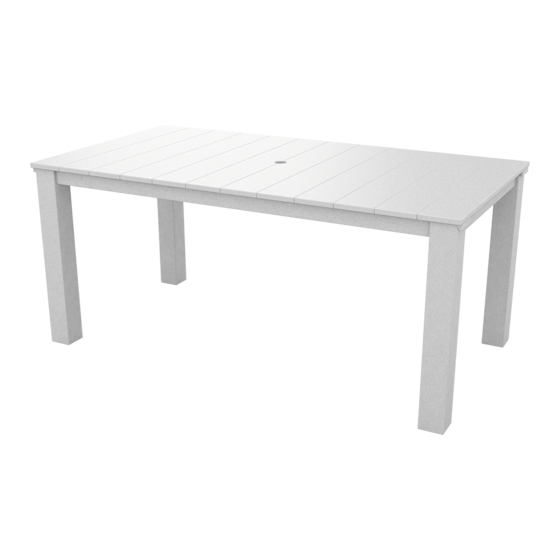

Milano Dining Table
E
( Table Leg )
ALLEN WRENCH
( included )
A
E
A
Item No: MMIL-DT44
Milano 44" Dining Table
( Table Top Assembly )
D
Do not use
any hand drill
on this product
( Table Leg )
( Table Top
D
Assembly )
Advertisement
Table of Contents
Related Manuals for Sister Bay Milano Dining Table MMIL-DT
Summary of Contents for Sister Bay Milano Dining Table MMIL-DT
- Page 1 Assembly Instructions Item No: MMIL-DT Item No: MMIL-DT44 Milano Dining Table Milano 44" Dining Table Hardware and Parts 2.75 ( Table Top Assembly ) 2.00 1.25 ( Table Leg ) Do not use ALLEN WRENCH ( included ) any hand drill You will also need a phillips-head screwdriver on this product ( not included )
- Page 2 To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about Sister Bay Furniture Cleaner. Please contact our Customer Service Department for assembly assistance, questions or replacement parts at 1-866-947-7632...
