WARNING:
Using power tools may result in overtourquing screws causing threads to strip.
We are not responsible for replacements on parts where powertools where used.
CARE & MAINTENANCE: To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about
2
Sister Bay Furniture Cleaner.Please contact our Customer Service Department for assembly assistance, questions or replacement parts at (800) 505-7926 or email
support@sisterbayfurniture.com. Our Customer Service Department is available Monday-Friday 8:30 a.m. to 4:30 P.m. CST
HDPE
Laguna
HARDWARE:
8x
16x
8x
0-3016
0-3017
0-2980
1x
Allen Wrench
7/16 Socket Head Wrench
(NOT INCLUDED)
7/16 Wrench
(NOT INCLUDED)
PARTS:
1x
30-1 Umbrella Rail
2x
30 Rail Upper
2x
30-1 Leg Asm
Collection

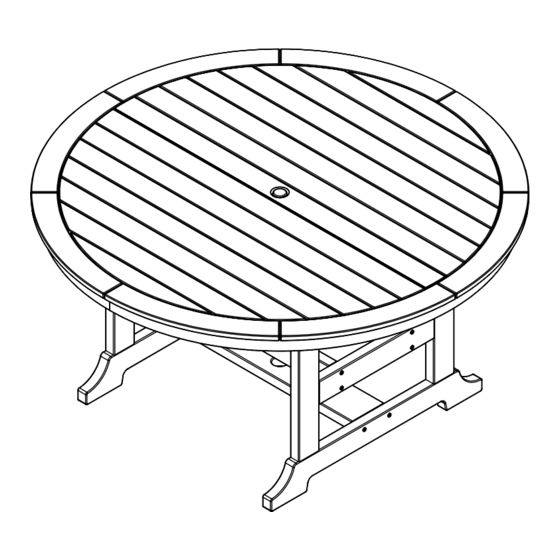

60" Dining Table.
MODEL No: 30-1
12x
8x
0-4354
0-5285
1/4 x2.5"
1/4 -20x2.5"
1x
30 Top
