Sister Bay MCUS-B Assembly Instructions

(8)
A
(9)
B
(2)
C
SHOCK ABSORBER
You will also need a phillips-head screwdriver
( not included )
Assembly Instructions
1- Attach part ( E ), Left panel, and part ( F ), Right panel, to part (D),
Back panel as shown in figure 1, see detail 1 using ( 4 ) of screws ( A )
2 on each side, tighten screws using an allen wrench . For proper
positioning on ( E ) Left panel and ( F ) Right panel make sure that
shock bracket is located on the inside of the box see detail 2.
( Detail 1 )
A
RIGHT PANEL
2 - Slide part (G) Base, into assembly from figure 1, as shown in Figure 2, see detail 3 and center inside assembly.
Hardware and Parts
2.50
1.25
E
LEFT PANEL
Figure 1
(RECESS FOR HINGES)
F
Figure 2
( Shock Bracket )
Assembly Instructions
ALLEN WRENCH
( included )
E
LEFT PANEL
G
BASE

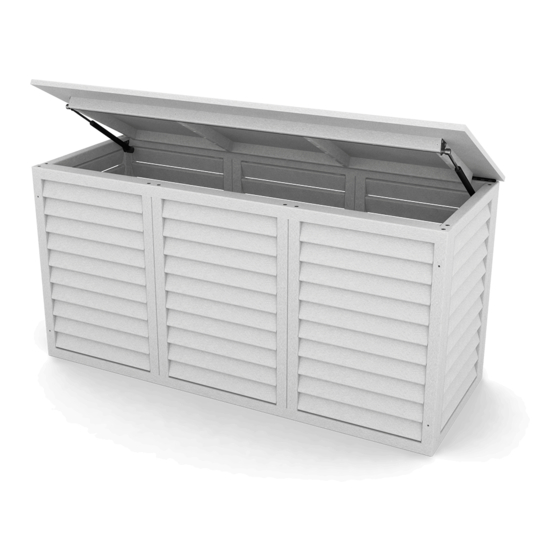

Item No: MCUS-B
Cushion Box
COVER
I
D
H
G
BASE
Do not use
any hand drill
on this product
Inside view
Shock Bracket
must be on the
inside
( Detail 2 )
D
BACK PANEL
( Detail 3 )
BACK PANEL
RIGHT PANEL
F
FRONT PANEL
