Sister Bay Hudson MHUD-DT28 Assembly Instructions

(8)
A
(12)
B
(8)
B1
(8)
C
(9)
D
(4)
E
ALLEN WRENCH
( included )
1- After laying out all components, locate Leg Assembly 1 ( H ) and Leg Assembly 2 ( I ) and cross them over each
other as shown in the graphic below. Secure them in place using a Support Bracket ( L ) and (4) 1-1/2 Screws ( D ).
Tighten the screw until the top is flush with the top of the Support Bracket.
Carefully turn the legs over and attach the other Support Bracket ( L ). Tighten the 4 screws ( D ) until they are flush
with the top of the Support Bracket.
( Leg Assembly 1)
( Leg Assembly 2)

Hardware and Parts

2.75
1.50
SOCKET HEAD WRENCH
PHILLIPS SCREWDRIVER
( not included )
( not included )
H
I
Assembly Instructions
Item No: MHUD-DT28

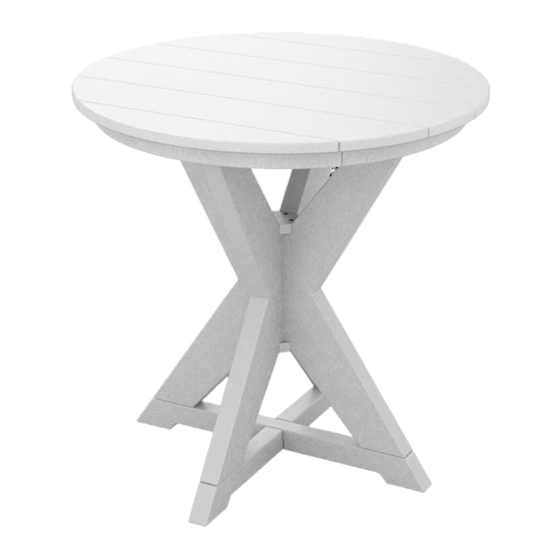

Hudson 28" Dining Table
Item No: MHUD-DT28B
Hudson 28" Bar Table
H
( Leg Assembly 1)
4.00
WRENCH
( not included )

Figure 1

( Support Bracket )
Item No: MHUD-DT30
Hudson 30" Dining Table
Item No: MHUD-DT30B
Hudson 30" Bar Table
J
( Foot 1 )
D
L
G
( Top )
( Leg Assembly 2 )
I
L
( Support
Bracket )
K
( Foot 2 )
Do not use
any hand drill
on this product
