WARNING:
Using power tools may result in overtourquing screws causing threads to strip.
We are not responsible for replacements on parts where powertools where used.
CARE & MAINTENANCE: To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about
2
Sister Bay Furniture Cleaner.Please contact our Customer Service Department for assembly assistance, questions or replacement parts at (800) 505-7926 or email
support@sisterbayfurniture.com. Our Customer Service Department is available Monday-Friday 8:30 a.m. to 4:30 P.m. CST
HDPE
HARDWARE:
8x
8x
16x
0-3016
0-2980
0-3017
1x
R2 SQ Bit
7/16" Socket Head Wrench
(Not Included)
7/16" Wrench
(Not Included)
PARTS:
1x
28 Umbrella
Puck
1x
1x
28-1 Leg
28 Ring
Asm B
Laguna
Collection

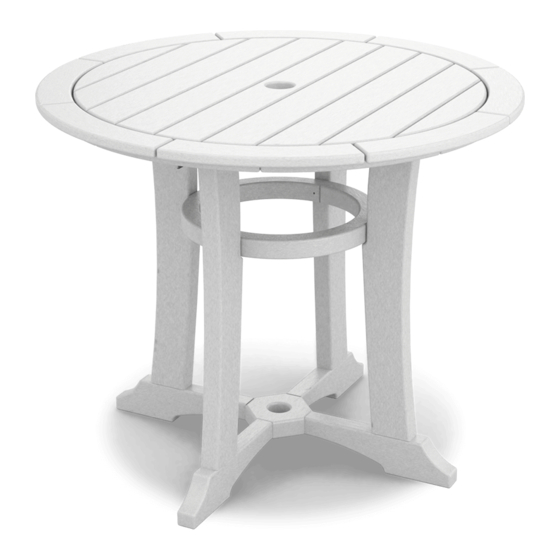

36" Dining Table.
MODEL No: 28-1
4x
0-5222
#8x1.5"
4x
0-5224
#8x2.5"
8x
0-5285
1/4 -20x2.5"
1x
1x
28-1 Leg
28 Top
Asm A
