Sister Bay MGLE-PR Assembly Instructions

(8)
A
(2)
B
(4)
B1
(12)
C
(8)
D
(8)
E
(2)
F
(8)
G
You will also need a phillips-head screwdriver
( not included )
Assembly Instructions

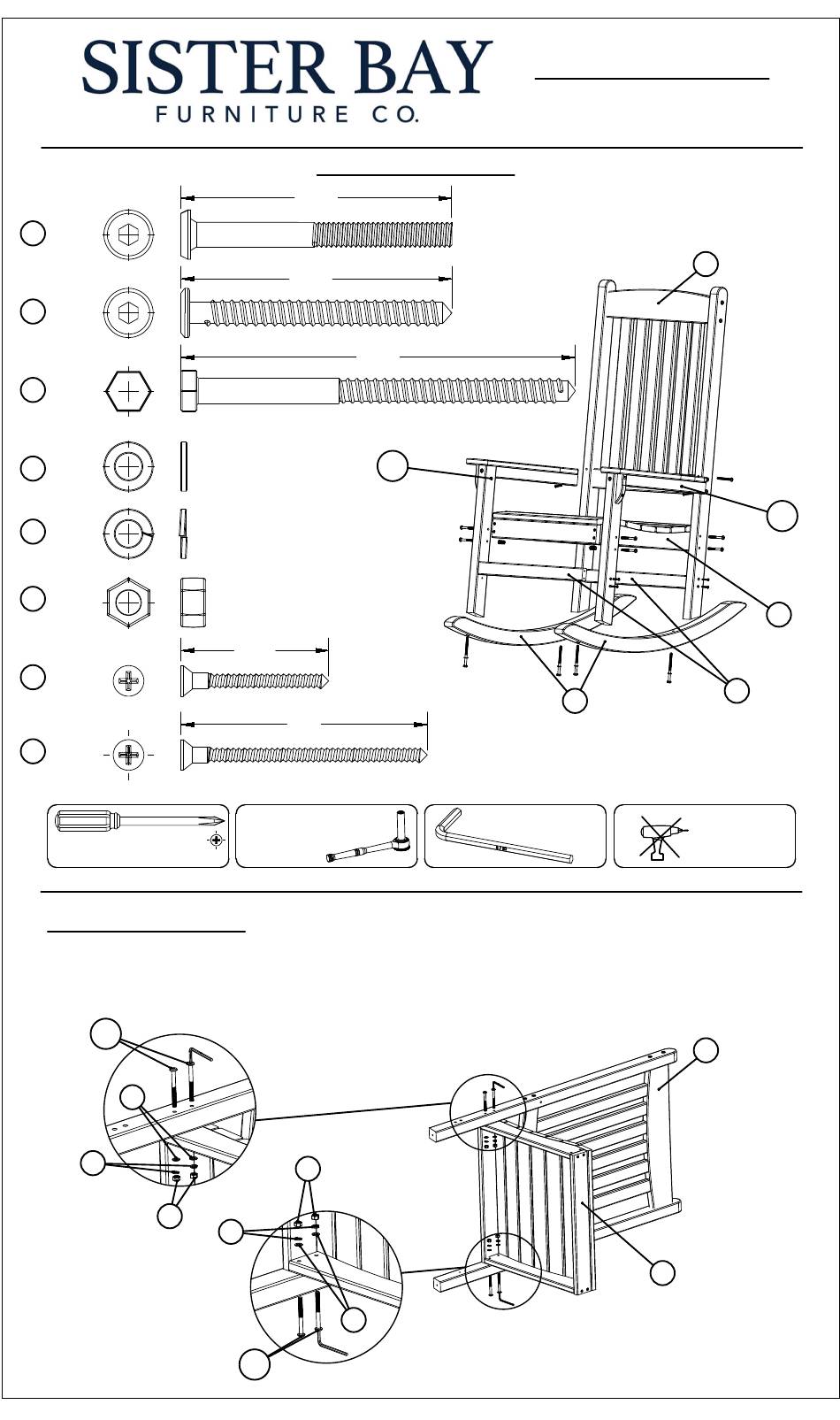

1 - Attach part ( H ), Seat Back Assembly, to part ( I ), Seat Bottom Assembly, as shown in figure 1
see detail 1 and detail 2 using ( 4 ) of joint connector bolts ( A ) , 2 on each side, ( 4 ) washers ( C ),
( 4 ) Lock washers (D ) and ( 4 ) hex nuts ( E ), tighten bolts using an Allen Wrench.
A
C
D
E
( Detail 2 )

Hardware and Parts

2.75
2.75
4.00
(Right Arm Leg)
Assembly
1.50
2.0
You will need a socket head wrench
( not included )

Figure 1

( Detail 1 )
E
D
C
A
Assembly Instructions
J
Base Rocker
ALLEN WRENCH
( included )
Item No: MGLE-PR
Glendale Porch Rocker
( Seat Back Assembly )
H
(Left Arm Leg)
( Seat Bottom)
M
L
(FRONT & BACK)
BOTTOM BRACE
Do not use
any hand drill
on this product
( Seat Back Assembly )
H
I
( Seat Bottom)
Assembly
Assembly
K
I
Assembly
