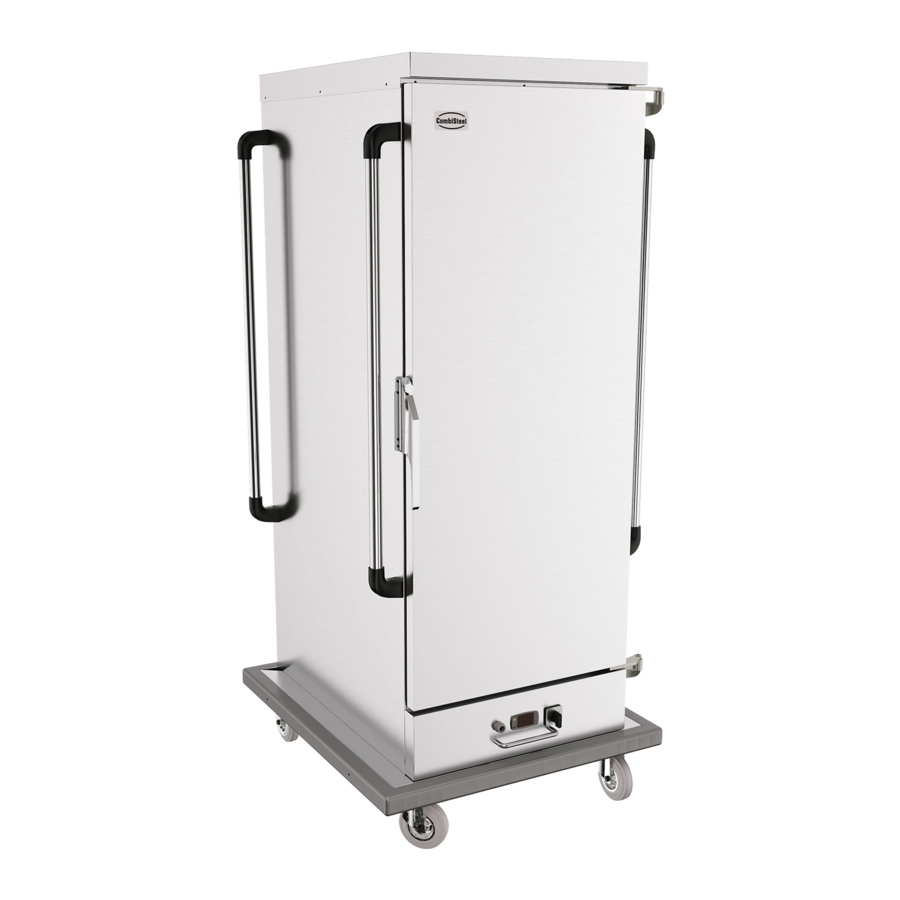

  • Page 1 BANQUET TROLLEY (ELECTRICAL) INSTRUCTION AND MAINTENANCE MANUAL...
  • Page 2 DESCRIPTION Our dear customer, Your preferred COMBISTEEL is nature and technology friendly. We thank you for your choice. COMBISTEEL has been produced with the understanding of "Total Quality" in modern production facilities. Important Safety Information Carefully read this guide and keep it for future review.
  • Page 3  If the device will be used in a commercial kitchen, apply a correct grounding system. Here, consider DIN VDE D100 Article 540.  The device must be grounded. - Grounding point is marked with " ". USAGE AND MAINTENANCE INSTRUCTIONS WARNINGS IMPORTANT: make sure the electrical connection is cut off before attempting to do any...
  • Page 4 7178.1105 MODEL 7178.1100 1310 Width (A) Dept (B) 1890 1890 1660 Hight (C) Power 230V N PE 230V N PE 230V N PE Electrical Inlet mm² 3X1,5 3X 1,5 3X 1,5 Cable Sections 18 pcs Gn2/1x65 36 pcs Gn2/1x65 15 pcs Gn2/1x65...
  • Page 5 1- On-off button 2- Panel handle 3- Digital display 4- Plug 5- Set button 6- Heat increase 7- Heat decrease 7178.1105 7178.1105...
  • Page 6 1310 1490 7178.1100...
  • Page 7 – 230V AC N PE 2000W 7178.1105 – 230V AC N PE 2000W 7178.1100 EXPLANATION X - TERMİNAL BOARD Q1- CUT-OFF SWITCH D1- DIGITAL CONTROL (XR20CX) R1- HEATING ELEMENT F1- FAN Supply 12 11...
  • Page 8 CORRECTIVE \PREVENTIVE ACTIVE FORM DETECTION TYPE OPTIMIZATION REQUEST/ CUSTOMER CUSTOMER COMPLAINT DESCRIPTION NAME PRODUCT NAME: DETECTED ( Name , Appellation) DATE: SIGN: PROBLEM DESCRIPTION: SOLUTION PROPOSAL: EVALUATION: APPROVERS Note: If required, you can send it to our company by viewing the form above or by post.
