Mode

The WMC01 can operate in one of two modes - analogue or IP. Both modes provide the same features.
In analogue mode: a standard VIPEDIA-12 audio input provides the necessary power, communications and audio link. In
this mode, a direct CAT5 cable is required between the WMC01 and VIPEDIA-12.
In IP mode, the communications and audio link between the VIPEDIA-12 and WMC01 is over IP, whilst power is supplied
party PoE. The unit can either be connected directly to one of VIPEDIA-12's Ethernet ports, or through an
rd
by external/3
existing network.
3.2

Power

Set the power jumpers on the rear side of the WMC01 for to the selected mode (analogue or IP) as shown in Figure 1
below.

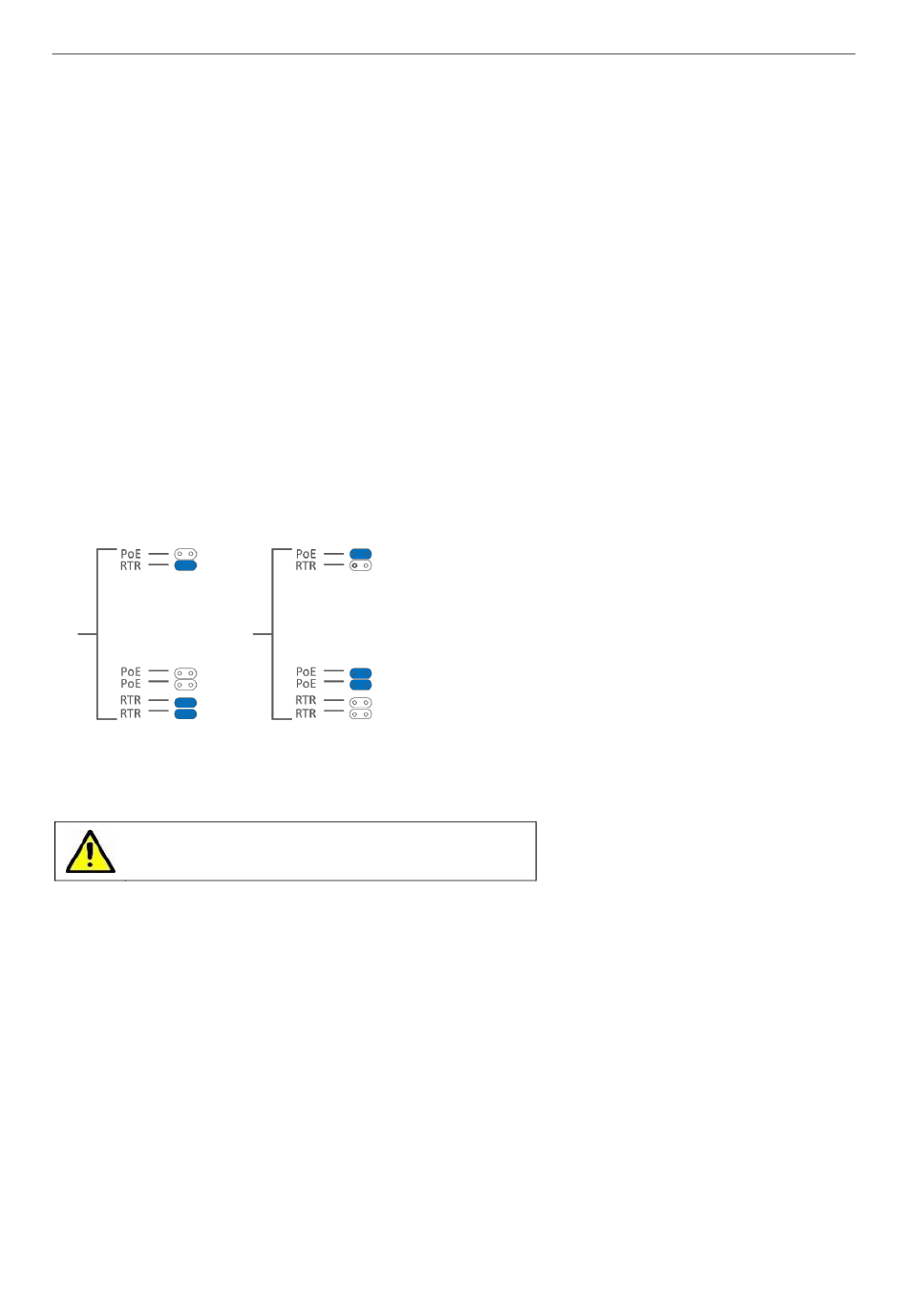

Figure 1 - Power Jumper Settings
Analogue Mode
Jumper Settings
1) Disconnect power before changing link settings.
2) PoE and RTR links must NOT be fitted simultaneously
WMC01 – User's Manual
IP/PoE Mode
Jumper Settings
