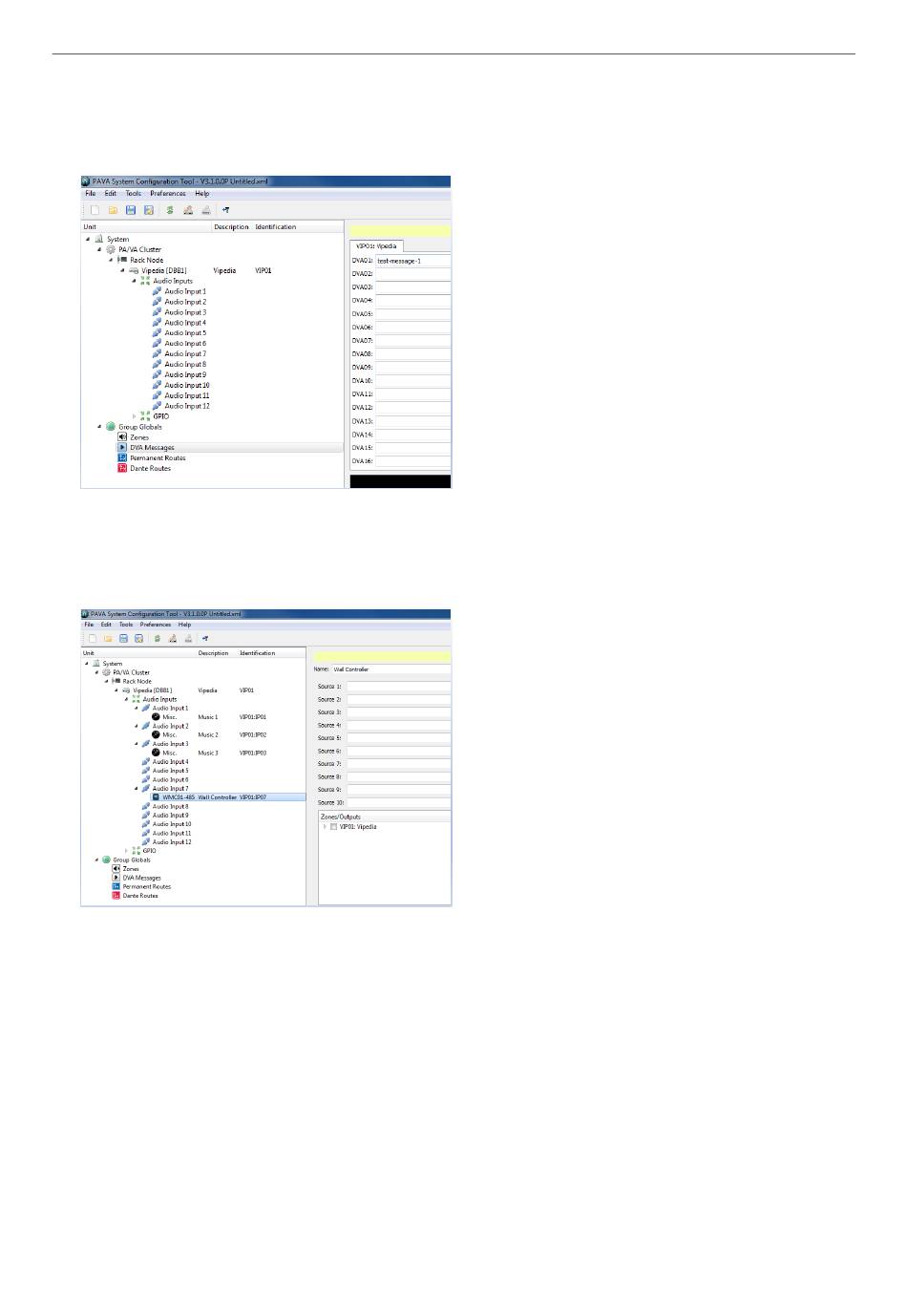

4. Name DVA message files in 'System Globals' which will be controlled by the WMC01. Note: DVA message will always
be configured to 'play to end' when triggered from a WMC01.
Globals -> DVA Messages
For IP mode, please now go to section 4b.
5. Add WMC01-485 to an unused audio input. Note: this audio input will be connected to the local 3.5mm jack socket on
the front panel of the WMC01 and will be available in the list of selectable inputs if required.
Audio Input X -> Add -> WMC01-485
6. Select the WMC01 device in the tree. For each source which the WMC will select, change the "Source" dropdown to
the required input and enter a name. The name entered will be shown in the WMC01 LCD user interface.
WMC01 – User's Manual
U-0664-0833-WMC_User_Manual.docx – Issue: 02 complete, approved
Page 10 of 20
