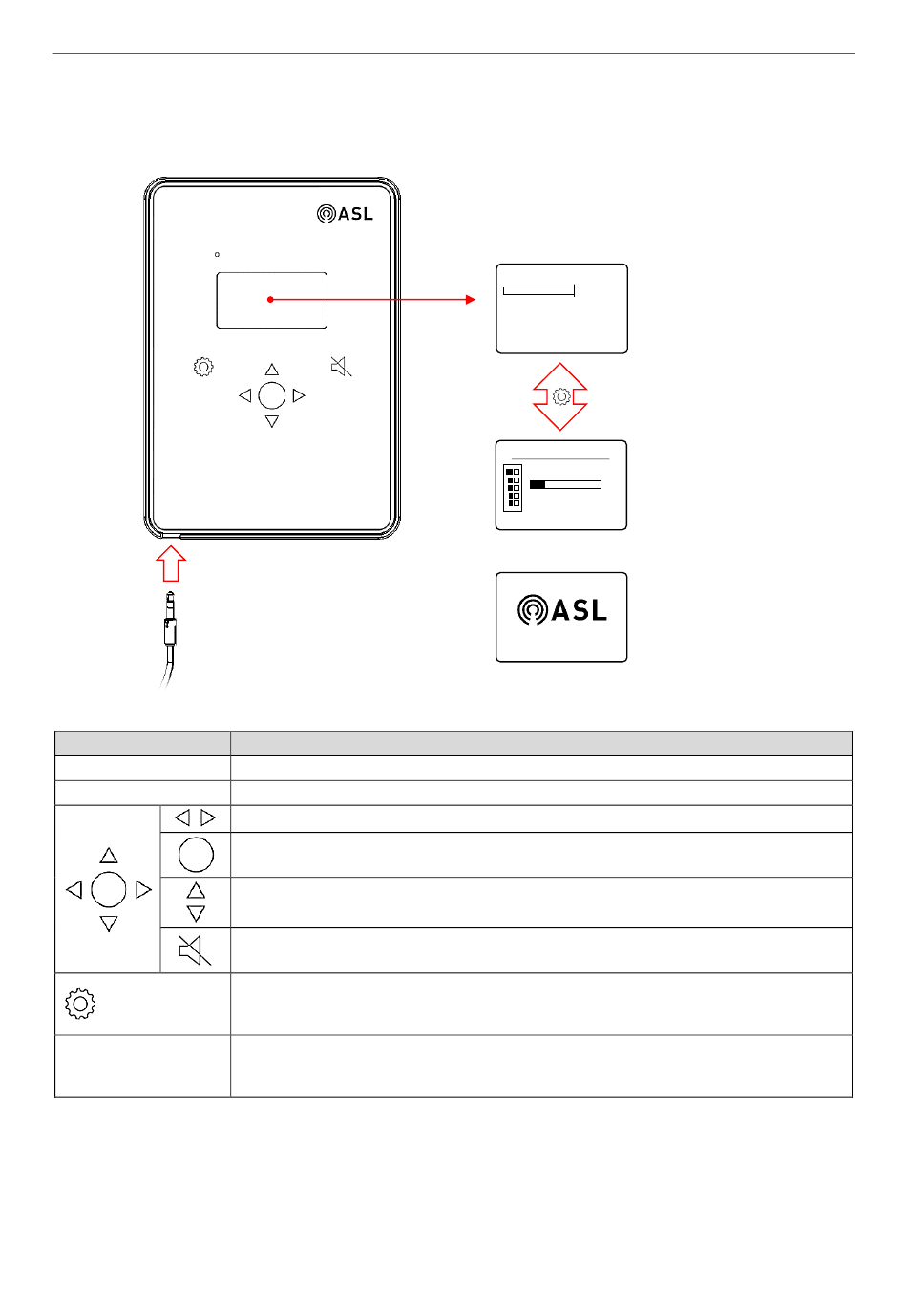

Indications and Controls

4
MUSIC INPUT
Indicator/Control
Green LED
LCD display
3.5 mm socket (TRS)
WMC01 – User's Manual
Description
Lit if the unit is receiving DC power.
Backlit transflective graphic display for information, configuration and operation.
Scrolls list of audio sources. Selection is by timeout (5 seconds).
Turns current selection off/on.
Adjusts the volume up/down (if volume control is enabled by configuration).
Note: Apply clockwise/anti-clockwise strokes for faster volume adjustment.
Applies maximum volume attenuation (if volume control is enabled by configuration).
Note: Maximum volume attenuation is cancelled when audio source is changed.
Operation mode: switches between SELECT SOURCE and LOCAL MUSIC IP tabs.
Configuration mode: switches between operation and configuration menus. Not available to
users, for commissioning and/or maintenance only.
Music input for connection of local audio device such as phone or music player.
Local input level can be adjusted in the LOCAL MUSIC IP tab (see cogs button above) using
the up/down arrows (0 dB - 50 dB).
U-0664-0833-WMC_User_Manual.docx – Issue: 02 complete, approved
SELECT SOURCE..
0dB
Select Source
⊲
Music 1
LOCAL MUSIC IP
12dB
'o' FOR OFF
Please wait
Page 15 of 20
Standard operation menu
(Bargraph indicates analogue
⊳
source level.)
Local music input volume
adjustment tab
(Left-side bargraph indicates
local music input level.)
Indicates no comms to the host
VIPEDIA-12.
See section 5 –
"Troubleshooting" for more
information
