Introduction Du Type Facilité de vitesse
Menu d'initialisation de "SpeedEasy" dans l'unité centrale.
S
lectionnez la rubrique <SpeedEasy CPU SETUP> dans le menu principal et
è
entrez le sous-menu:

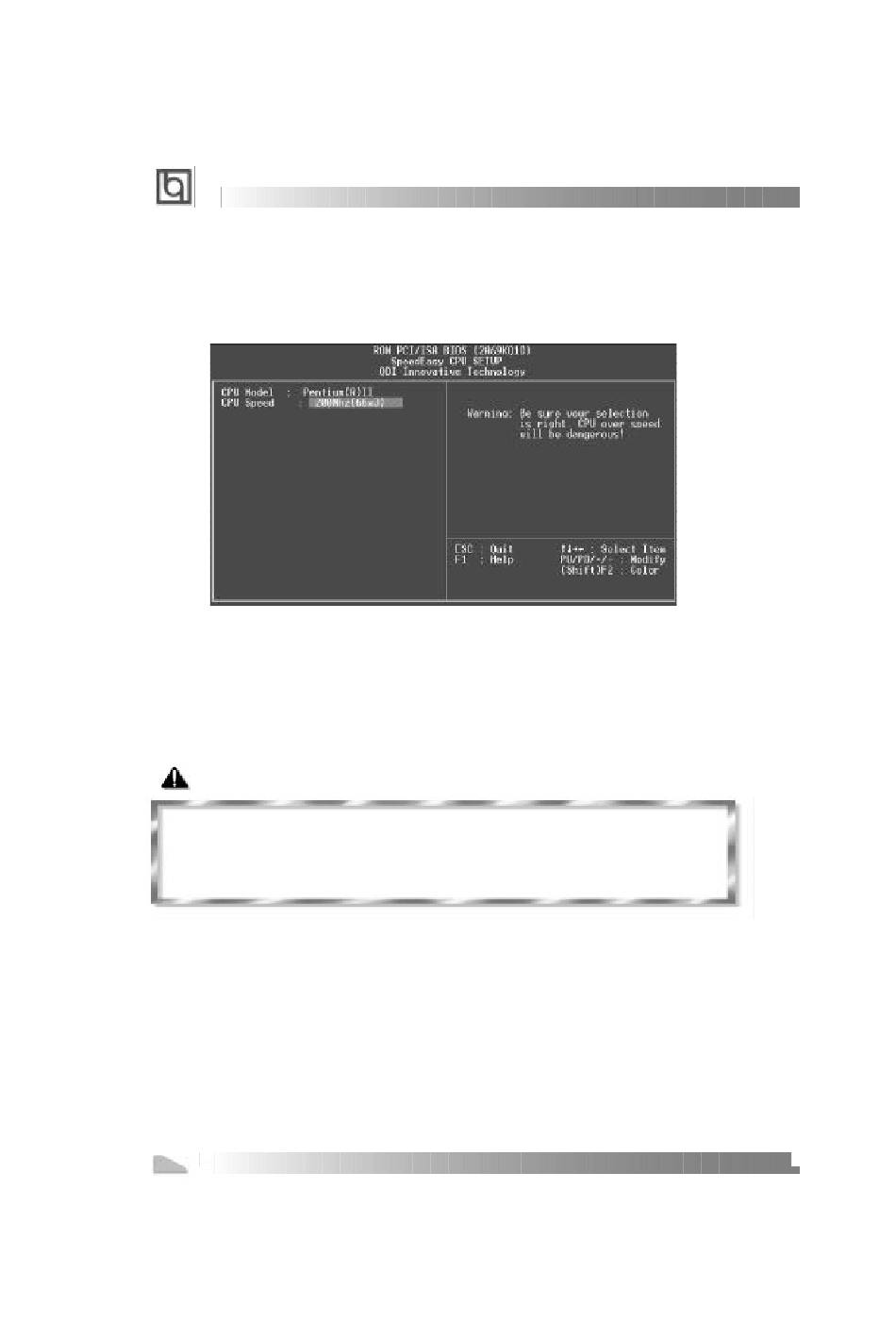

Figure-1 Menu d' nitialisation de"SpeedEasy"dansl' unité centrale
BIOS fournira un jeu de valeurs de base pour votre s‚lection de CPU au lieu de
positions cavaliers. Vous pouvez s‚lectionner manuellement la vitesse de CPU dans
l'affichage du menu "SpeedEasy CPU SETUP ".
Avertissement:
Ne vous laissez pas aller à installer une fr‚uence à l' unité centrale sup‚ ieure à sa
fr‚uence de travail. Sinon nous d‚linerons toutes responsabilit‚s en ce qui concerne
les d‚ gƒ s qui en r‚ sulteraient.
8
Manual for Advance 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for QDI Advance 5
Summary of Contents for QDI Advance 5
- Page 1 Ne vous laissez pas aller à installer une fr‚uence à l’ unité centrale sup‚ ieure à sa fr‚uence de travail. Sinon nous d‚linerons toutes responsabilit‚s en ce qui concerne les d‚ gƒ s qui en r‚ sulteraient. Manual for Advance 5...
-
Page 2: Procedura Di Installazione
(Microprocessore da 200MHz con velocità di “host bus” da 100MHz e microprocessore da 133MHz con velocità di “host bus” da 66MHz). 5. Salvate e uscite dal Setup BIOS, e fate ripartire il computer. *CPU= microprocessore Manual for Advance 5... - Page 3 (dell’ accoppiamento). Potete selezionare manualmente la velocità del microprocessore sulla schermata “SpeedEasy CPU SETUP”. Avvertenza: non dovete regolare la frequenza del microprocessore pi— alta di quella predisposa, altrimenti la casa produttrice non si farà carico di eventuali danni al micorprocessore. Manual for Advance 5...
- Page 4 5. ´ æ ´ ¢ É è ¶ ¨ Ö µ £ ¬Í Ë ³ ö BIOS£ ¬Ï µ Í ³ ¾ Í ¿ É Ò Ô ° ´ Ä ã É è ¶ ¨ µ Ä Ë Ù ¶ È Ô Ë Ð Ð Á Ë ¡ £ Manual for Advance 5...
- Page 5 ¾ ¹ « Ë ¾ ½ « ² » » á ¸ º Ô ð Ó É ´ Ë ¶ ø ² ú É ú µ Ä È Î º Î Ë ð » Ù ¡ £ Manual for Advance 5...
- Page 6 5. ´ æ ´ ¢ É è ¶ ¨ Ö µ £ ¬ Í Ë ³ ö BIOS£ ¬ Ï µ Í ³ ¾ Í ¿ É Ò Ô ° ´ Ä ã É è ¶ ¨ µ Ä Ë Ù ¶ È Ô Ë Ð Ð Á Ë ¡ £ Manual for Advance 5...
- Page 7 Ç ë Î ð ½ « Ö Ð Ñ ë ´ ¦ À í Æ ÷ µ Ä Æ µ Â Ê µ ÷ ½ Ú Ö Á ¸ ß ì ¶ Æ ä Õ ý ³ £ ¹ ¤ × ÷ Æ µ Â Ê £ ¬ · ñ Ô ò ± ¾ ¹ « Ë ¾ ½ « ² » » á ¸ º Ô ð Ó É ´ Ë ¶ ø ² ú É ú µ Ä È Î º Î Ë ð » Ù ¡ £ Manual for Advance 5...
-
Page 8: Key Features
Introduction Overview The Advance 5 green mainboard utilizes the Apollo Pro-Plus chip set and provides a highly integrated solution for fully compatible, high performance and cost-effective PC/ATX plat- form. It provides 66MHz and 100MHz system bus support for all Intel Pentium ®... -
Page 9: On-Board Ide
(manufacturing option) On-board MAXIM1617 monitors the CPU temperature. (manufacturing option) ® Provides management application such as ManageEasy and LDCM(LANDesk Client Manager). (manufacturing option) Supports keyboard password power-on function. System status resumes after AC power failure. Manual for Advance 5... -
Page 10: Green Function
Supports IDE CD-ROM or SCSI boot up. Green function Supports ACPI (Advanced Configuration and Power Interface) and ODPM (OS Directed Power Management). Supports three green modes: Doze, Standby and Suspend. Expansion slots 3 ISA slots and 4 PCI slots. 1 AGP Slot. Manual for Advance 5... - Page 11 -- This page is intentionally left blank -- Manual for Advance 5...
-
Page 12: Installation Instructions
You can enable/disable them and choose the IRQ or I/O address in “Integrated Peripherals” from AWARD BIOS SETUP. Parallel Port UART2 UART1 Manual for Advance 5... -
Page 13: Atx Power Supply Connector & Power Switch (Power)
When the system is in soft power-down status, the LED glows dimly. When the system is powered up, the LED is on. The connector has an orientation. Key-Lock Connector (KEY_L) The connector can be connected to the keyboard lock switch on the case for locking the keyboard. Manual for Advance 5... -
Page 14: Hardware Green Connector (Sleep)
Infrared Header (IrDA) This connector supports wireless transmitting and receiving. If using this function, set “Serial Port 2 Mode” to IrDA or ASKIR and configure the settings from the “INTEGRATED PERIPHERALS” section of the BIOS. IRRX IRTX Manual for Advance 5... -
Page 15: Fan Connector (Cpufan, Chsfan)
Resume” as Enabled in the “POWER MANAGEMENT SETUP” section of the BIOS. Save & exit, then boot the operating system once to make sure this function takes effect. Signal for waking up (active low) +5V standby Manual for Advance 5... -
Page 16: Chassis Security Switch (Chssec)
You can either get this information from “System Monitor” of the BIOS (optional) or QDI ManageEasy software. Indicate signal Sound Connector (PC-PCI) This connector is for the usage of PCI sound card. -
Page 17: Jumper Settings
100MHz FSB processor, setting CPU FSB as 100MHz enables the system to achieve higher performance. Please note, whether or not your system can be overclocked depends on your processor’ s capability. We do not guarantee the overclocking system to be stable. Manual for Advance 5... -
Page 18: Memory Configuration
DRAMs installed. Possible SDRAM DIMM memory sizes are 8MB, 16MB, 32MB, 64MB, 128MB in each DIMM socket. Possible EDO DIMM memory sizes are 8MB, 16MB, 32MB, 64MB, 128MB, 256MB in each DIMM socket. Manual for Advance 5... - Page 19 -- This page is intentionally left blank -- Manual for Advance 5...
