MR RESISTOR
Dimmer for the manual or radio control of
resistive, inductive and capacitive loads.
Minimum power 25W
Maximum power 250W
Resisitive load
Halogen and incandescence lamps
230V: max 250W
Inductive load: max 250VA
Capacitive load:
electronic transformers: max 250VA
Not for fluorescent lamps.

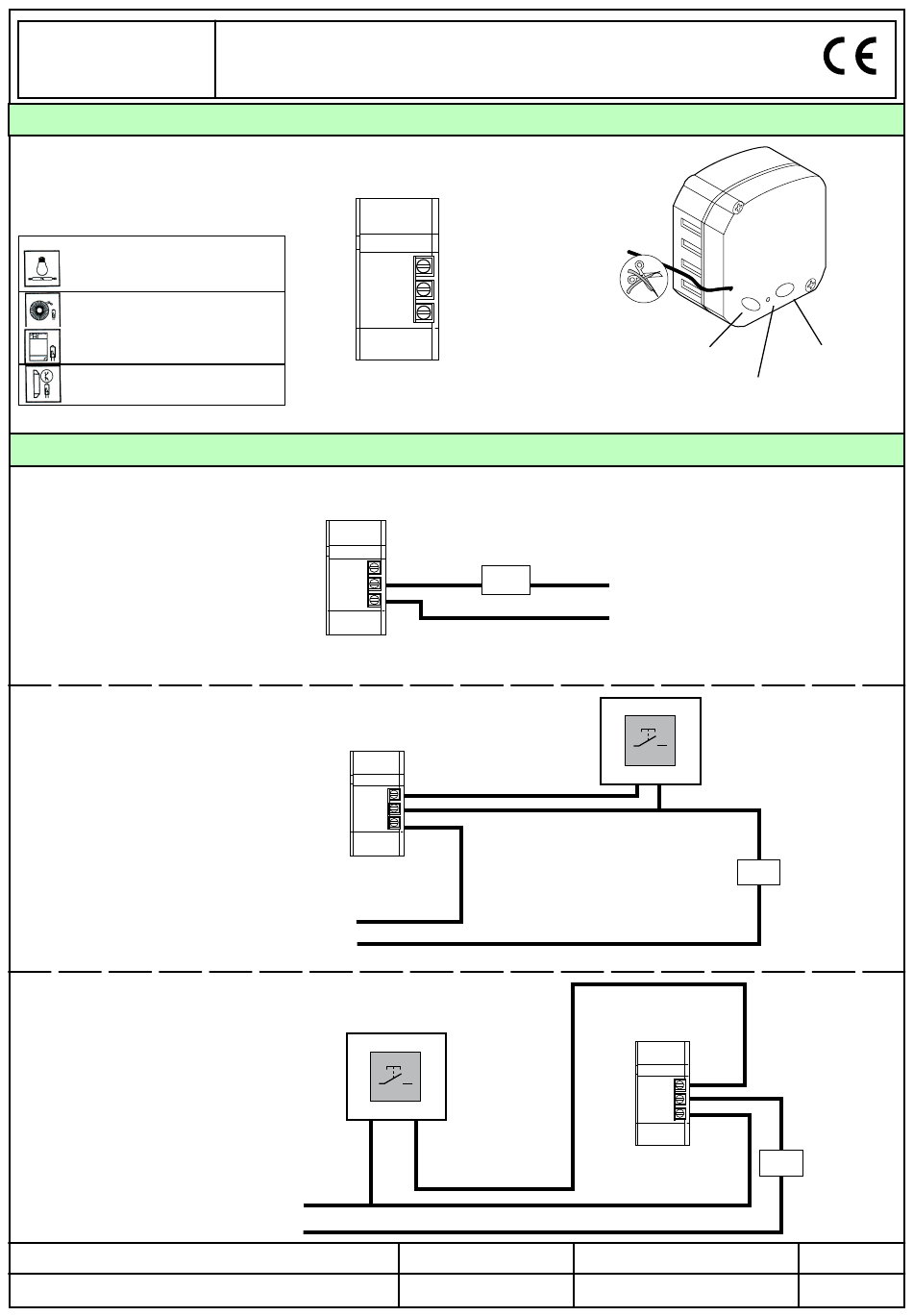

1- CONNECTIONS
Mode 1:
connection without
mechanical push button
Mode 2:
connection with mechanical
push button connected to the load
P
L
Mode 3:
connection with mechanical
push button connected to the
power supply (phase)
power supply phase
L
power supply neutral
Code Number:
WISESCENE OCTO
DIMMER RADIO RECEIVER FOR R, L, C LOADS
N
power supply phase
power supply neutral
P
N
push-button input
load output
power supply
load or
dimmable
transformer
RLC
LOAD
n.o. mechanical
push button
Model number
T474.02
Teleco Automation
1
P2 push-button
Led
power supply neutral
power supply phase
n.o. mechanical
push button
RLC
LOAD
RLC
LOAD
P1 push-button
load or
dimmable
transformer
load or
dimmable
transformer
29/10/2018
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TELECO AUTOMATION T474.02
Summary of Contents for TELECO AUTOMATION T474.02
- Page 1 Mode 3: connection with mechanical push button connected to the n.o. mechanical power supply (phase) push button load or dimmable LOAD transformer power supply phase power supply neutral Code Number: Model number T474.02 Teleco Automation 29/10/2018 WISESCENE OCTO...
- Page 2 2- To program the minimum level of brightness This function allows to set the minimum level of brightness that can be reached by the dimmable load. 1- Regulate the minim brightness to the level desired 2- Press the push button P2 once and hold it down. The led flashes and the buzzer makes a beep each time.
- Page 3 5- TRANSMITTER MEMORIZATION ATTENTION: The first transmitter can only be memorized using the receiver. 5.1- To memorise 7-channel transmitters - Complete In the first 4 push buttons it is possible to memorise 4 different light intensity values. With the push buttons CH5 and CH6 it is possible to adjust the light intensity and with push button CH7 the light will turned off.
- Page 4 5.3- To memorise one transmitter push-button with ON function The push-button memorised with ON function turns on the light. transmitter 3 times and hold 1- Press the push button P1 three times 2- During the sound, press the push-button and hold it down, the led flashes and the which has to be memorised;...
- Page 5 6- To change the level of light intensity of the 4 push button of the 7-channel transmitter from receiver This procedure allows to modify the level of brightness set in the first 4 channels of a 7-channel transmitter through the external mechanical push buttons of the receiver. The procedure can also be used when a transmitter is memorized in more than one receiver, varying in every single receiver the value of light (without setting the identifying number in every receiver).
- Page 6 Case 2: (more receivers have memorised the same 7-channel transmitter) In the case that several receivers have the same 7-channel transmitter memorised, and each receiver must have a different value of light intensity, proceed with the programming of the identification number of the receiver. Once the identification number is programmed it is possible to select the desired receiver by means of the push buttons.
- Page 7 7- To copy a function of transmitter push-button to a new transmitter memorized memorized new transmitter transmitter transmitter 1- Press the button P3 located 2- Within 5 seconds press a push 3- During the sound press inside the already memorized button of the already memorized the push-button of the new transmitter.
- Page 8 The wires must be fixed by means of an additional fastening nearby the terminals; this fastening has to be done by qualified technical personnel during the installation phase. The manufacturer, Teleco Automation s.r.l, declares that the type of radio equipment is compliant with Directive 2014/53/EU. The full text of the EU compliance declaration is available at the following Internet address: www.telecoautomation.com/ce.
