Installation
DWNLD RESET
USB
I2C
COM1
Power
ref1 d1+ d1-
AO1 AO2 AO3
AO4
0V
24V

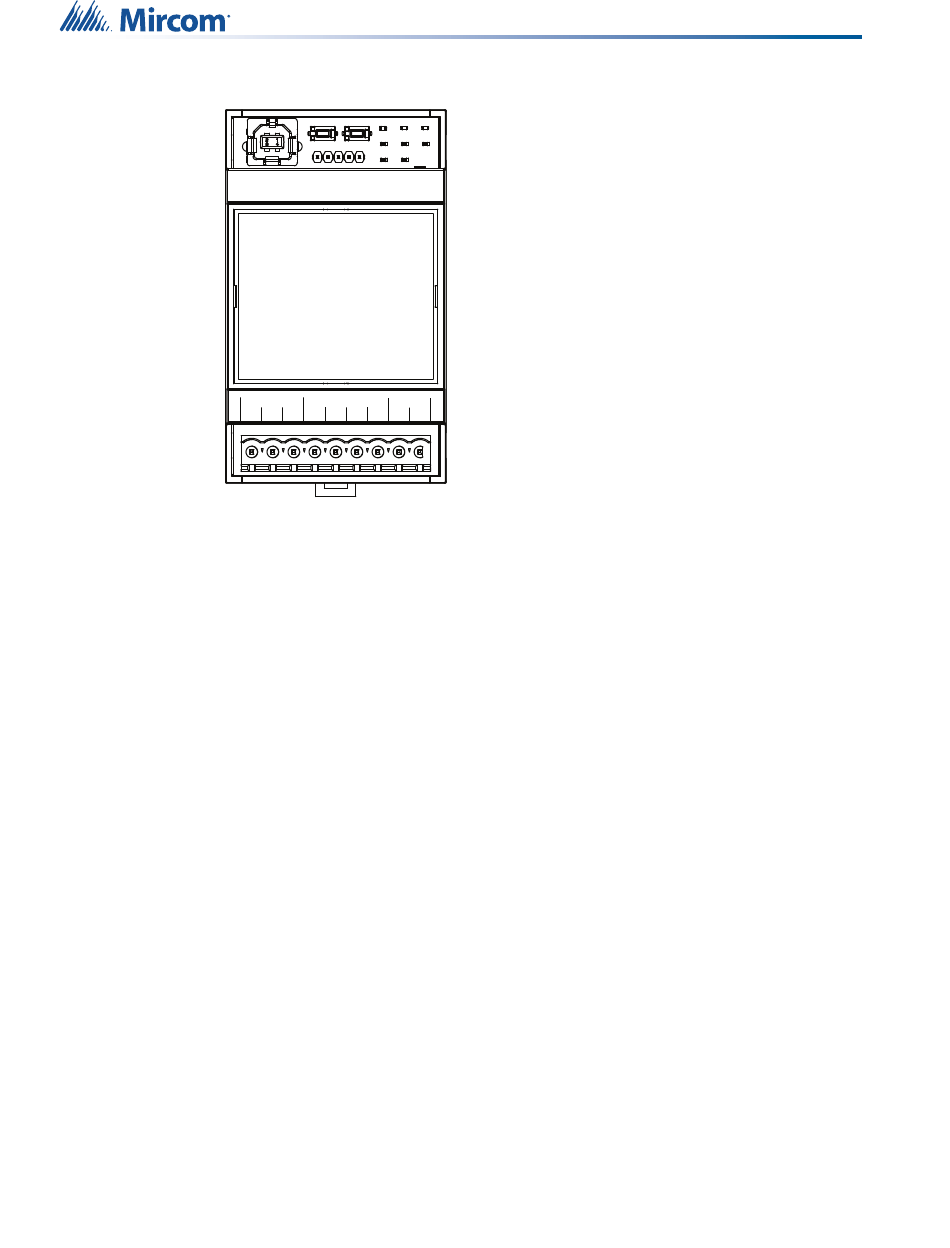

Figure 14 OpenBAS-HV-NX4AO mounting orientation
To remove the enclosure from the DIN rail
•
With your hands or with a small flathead screwdriver, pull the mounting clip to release
the enclosure from the DIN rail, and carefully pull the enclosure off the DIN rail.
